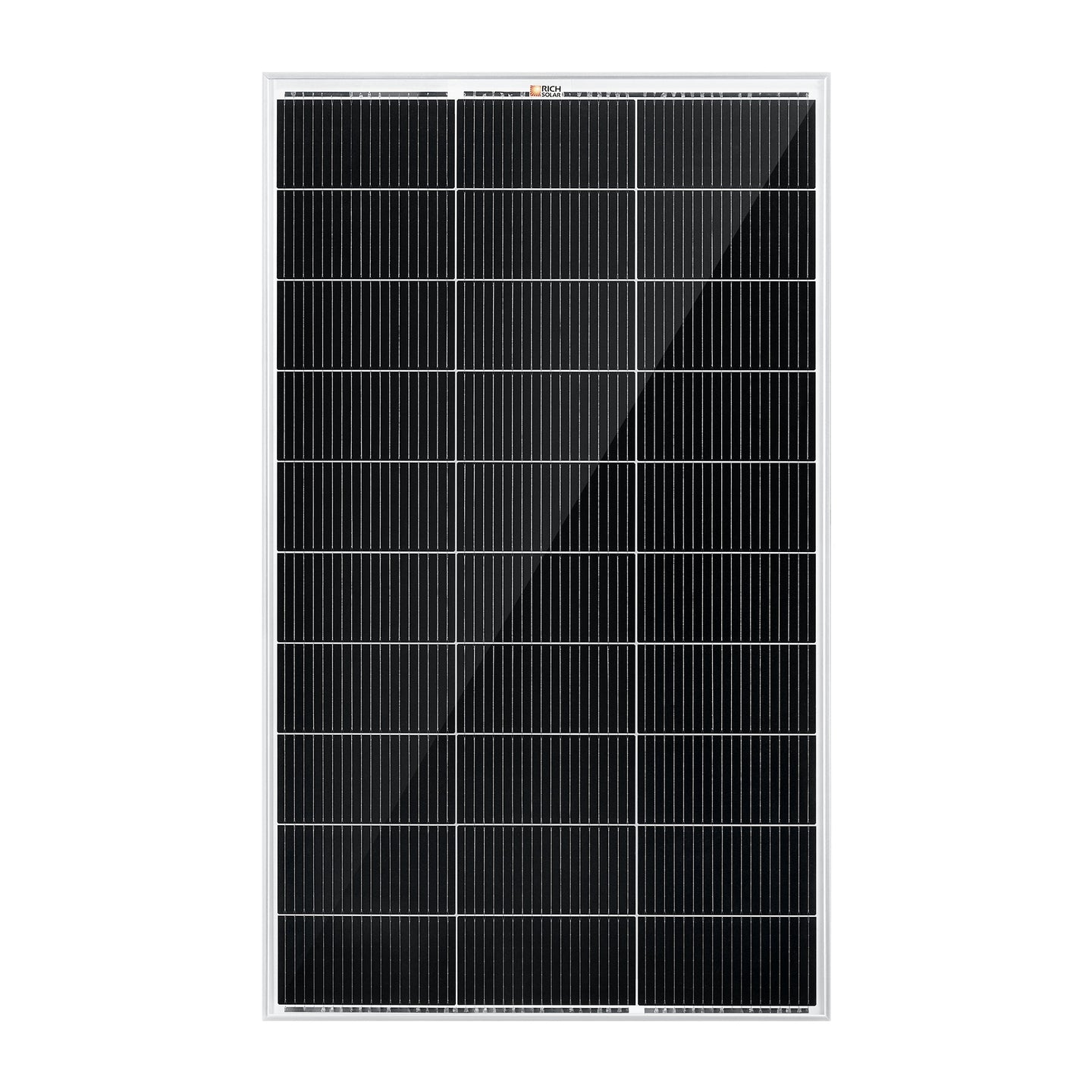

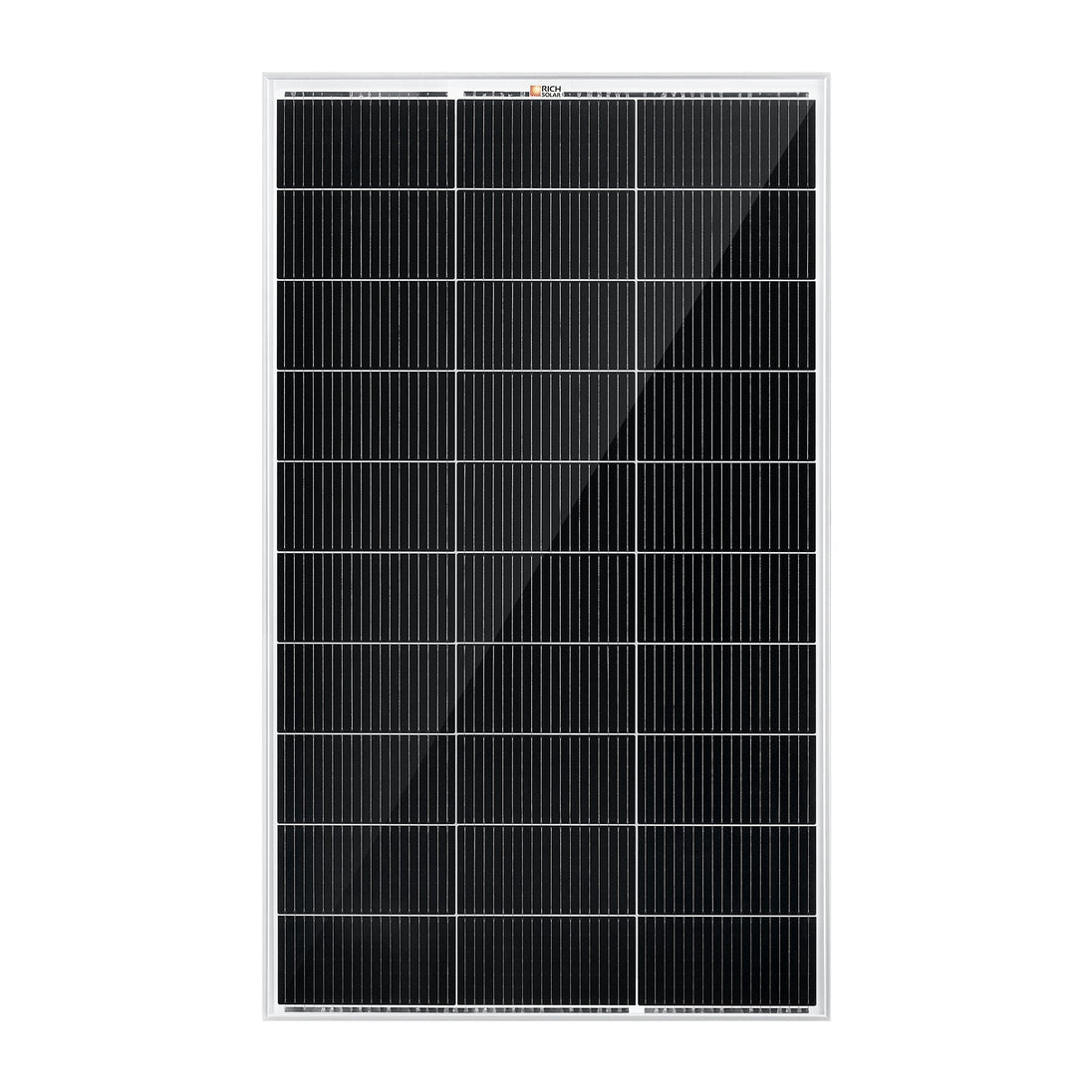

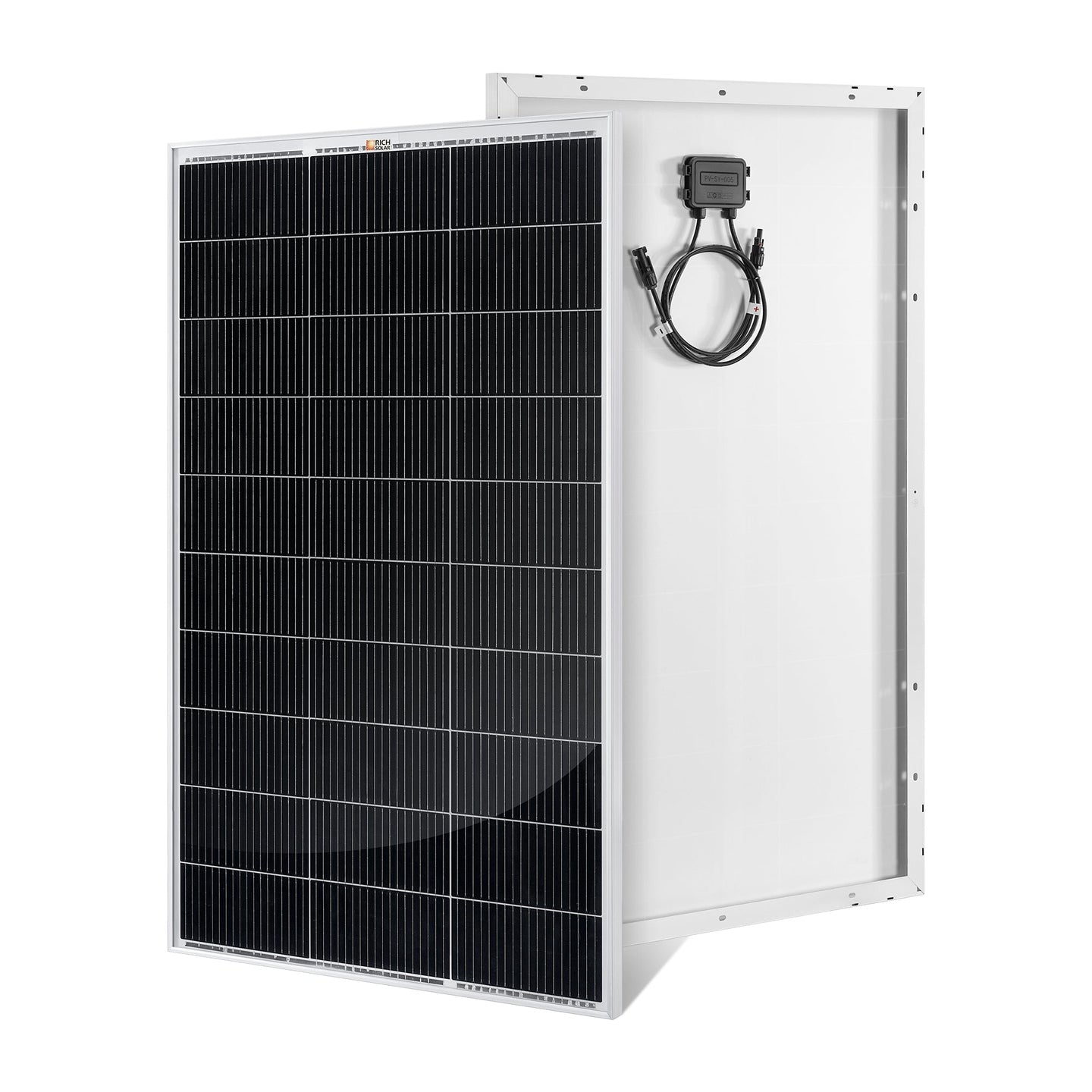

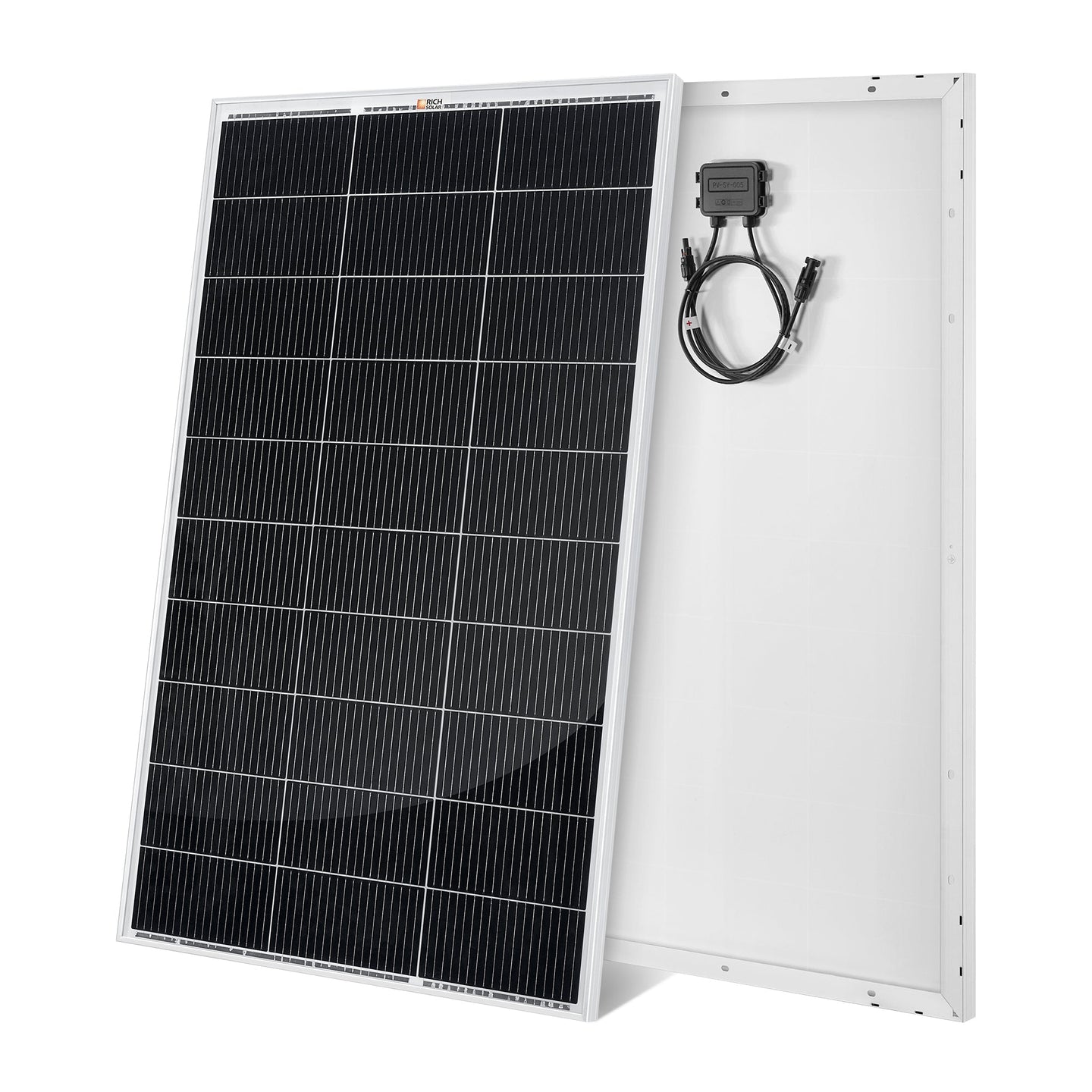

MEGA 150 Solar Panel

Overview

Combining 24.8% efficiency and a compact design, the MEGA 150 solar panel provides optimized solar energy for off-grid applications. Built with lightweight anodized aluminum frames and an 18-busbar solar cell configuration for durability and high efficiency for optimized performance.

Benefits

  • Compact, high-efficiency solar energy for off-grid use.
  • Durable construction with lightweight anodized aluminum frames.
  • Excellent low-light performance on cloudy days, mornings, and evenings.
  • Plug-and-play junction box simplifies setup.
  • Weather-ready and rugged for harsh environments.
  • Easy wiring using industry-standard quick-connect cables for series or parallel configurations.

Features

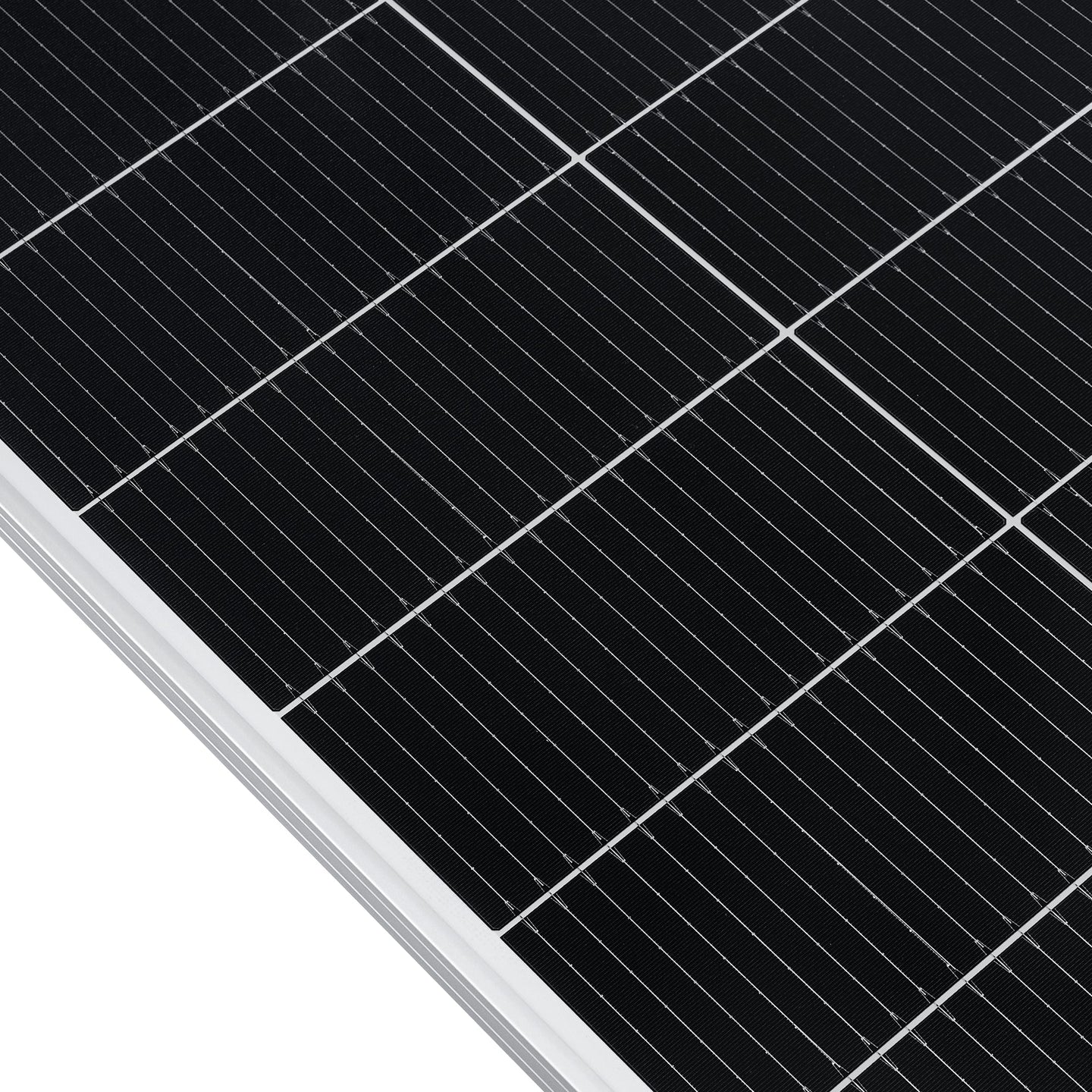

  • 18 busbar solar cell configuration

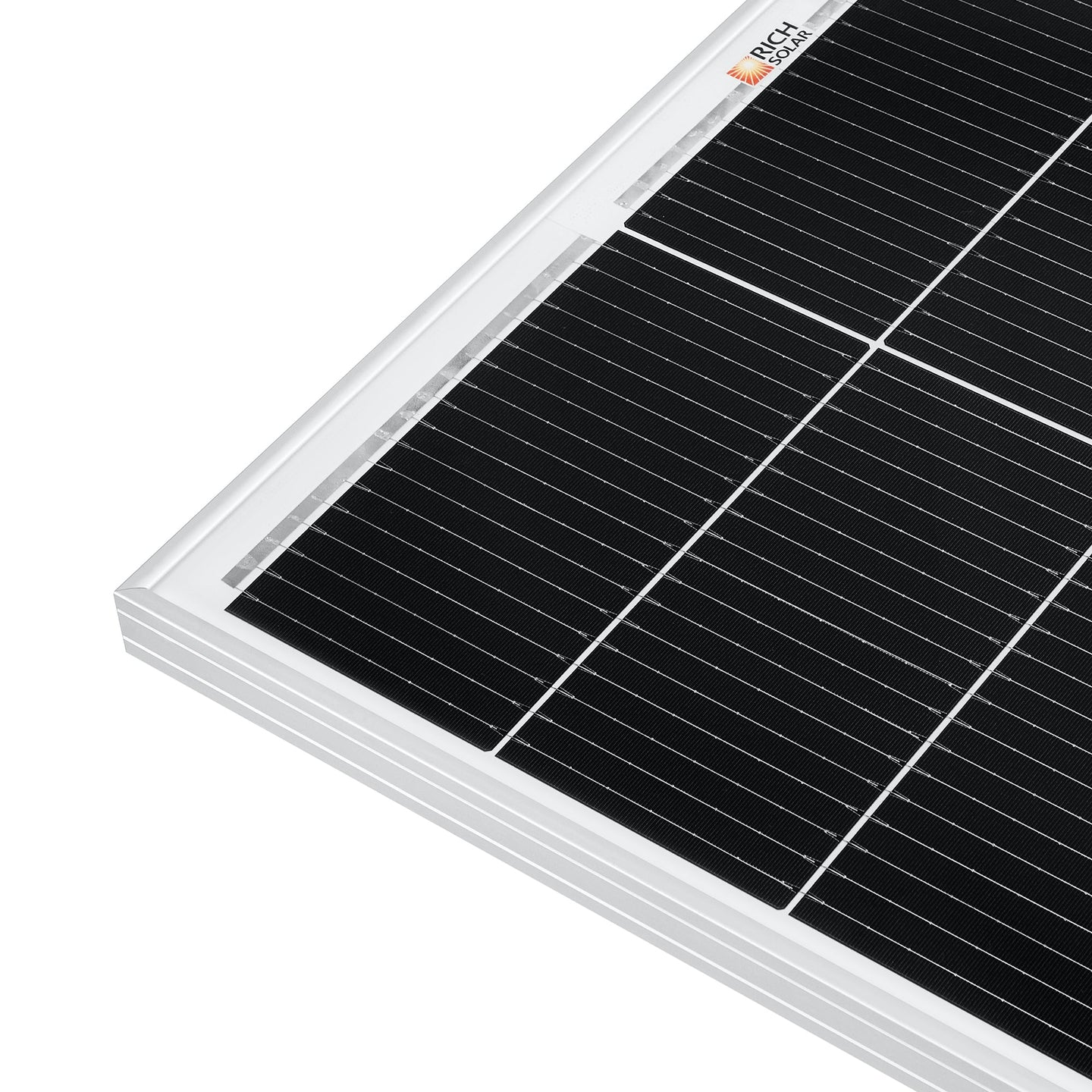

  • Lightweight anodized aluminum frame
  • High Transmission AR-coated tempered glass

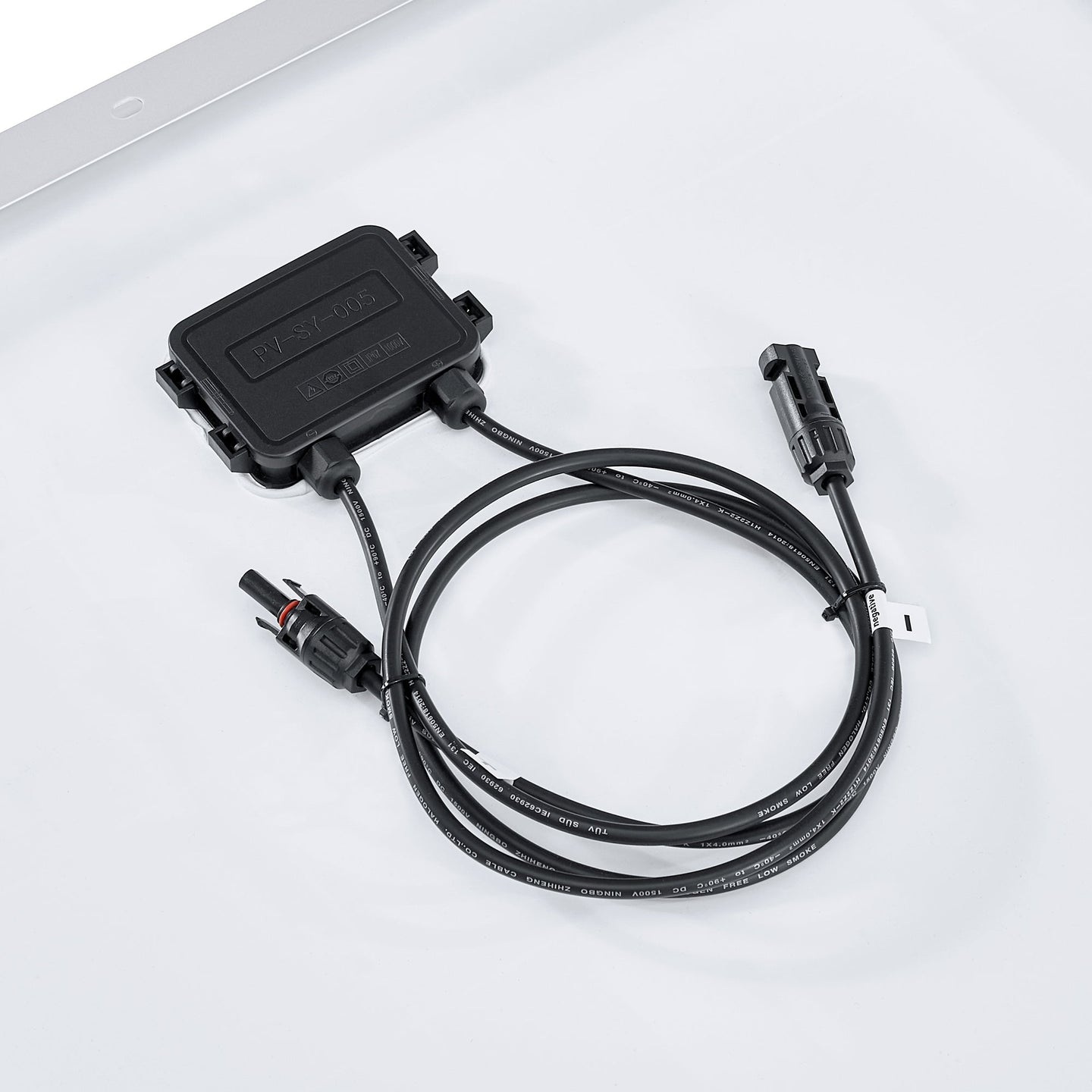

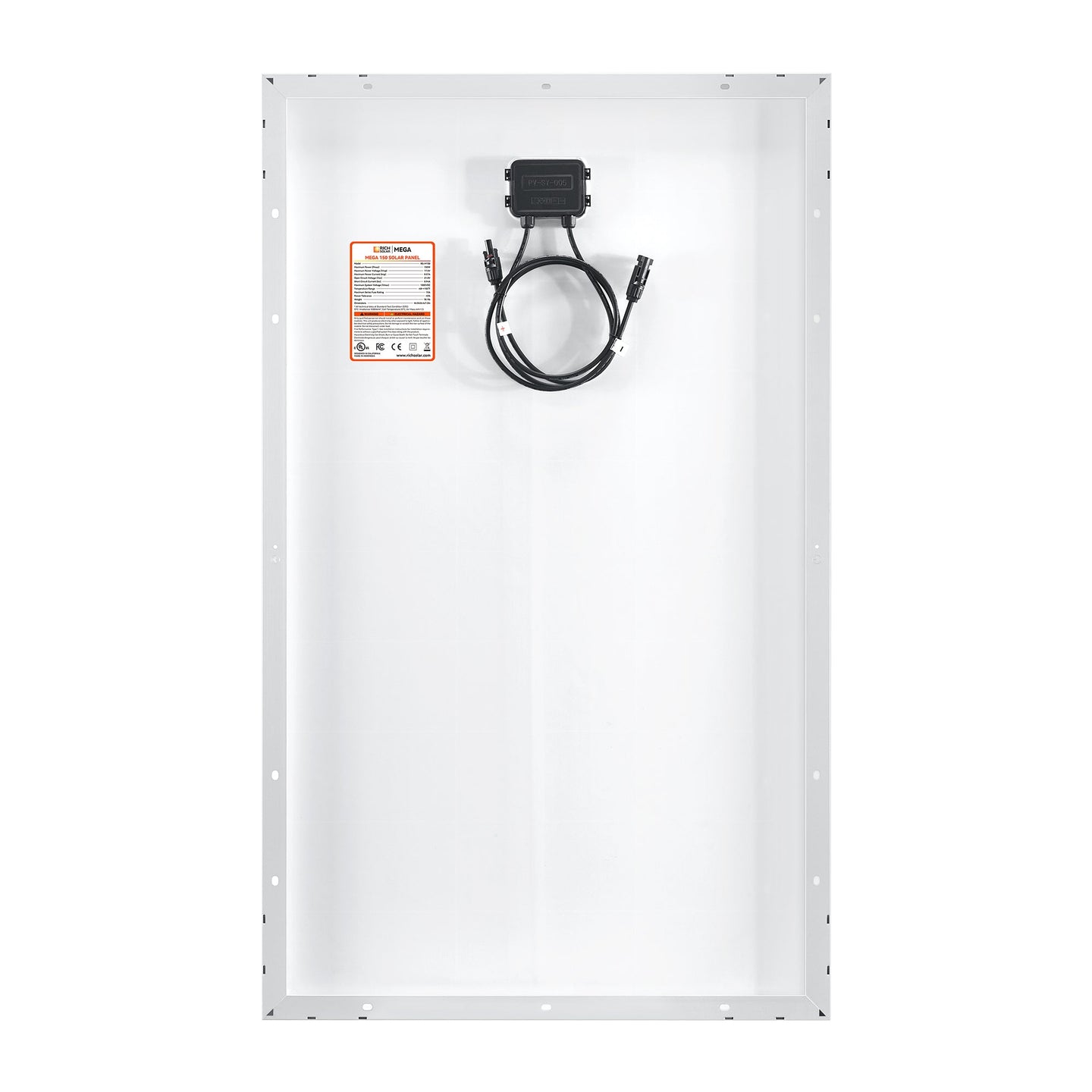

  • Plug-and-play junction box
  • Industry-standard quick-connect cables work in series or parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low-light performance on cloudy days, mornings, and evenings

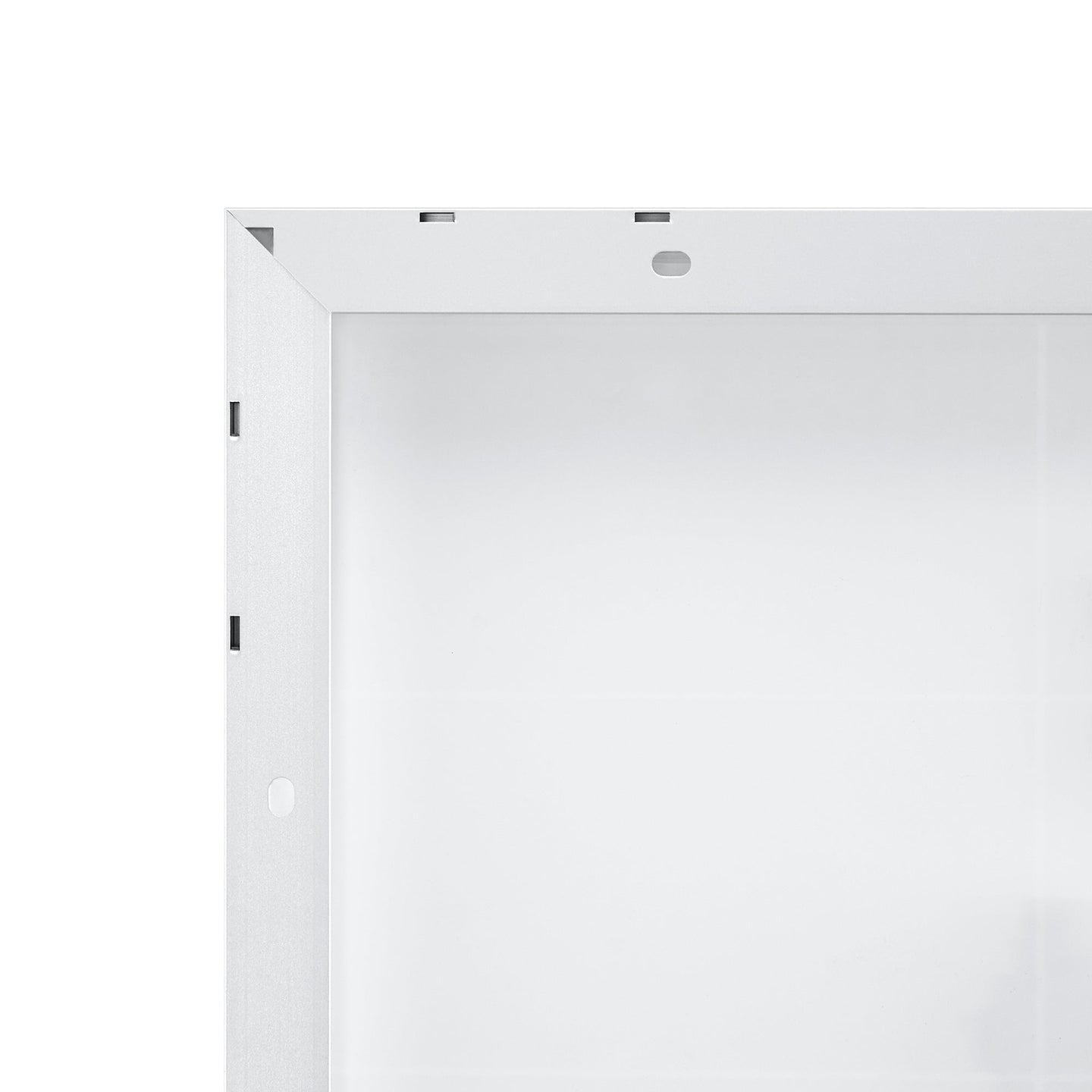

  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters
  • Panel leads (pair): 3 feet each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box

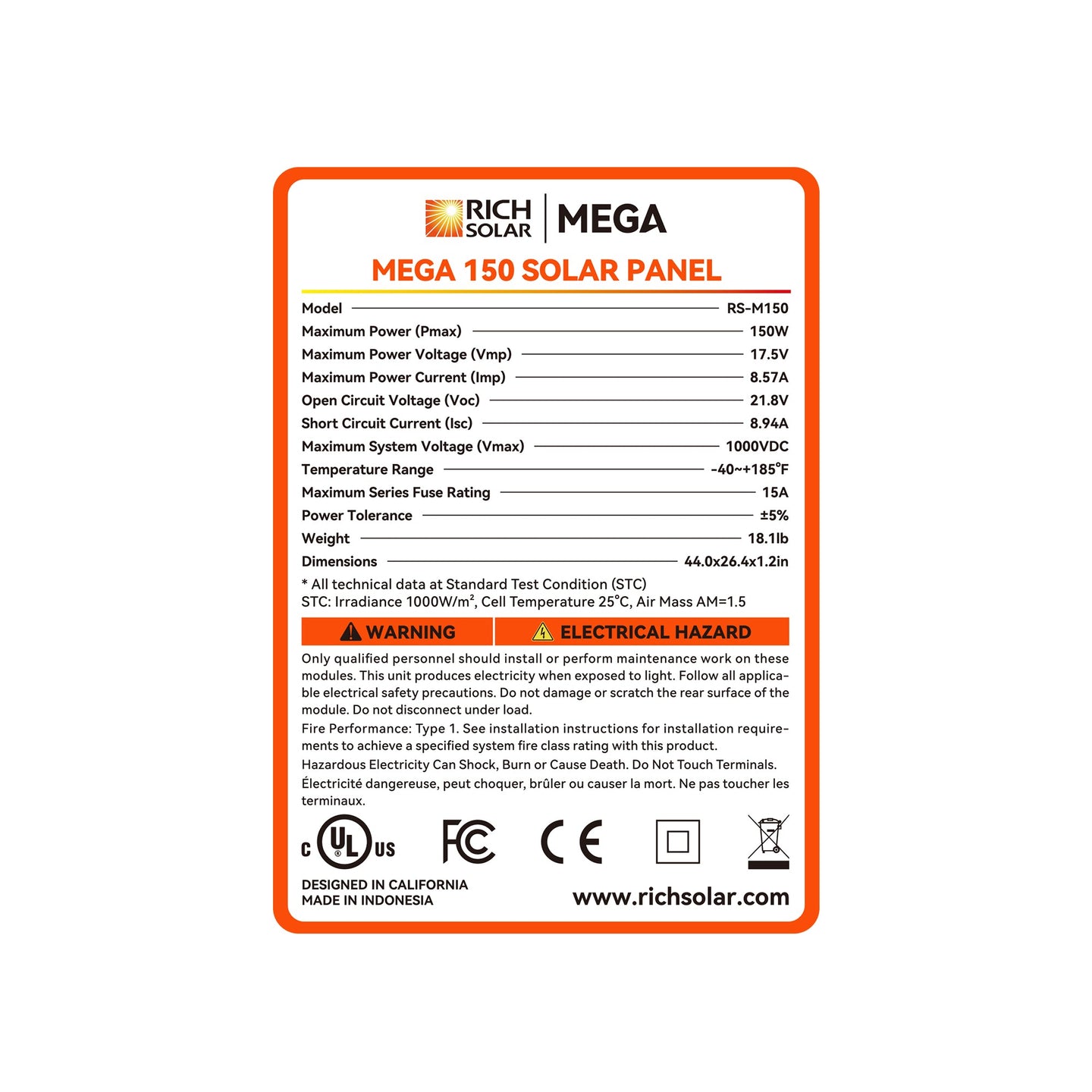

Specifications

  • Model: RS-M150
  • Maximum Power (Pmax): 150 W
  • Maximum Power Voltage (Vmp): 17.5V
  • Maximum Power Current (Imp): 8.57A
  • Open Circuit Voltage (Voc): 21.8V
  • Short Circuit Current (Isc): 8.94A
  • Maximum System Voltage (Vmax): 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Temperature Range: -40 ~ +185°F
  • Weight: 18.1 lb

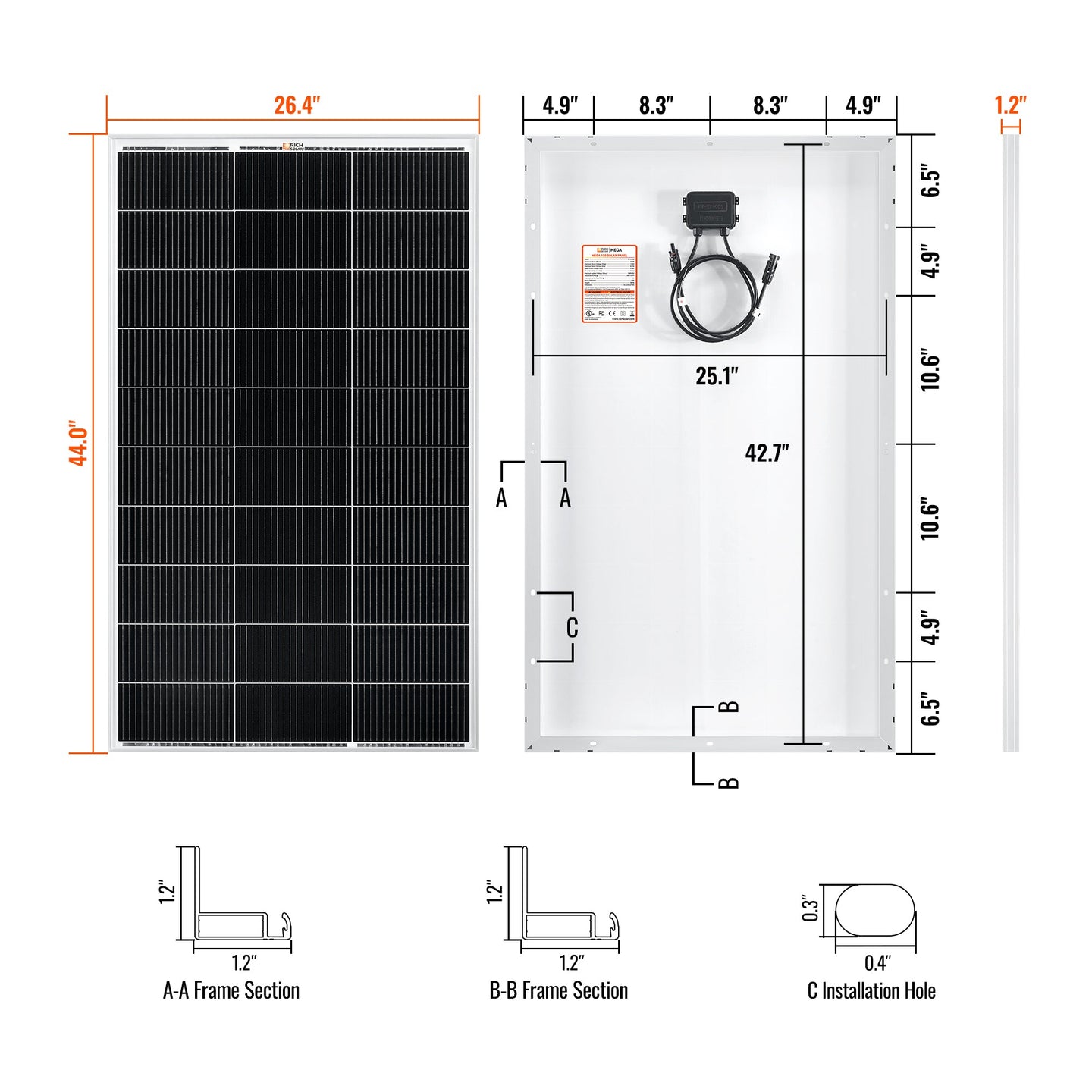

  • Dimensions: 44.0 x 26.4 x 1.2 in
