MEGA 410 Solar Panel

Overview

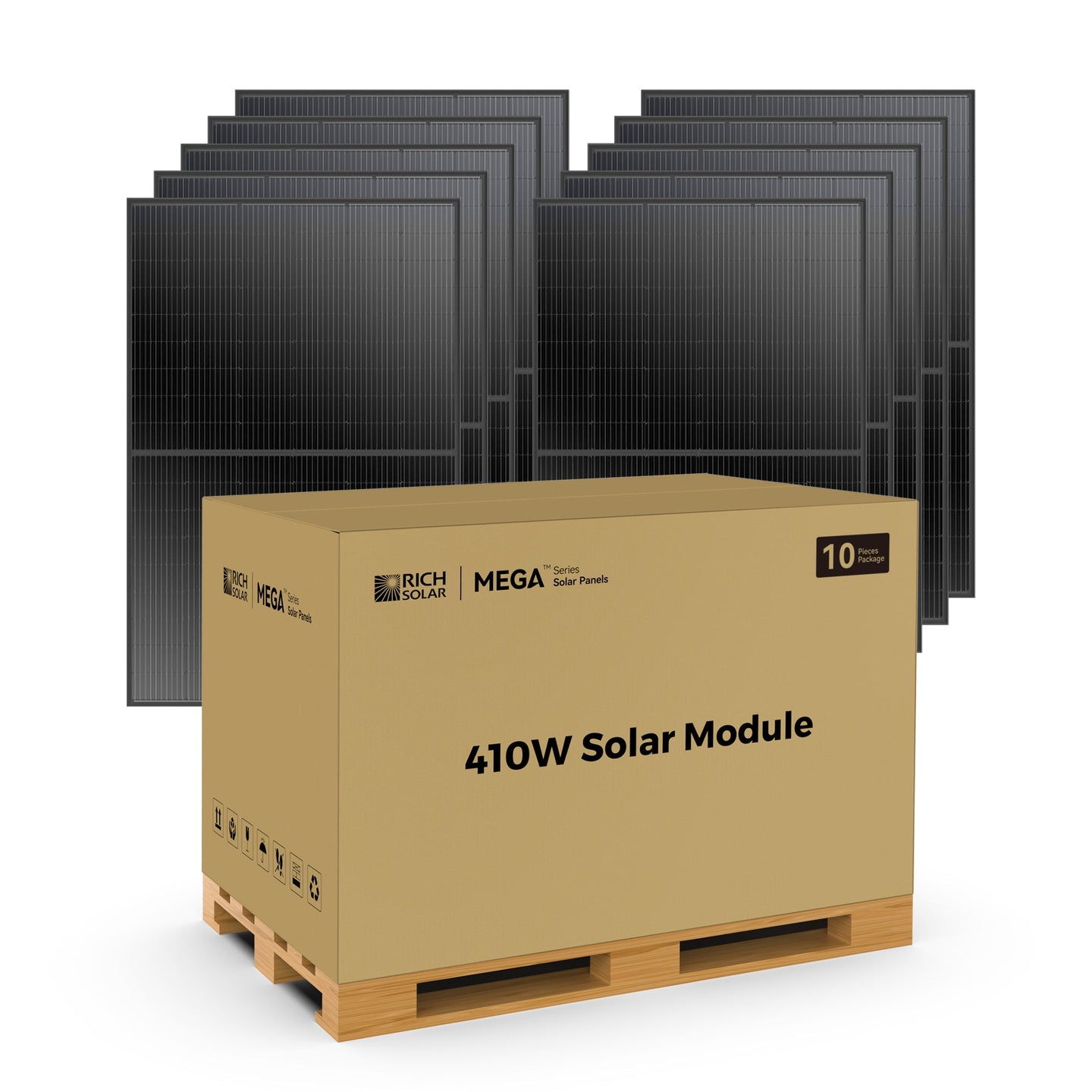

PALLET SHIPPING ONLY! For any other quantities, please call our sales team at 1-800-831-9889 or email at sales@richsolar.com.

The MEGA 410 maximizes power generation while minimizing space, equipment needs, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.

Benefits

  • Maximizes power while minimizing space, equipment needs, and cost.
  • Produces up to 410W at 24V for off-grid systems.
  • Helps reduce electricity bills for homes, farms, and businesses.
  • Durable construction with an anodized aluminum frame and tempered glass.
  • Warranty: 25-year power output, 10-year workmanship.
  • Built to handle challenging environmental conditions.

Features

  • 10-busbar solar cell configuration
  • Mono PERC technology
  • Lightweight, anodized aluminum frame
  • High transmission, AR-coated tempered glass
  • Plug-and-play junction box
  • Industry-standard quick-connect cables, usable in series or parallel
  • IP68-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box
  • Easy installation and handling for off-grid and mobile applications
  • Pre-drilled holes for ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters
  • Excellent low-light performance on cloudy days, mornings, and evenings

Specifications

  • Maximum Power (Pmax): 410W
  • Maximum Power Voltage (Vmp): 31.3V
  • Maximum Power Current (Imp): 13.1A
  • Open Circuit Voltage (Voc): 37.5V
  • Short Circuit Current (Isc): 13.8A
  • Maximum System Voltage (Vmax): 1500VDC
  • Temperature Range: -40°F ~ 185°F
  • Max Series Fuse Rating: 25A
  • Weight: 45.2 lb
  • Dimensions: 67.9 x 44.6 x 1.2 in
