RS-H6548 Inverter System

Overview

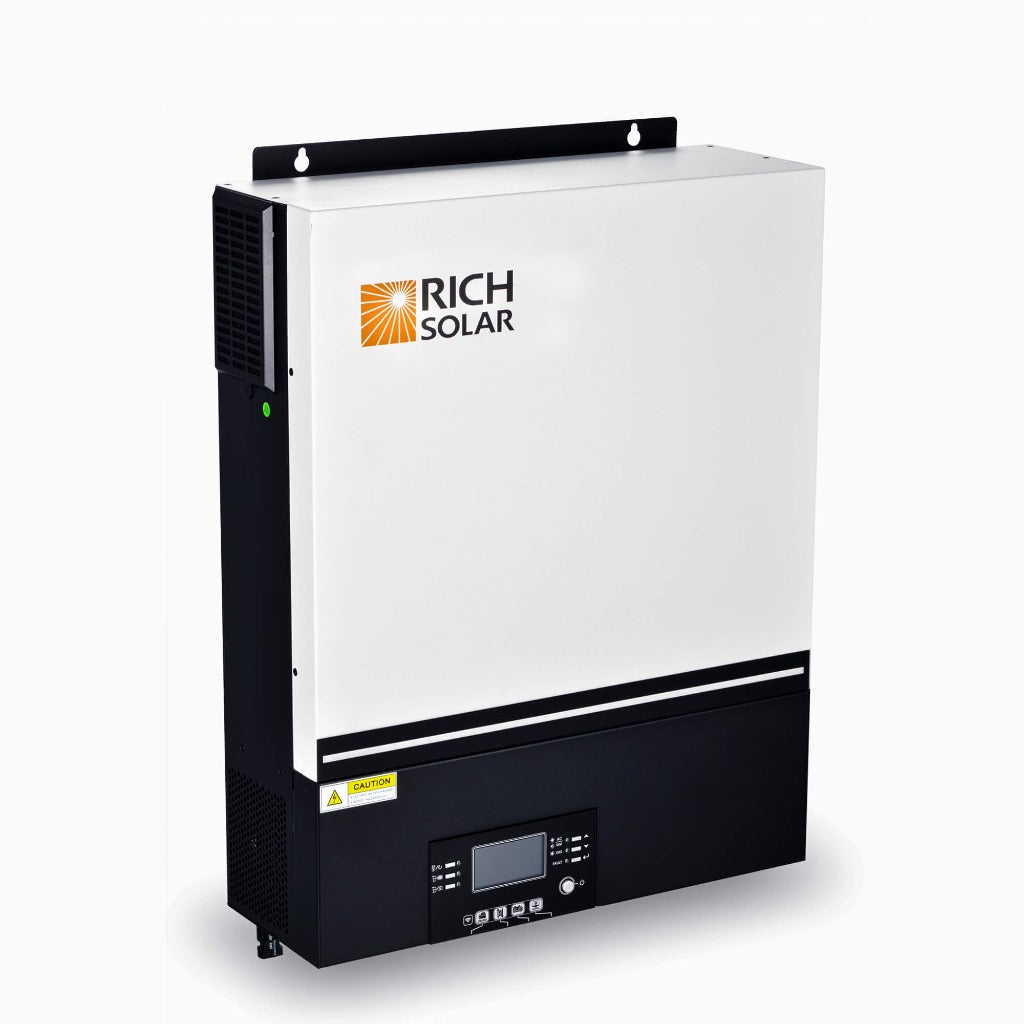

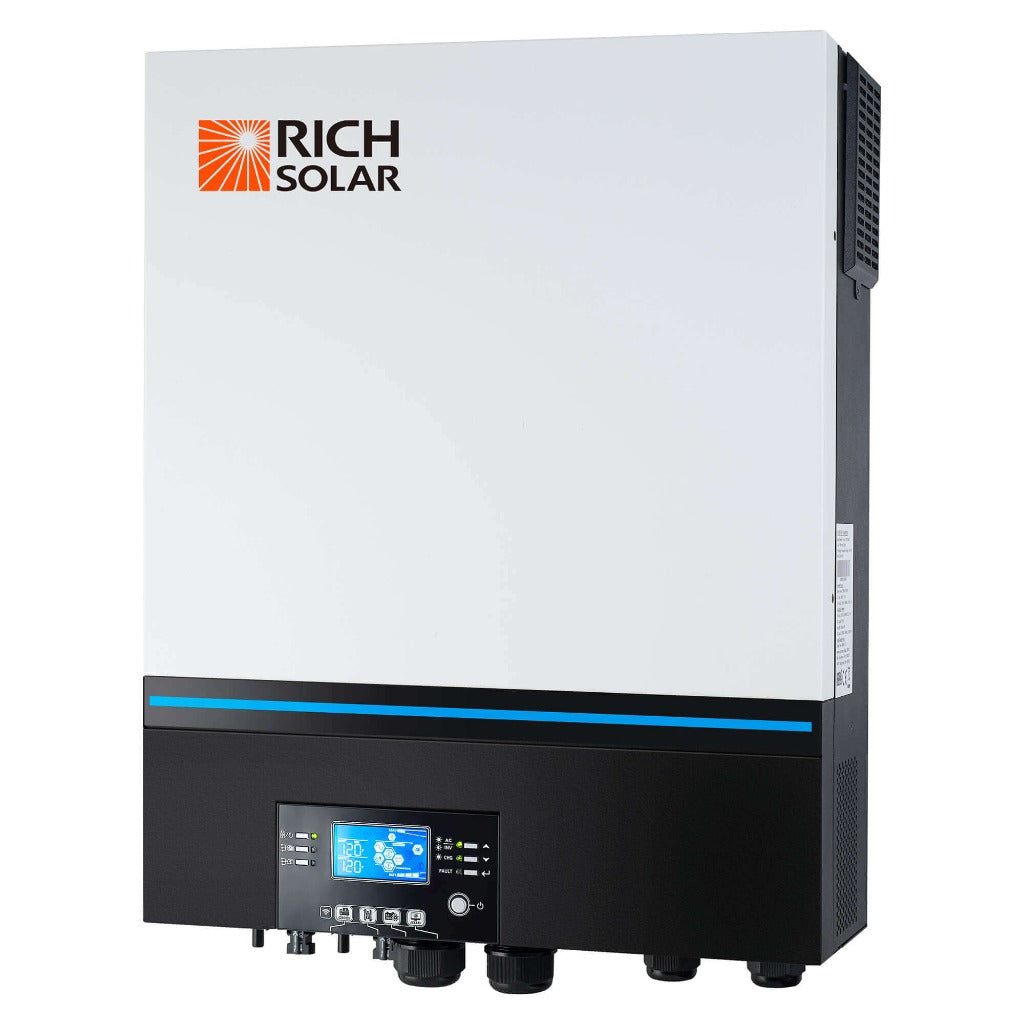

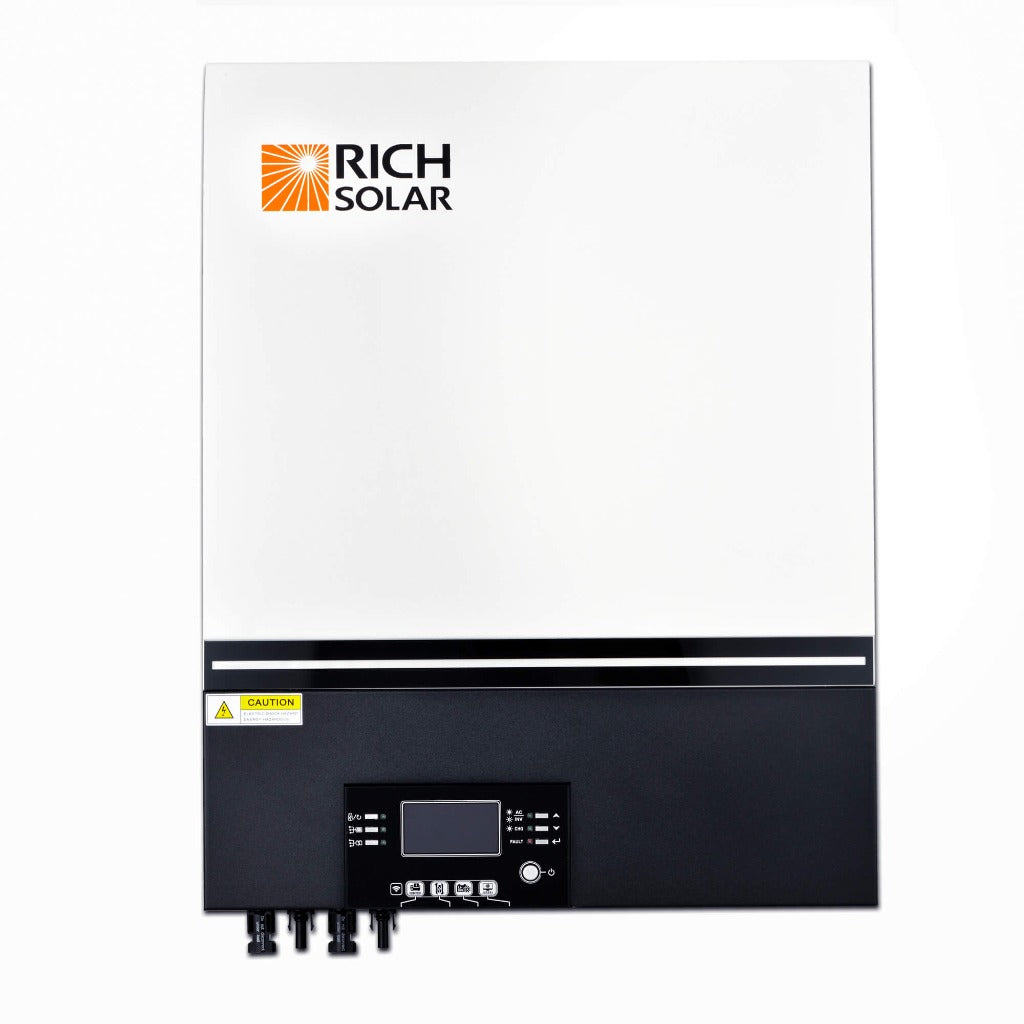

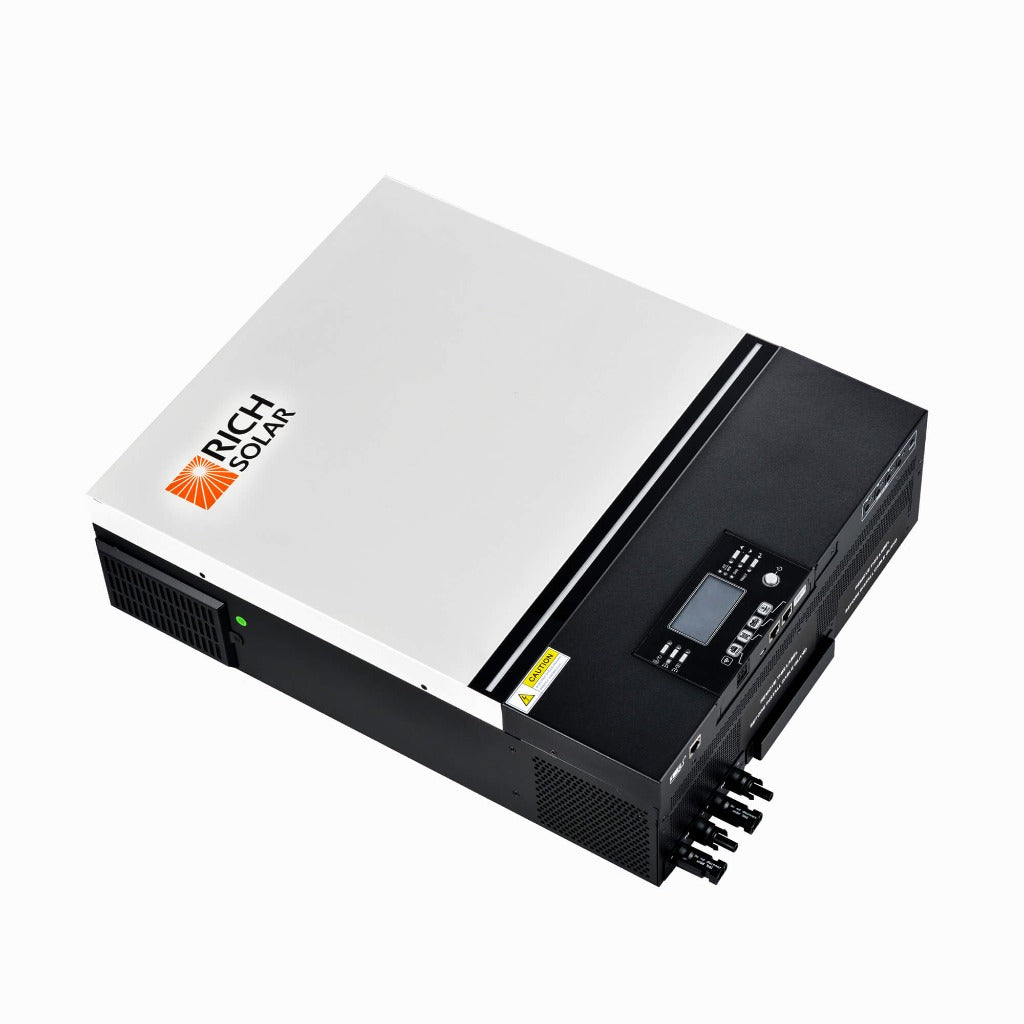

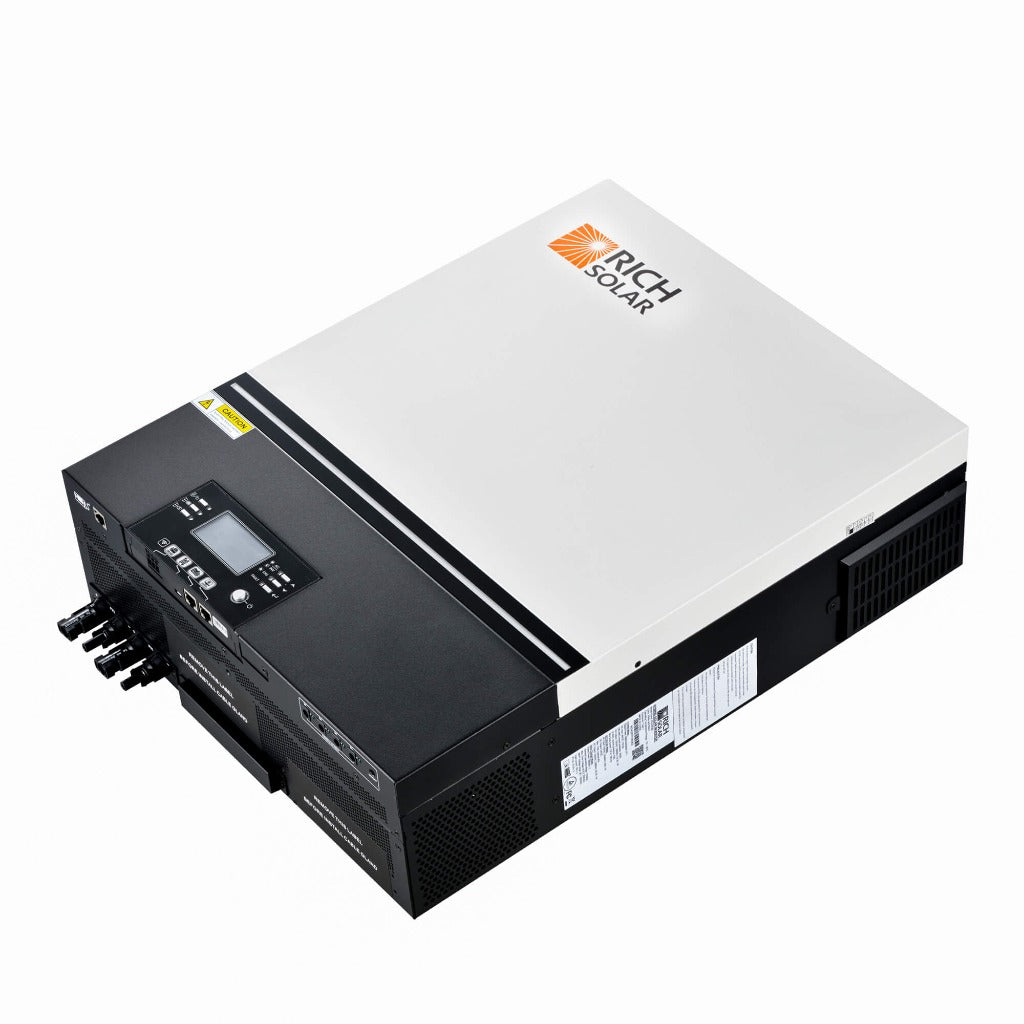

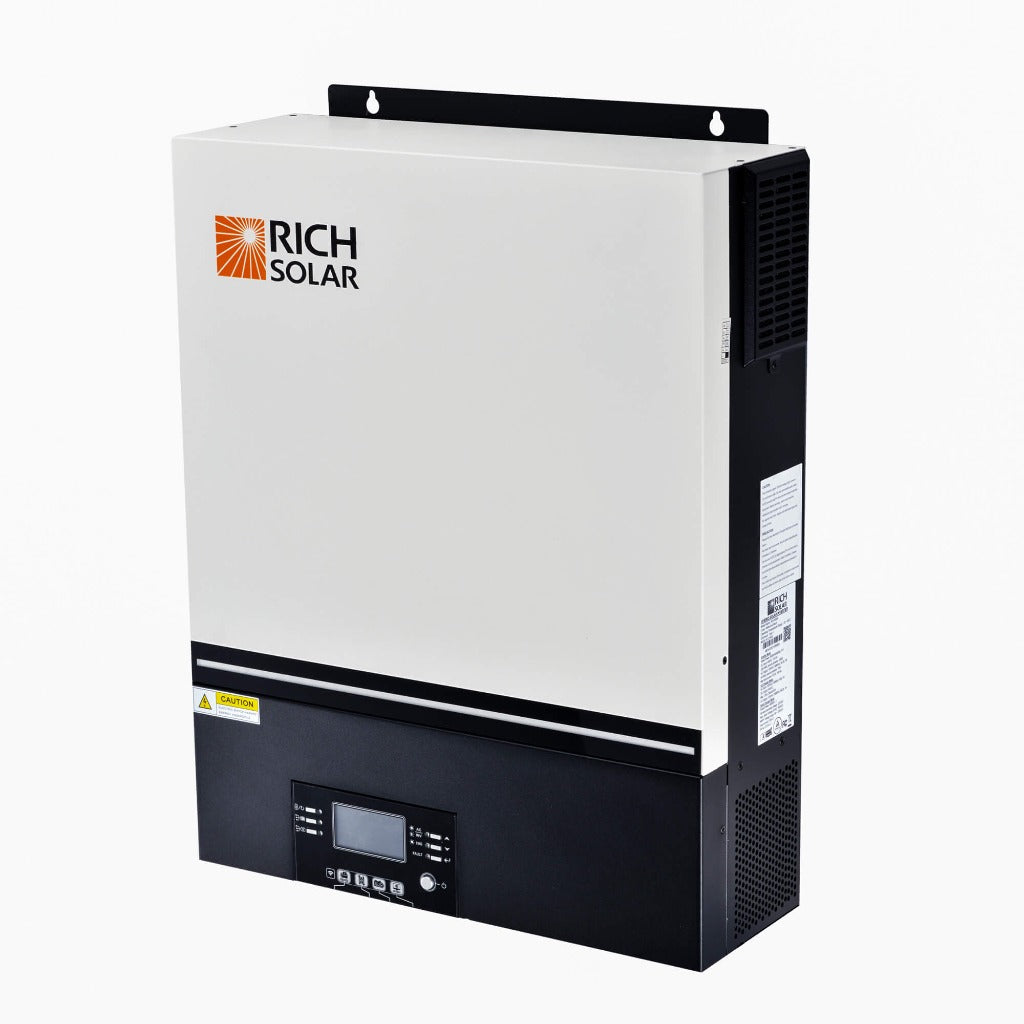

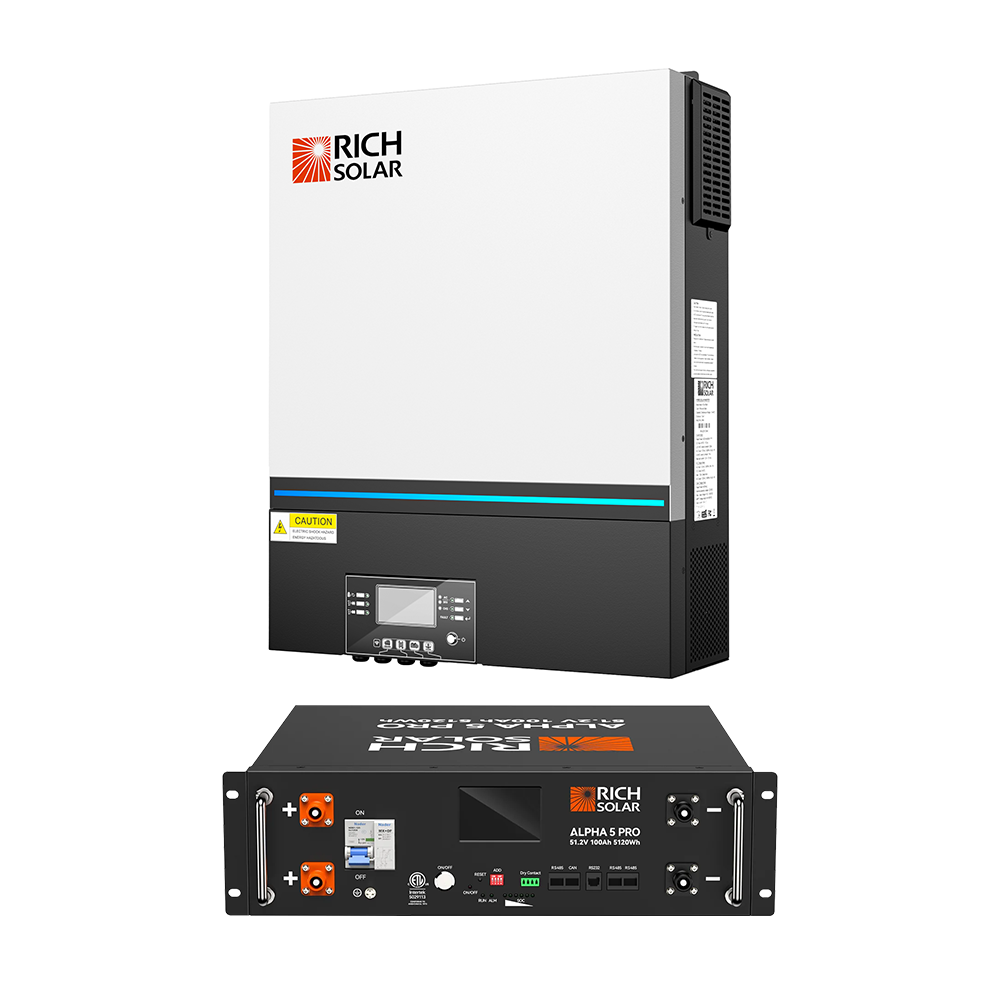

Power that stays on when you need it. The RS-H6548 is a 6500VA pure sine wave inverter system with a 48V battery setup. It works with mains or generators, can run parallel with up to 6 units, and lets you monitor it from your phone. Configurable via LCD panel and built-in options, it’s built for flexibility and reliability.

Benefits

• Pure sine wave output for sensitive electronics.
• Configurable input and output through the LCD panel.
• Built?in Wi?Fi for mobile monitoring (app required).
• USB On-The-Go support for external devices.
• Anti-dusk kit helps keep the unit cleaner in dusty environments.
• Detachable LCD control module with BMS communication ports (RS485, CAN-BUS, RS232).
• Configurable input voltage ranges for computers and home appliances.
• configurable AC/PV output timer and prioritization.
• Configurable AC/Solar charger priority via LCD panel.
• Configurable battery charging current for different apps.
• Compatible with utility mains or generator power.
• Auto restart when AC is recovering.
• Protection for overload, over-temperature, and short circuits.

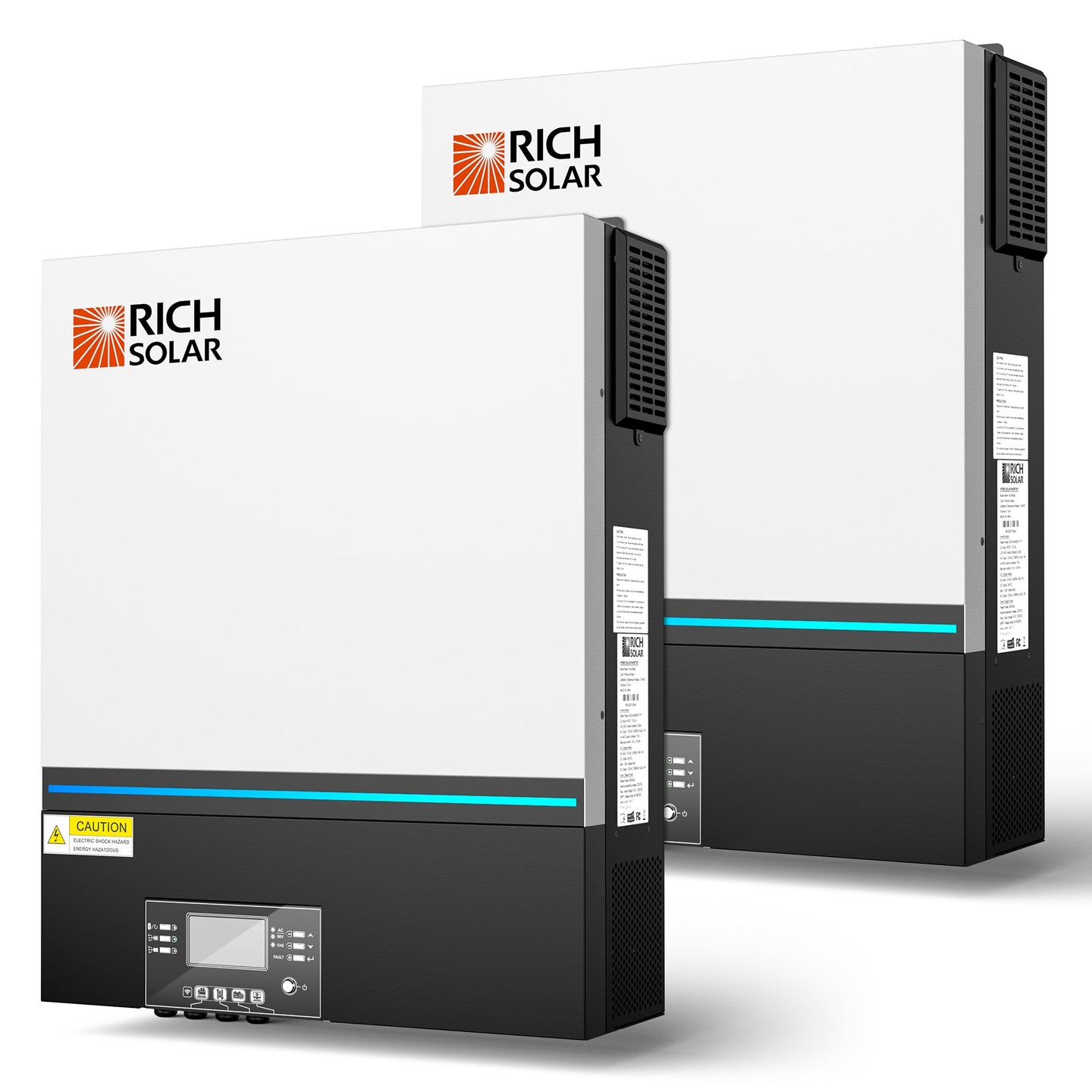

• Parallel operation with up to 6 units.
• Smart battery charger design for optimized battery performance.
• Cold start function.

Features

• Pure Sine Wave Inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible with utility mains or generator power
• Auto restart while AC is recovering
• Overload/over temperature/short circuit protection
• Parallel operation with 6 units
• Smart battery charger design for optimized battery performance
• Cold start function

Specifications

• • Model: RS-H6548
  • Rated Inverter Power: 6500VA/6500W
  • Parallel Capability: Yes, 6 units

• Input

  • Voltage: 120 VAC
  • Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
  • Frequency Range: 50 Hz/60 Hz (Auto Sensing)

• Output

  • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
  • Surge Power: 2× rated power for 5 seconds
  • Efficiency (Peak): 91%
  • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
  • Waveform: Pure Sine Wave
  • Optional DC Voltage: 12 VDC ± 7%, 100W

• Battery

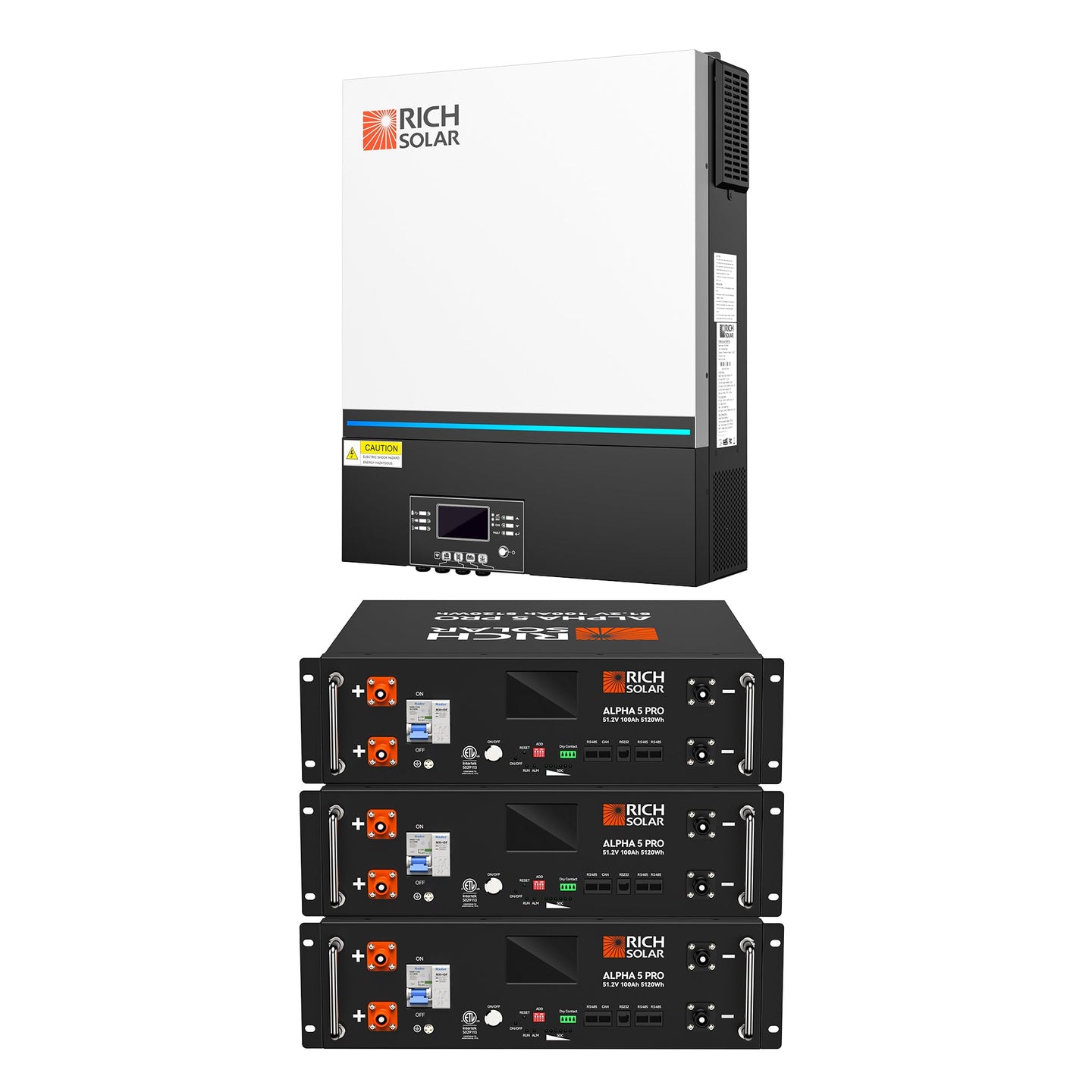

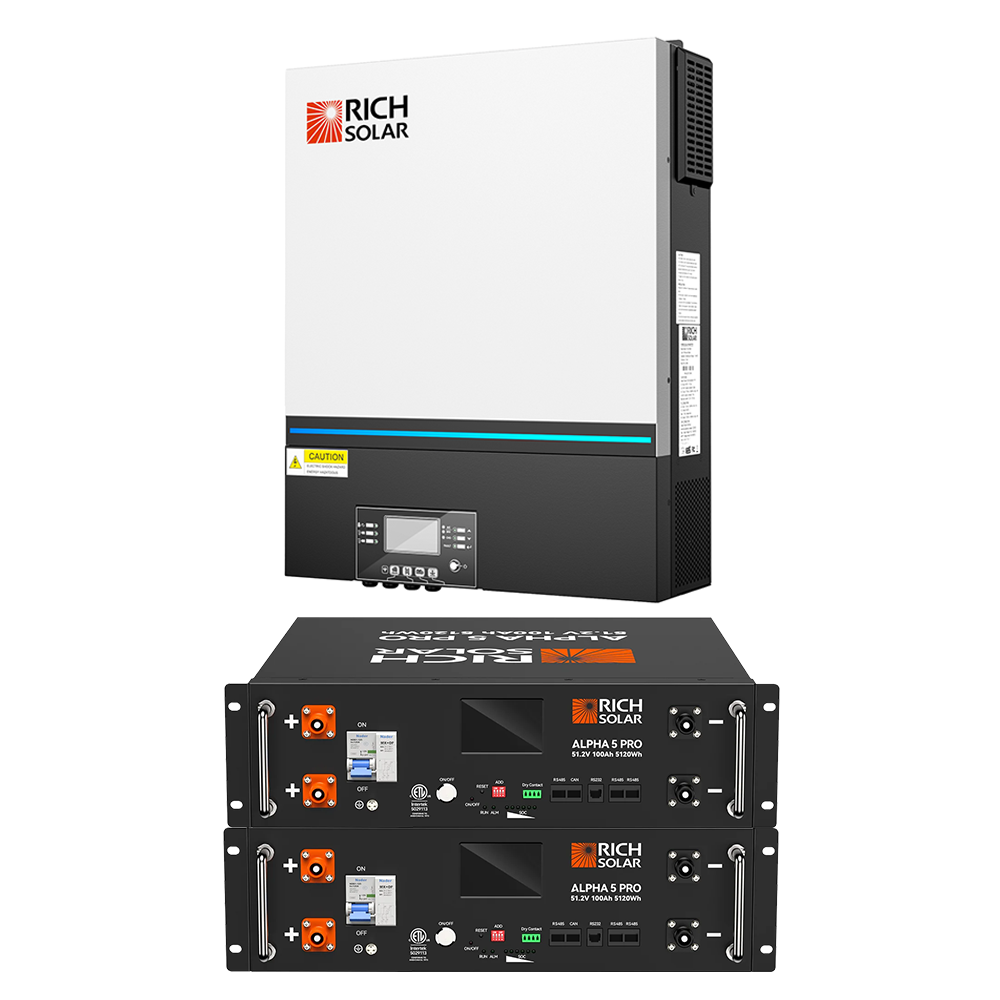

  • Battery Voltage: 48 VDC
  • Float Charging Voltage: 54 VDC
  • Overcharge Protection: 66 VDC

• Solar Charger & AC Charger

  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 8000W (4000W x 2)
  • MPPT Operating Voltage Range: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
  • Maximum AC Charge Current: 120A
  • Maximum Charge Current: 120A

• Physical

  • Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
  • Net Weight: 40.6 lb
  • Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

• Operating Environment

  • Humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Operating Temperature: -14°F to 104°F
  • Storage Temperature: 5°F to 140°F

• Standard

  • Compliance Safety: UL 1741 by TUV
