All-in-One 8kW Solar Inverter with Dual MPPT and Battery Charging

Overview

Power your off-grid or hybrid solar system with an 8 kW pure sine wave inverter. It supports up to 200 A battery charging, built-in dual MPPT controllers, and a max open-circuit voltage of 500 VDC. Output options include split-phase 120/240 V or single-phase 120 V. A Wi?Fi module lets you monitor status and parameters via a mobile app. UL 1741 listed for off-grid solar systems.

Benefits

  • All-in-one unit: 8 kW inverter with battery charging and dual MPPT controllers.

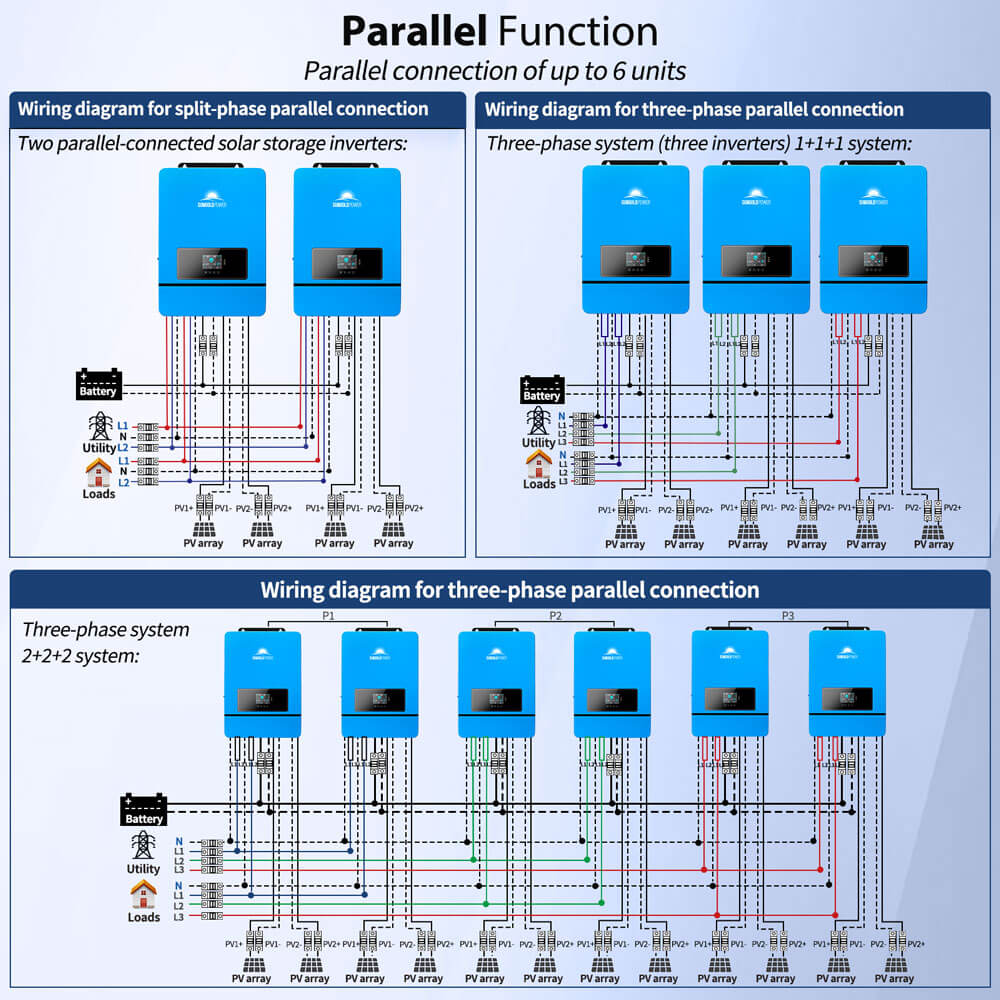

  • Parallel capability: up to 6 units in parallel for up to 48 kW; supports 120 V single-phase, 120/240 V split-phase, or 208 V 3-phase (more than 3 units).
  • Stable output and protection: 8,000 W rated, 16,000 W peak; protections for PV input, AC input, battery over-voltage, overload, and more.

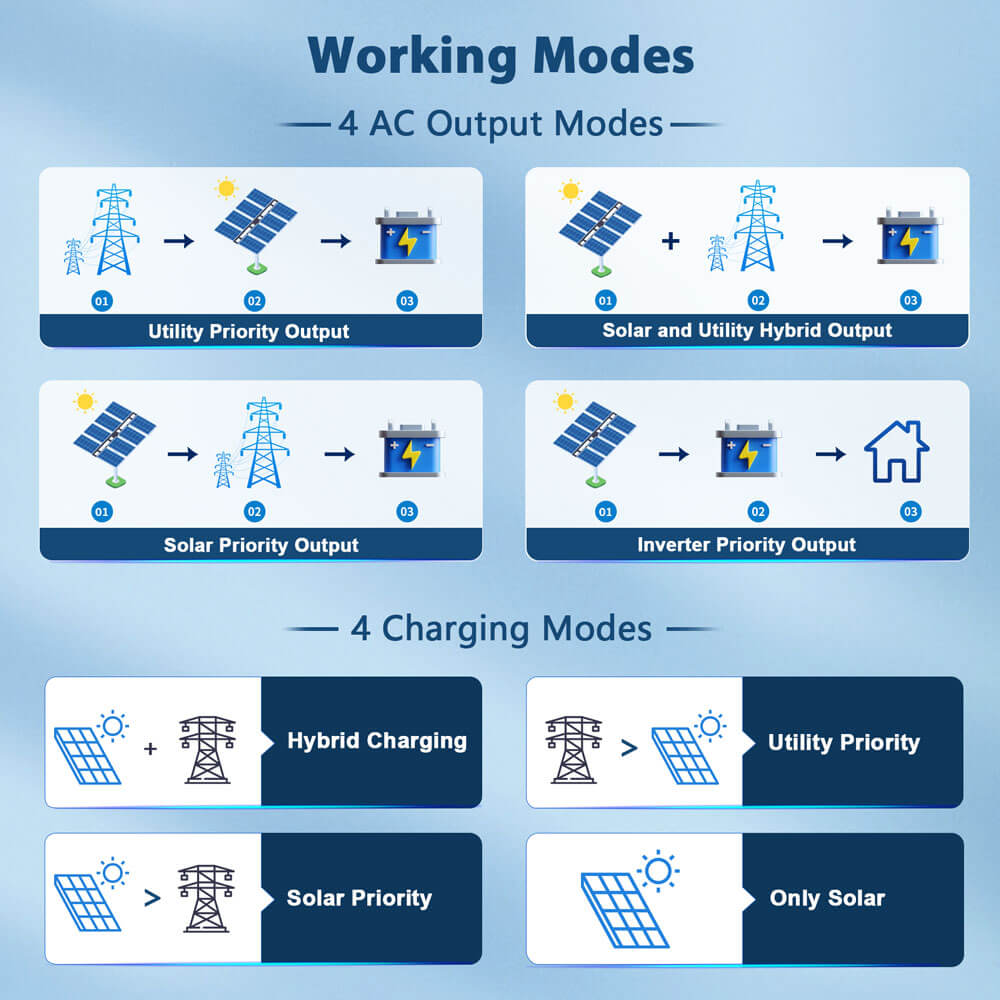

  • Flexible charging modes: Hybrid charging, Utility priority charging, Solar priority charging, or Only solar charging; output modes include Utility Priority, Solar+Utility Hybrid, Solar Priority, and Inverter Priority.

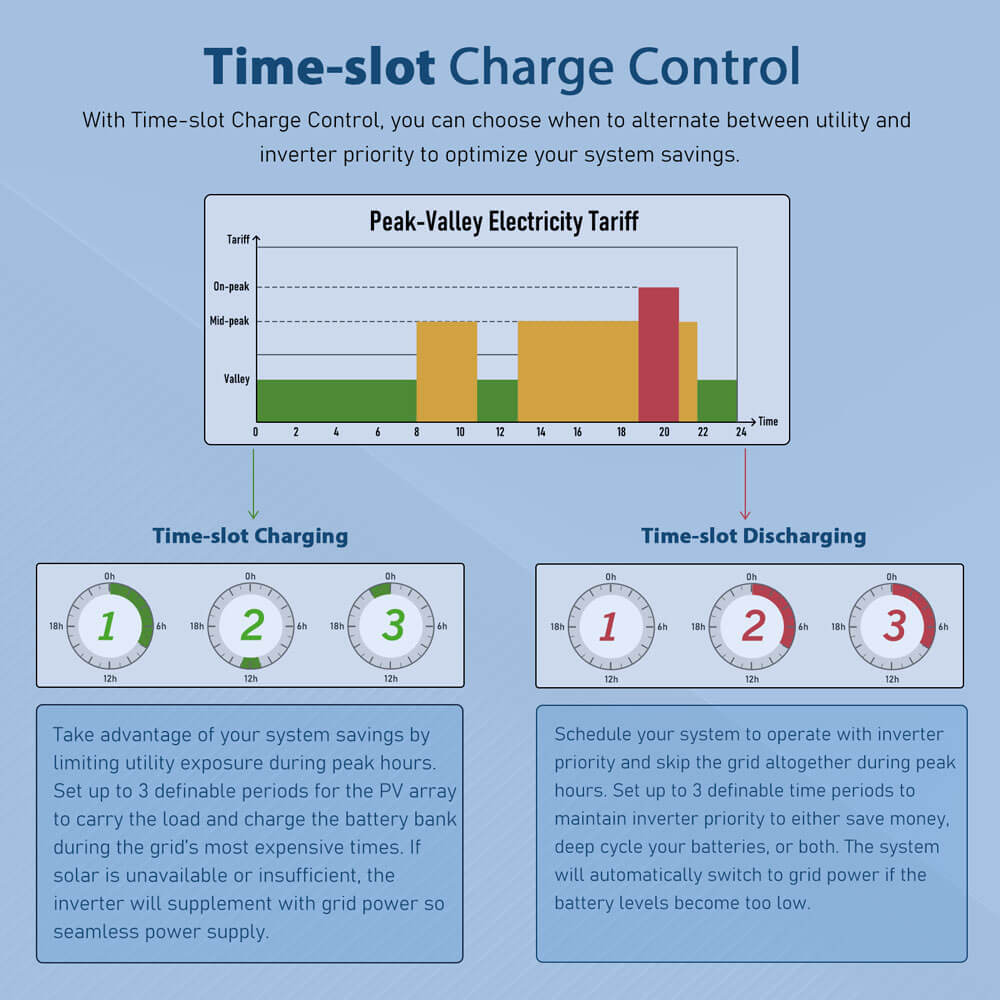

  • Time-slot charging/discharging: schedule charging and discharging to match tariffs and use grid and PV energy efficiently.

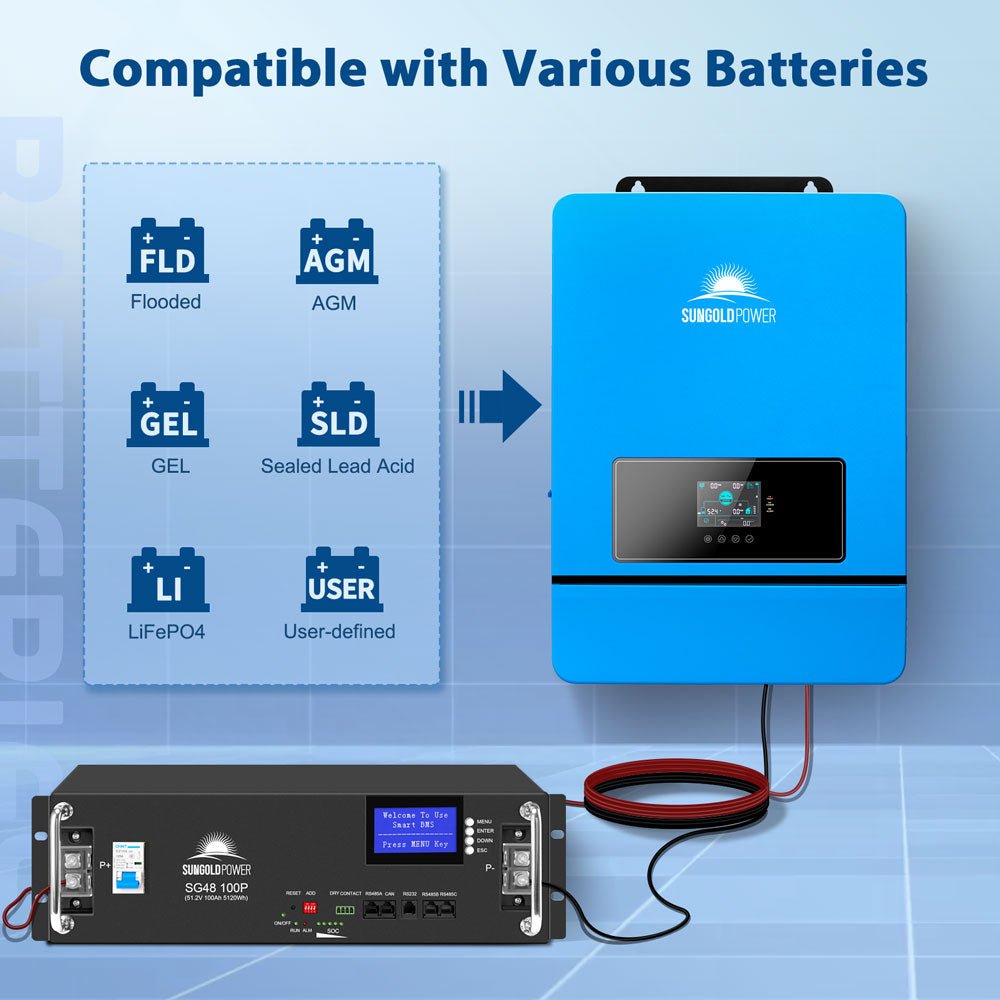

  • Battery compatibility: 48 V AGM/sealed, gel, flooded, lithium, and a user mode for all battery types; supports battery-free operation and CAN/USB/RS485 communication with compatible batteries.

Features

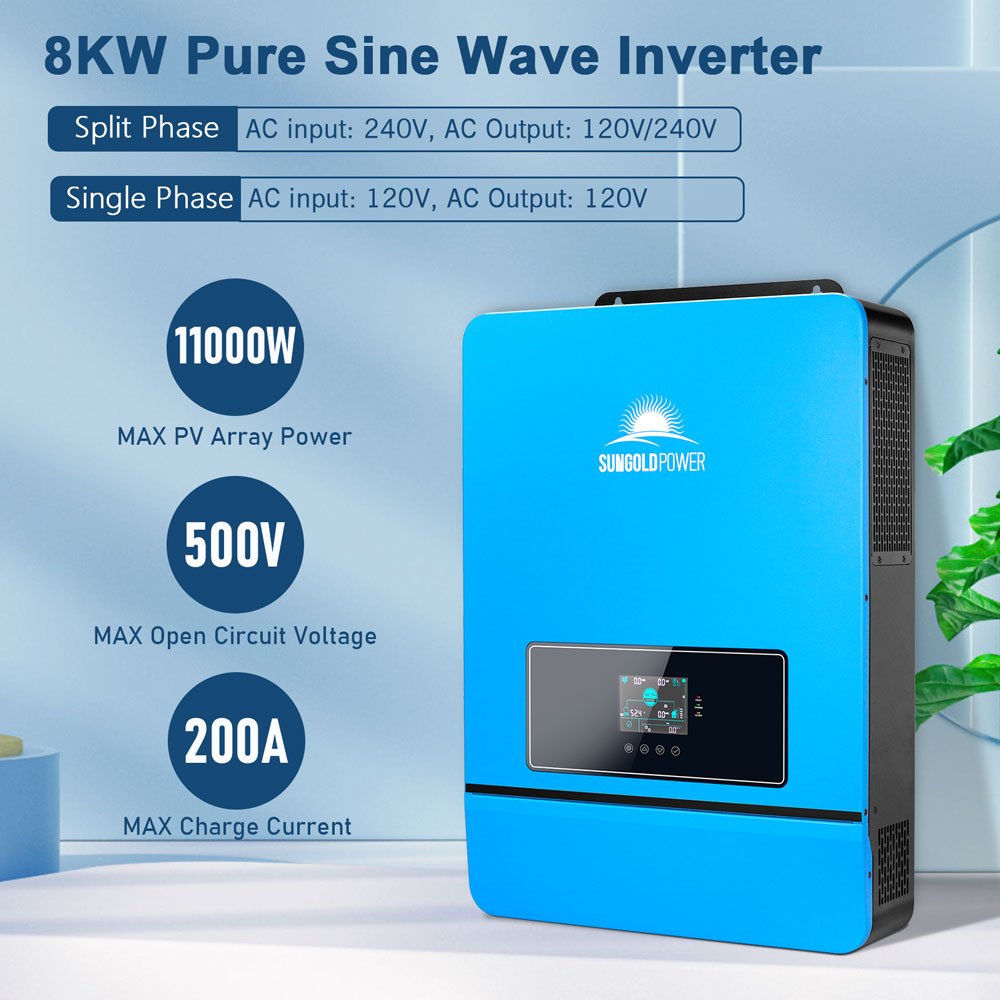

  • 8 kW pure sine wave inverter with up to 200 A battery charging.
  • Built-in dual MPPT solar controllers.
  • Max open-circuit voltage: 500 VDC.
  • Output options: split-phase (120/240 V) or single-phase (120 V).
  • Wi?Fi module for remote monitoring via mobile app.
  • UL 1741 listed for off-grid solar systems.

Specifications

  • Rated output power: 8000 W
  • Max peak power: 16000 W
  • Output configuration: split-phase 120/240 V or single-phase 120 V
  • Motor capacity: 6 HP
  • PV input protection: over-voltage/current
  • AC input protection: over-voltage
  • Battery protection: over-voltage
  • Overload protection
  • Parallel capability: up to 6 units (up to 48 kW)
  • Battery voltage: 48 V
  • Battery types supported: AGM/sealed, gel, flooded, lithium; user mode; battery-free operation
  • Communications: CAN, USB, RS485 with compatible batteries
