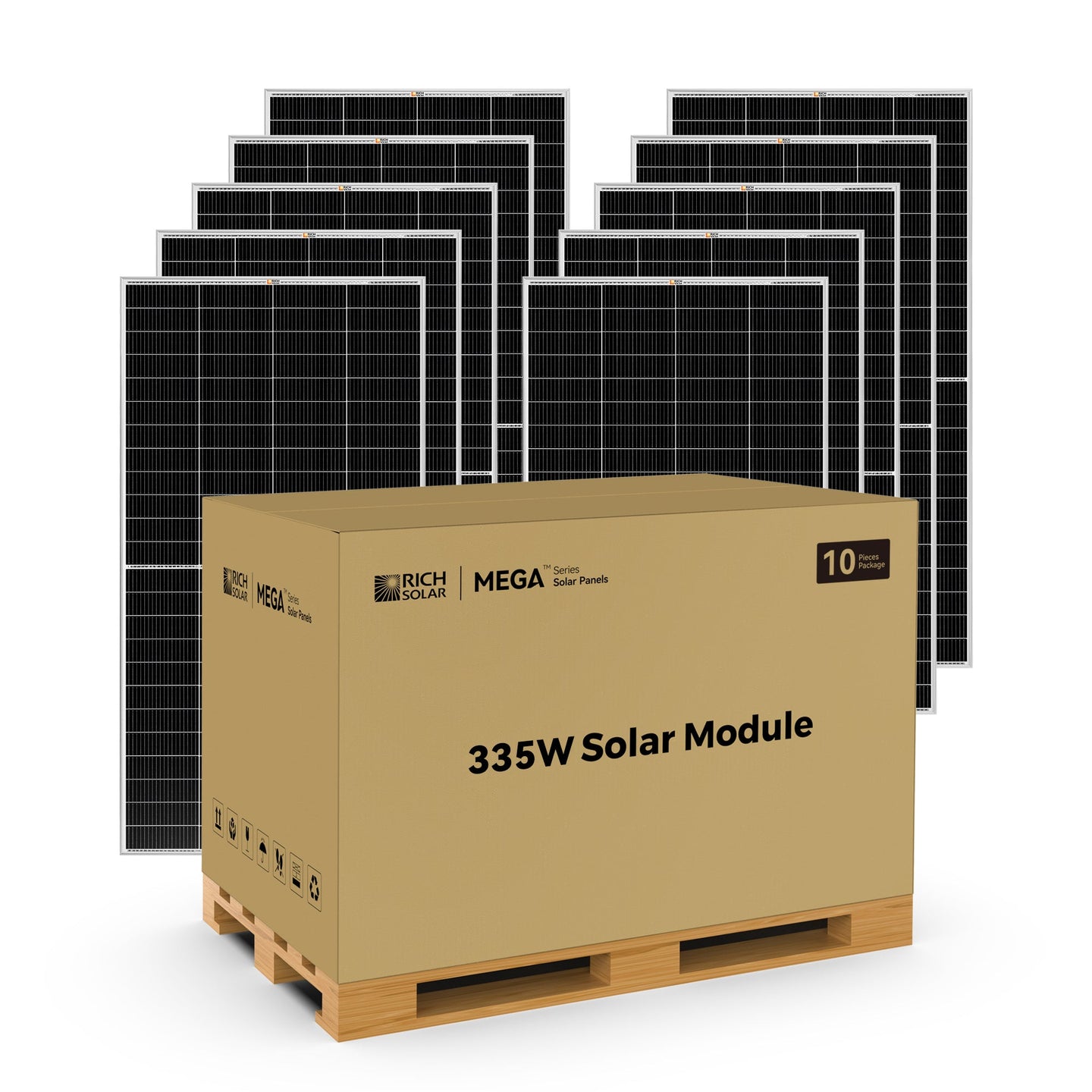

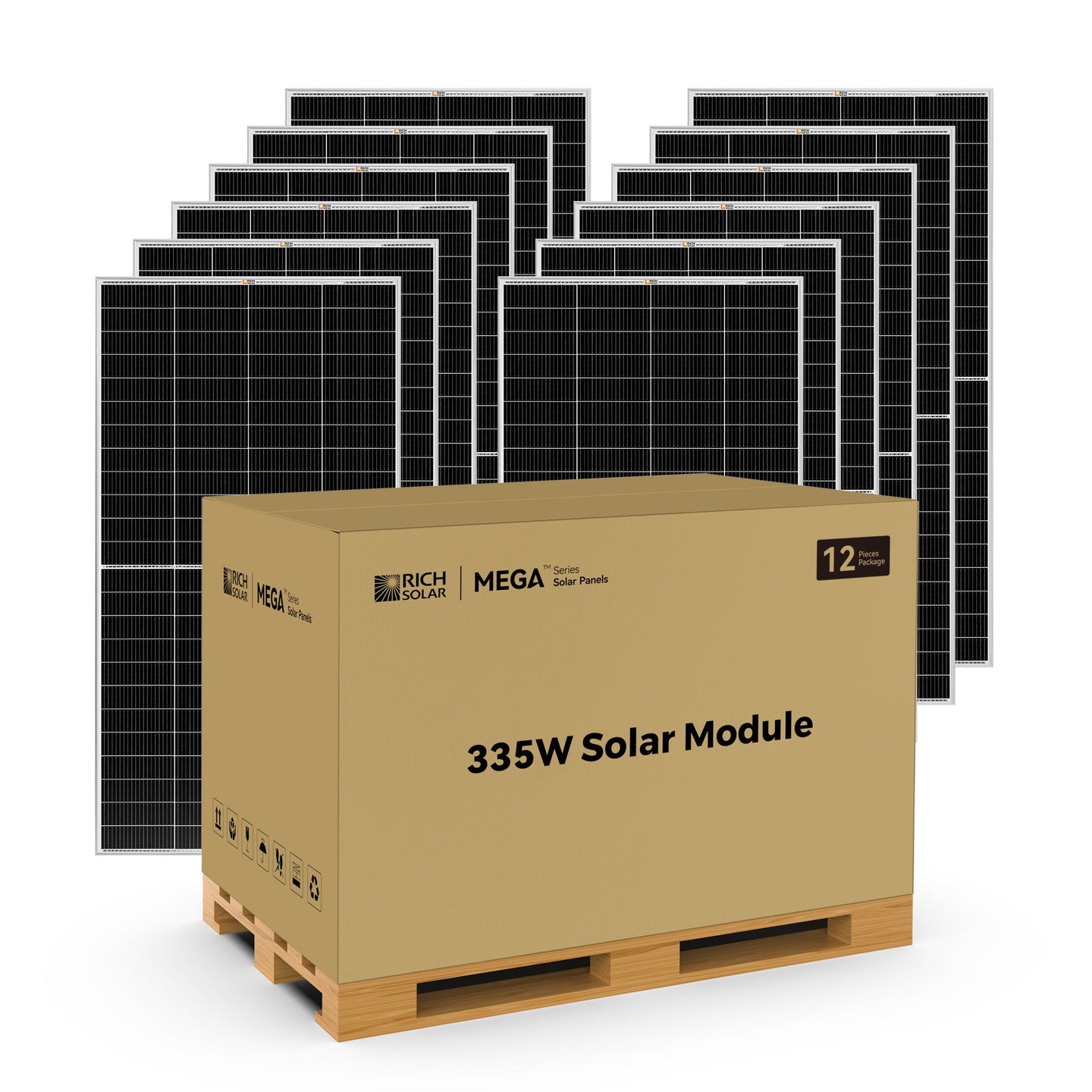

PALLET SHIPPING ONLY!

Overview

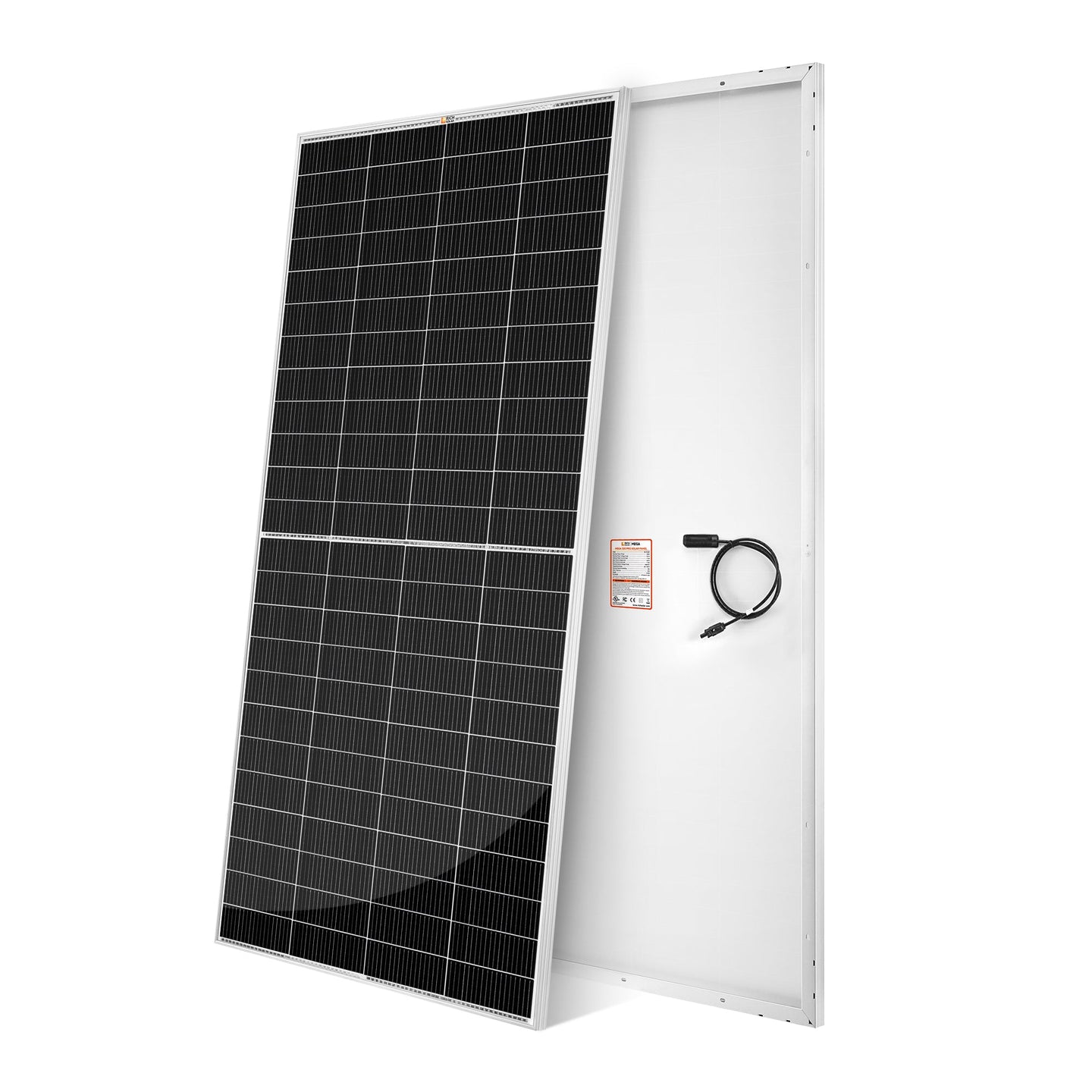

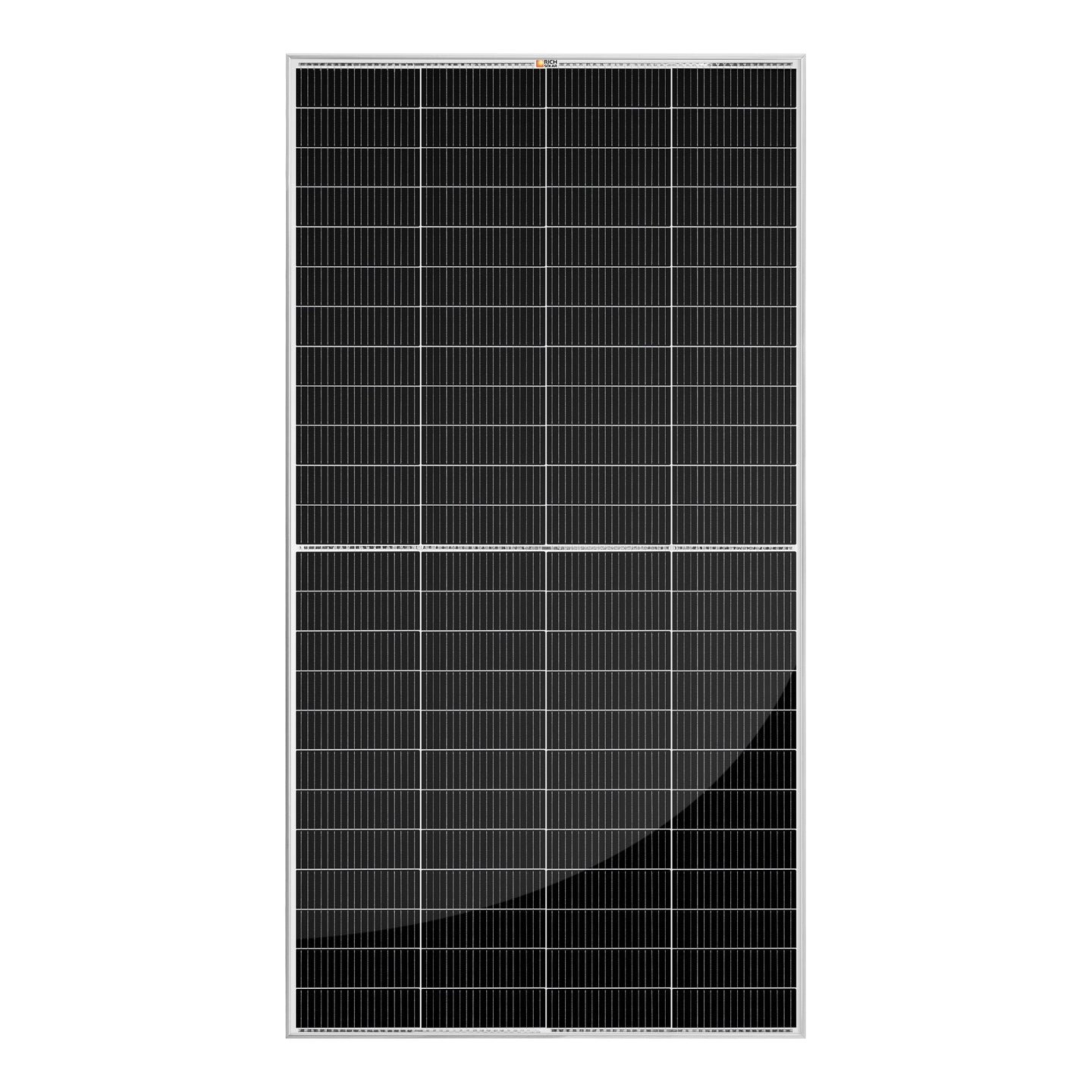

Pallet shipping only. For any other quantities, call our sales team at 1-800-831-9889 or email sales@richsolar.com. This panel is built for on-grid or off-grid use, delivering solid power with a durable, easy-to-install design for large-scale projects.

Benefits

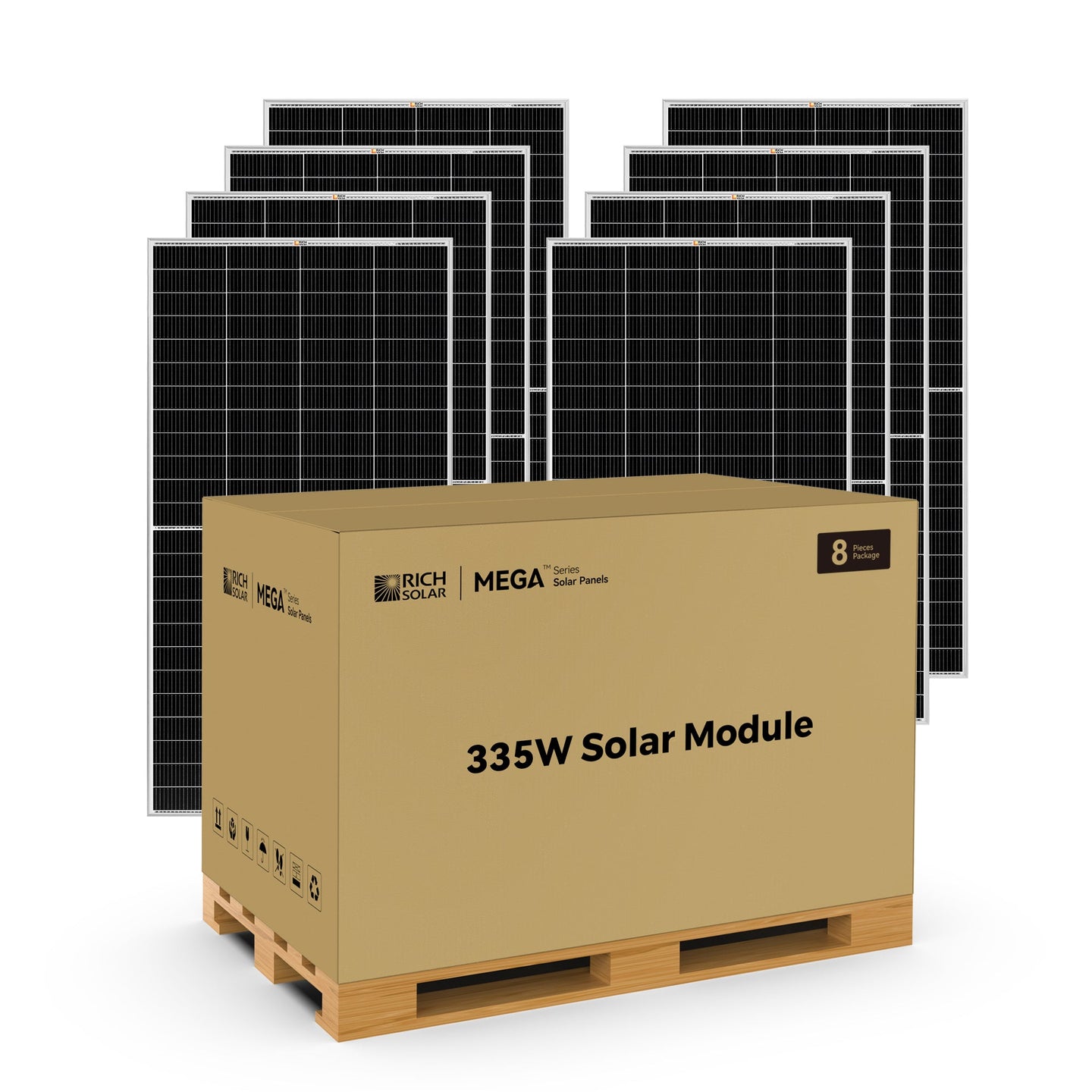

  • Ships on pallets, reducing handling damage risk for bulk orders.
  • Generates 11.5 amps and supports 24-volt batteries; can be wired in series or parallel.
  • Good low-light performance for early mornings, evenings, and cloudy days.
  • Durable construction: high transmission anti-reflective coated tempered glass and an anodized aluminum frame.

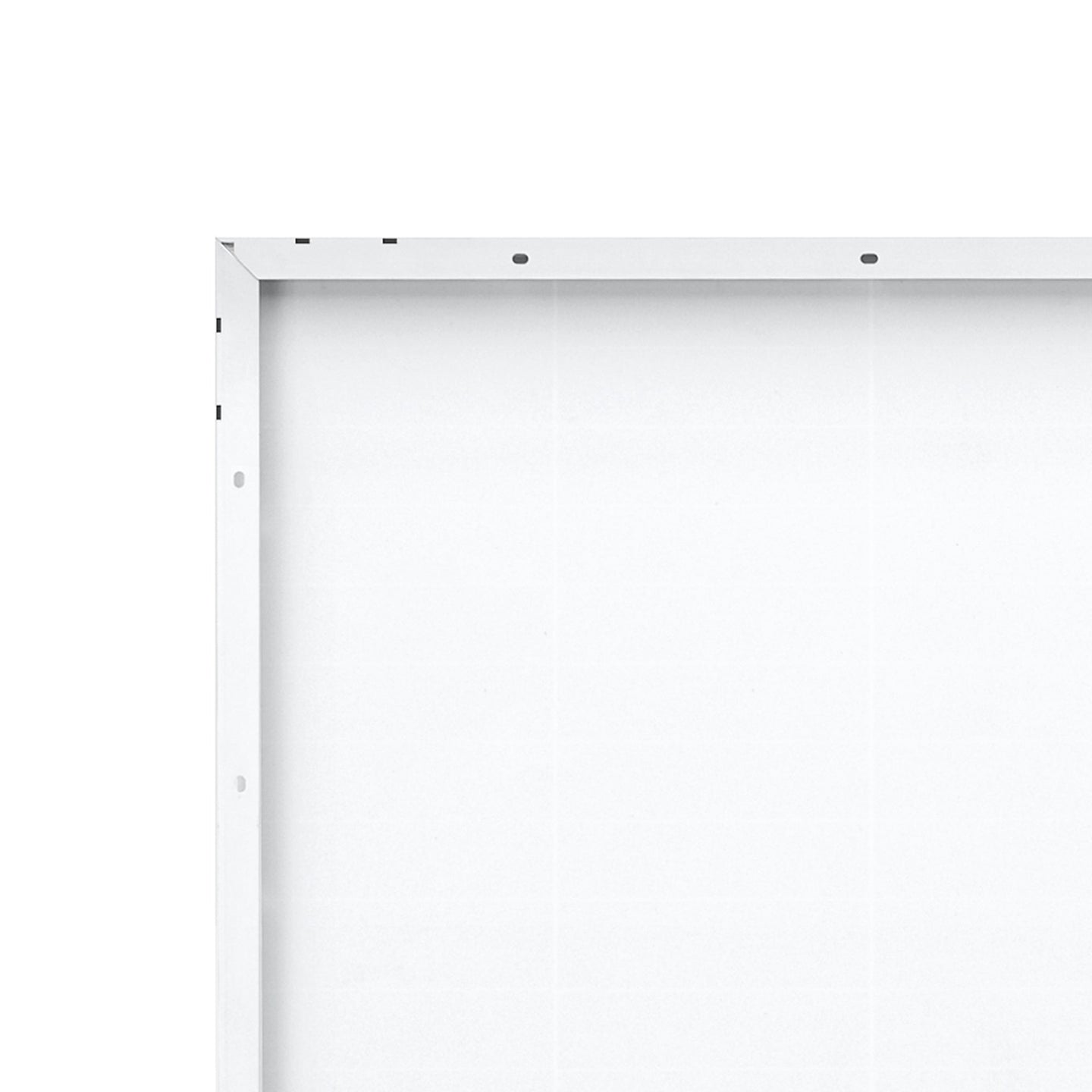

  • Fast and easy installation with 14 pre-drilled holes compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year power output warranty and 10-year workmanship warranty.

Features

  • Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.

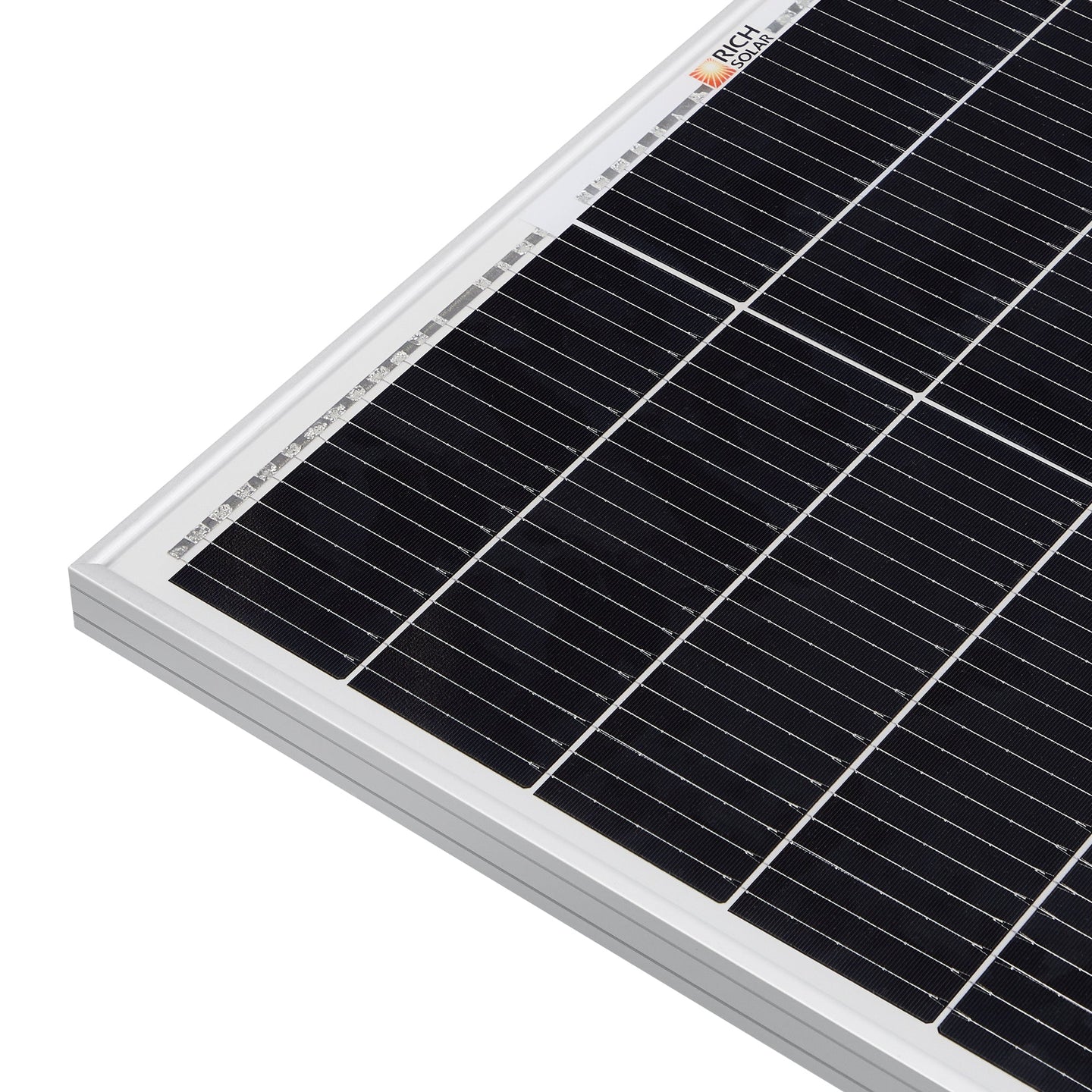

  • Built with strong high transmission anti-reflective coated tempered glass and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year power output warranty and a 10-year workmanship warranty.

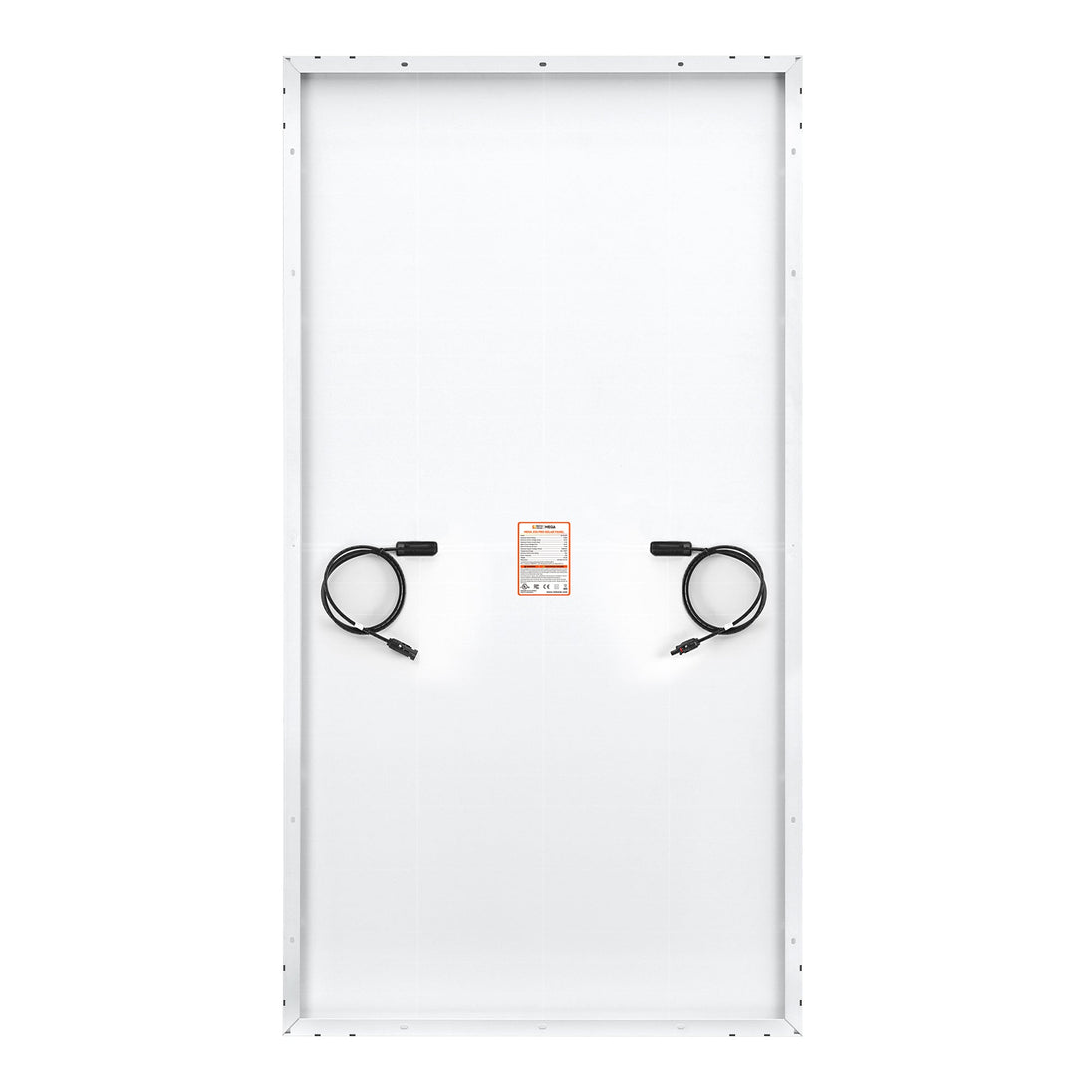

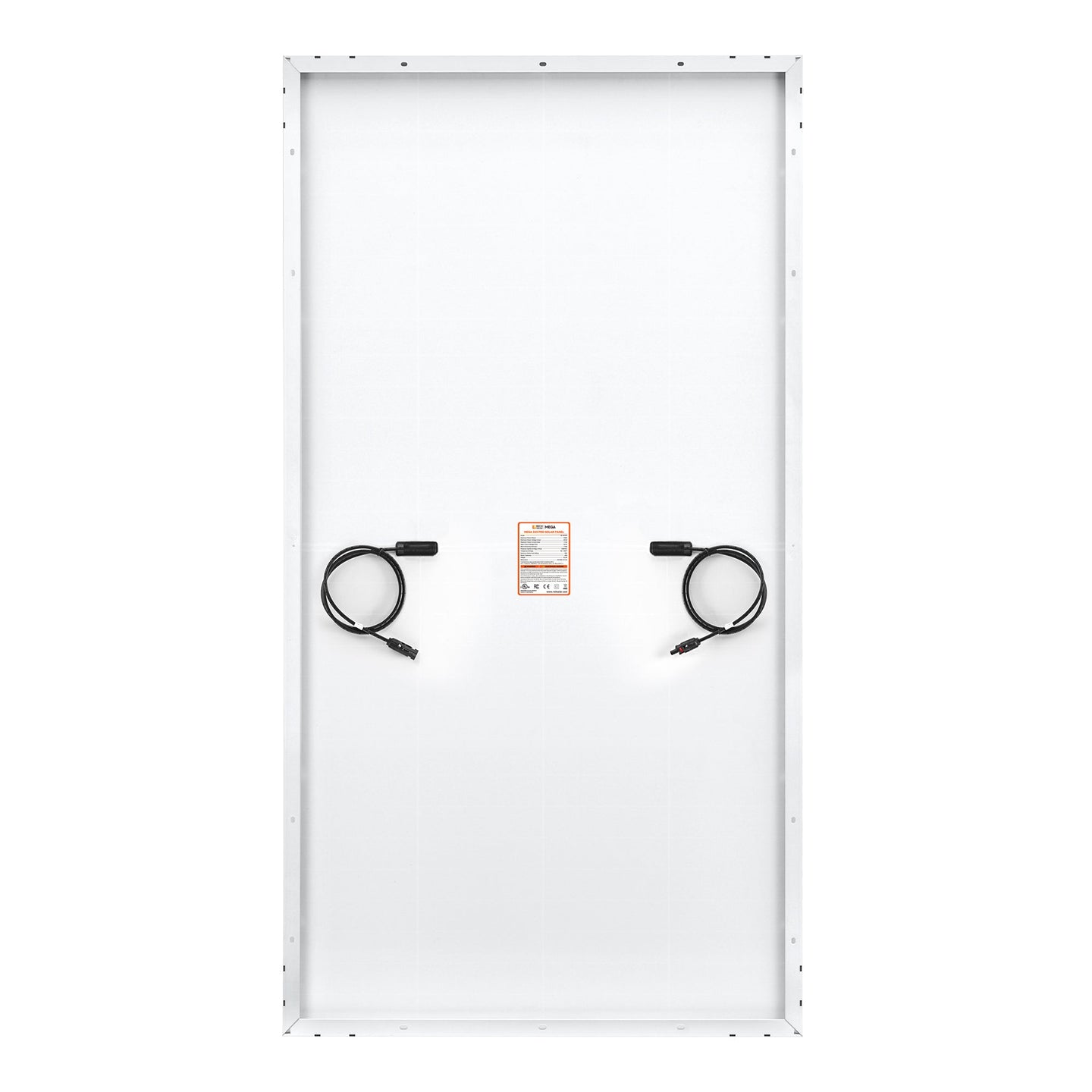

  • Built-in components: Panel leads (pair) 3 feet each; IP67-rated waterproof junction box; IP67-rated waterproof solar connectors; Bypass diodes built into the junction box.
  • Compatible with on-grid and off-grid inverters.

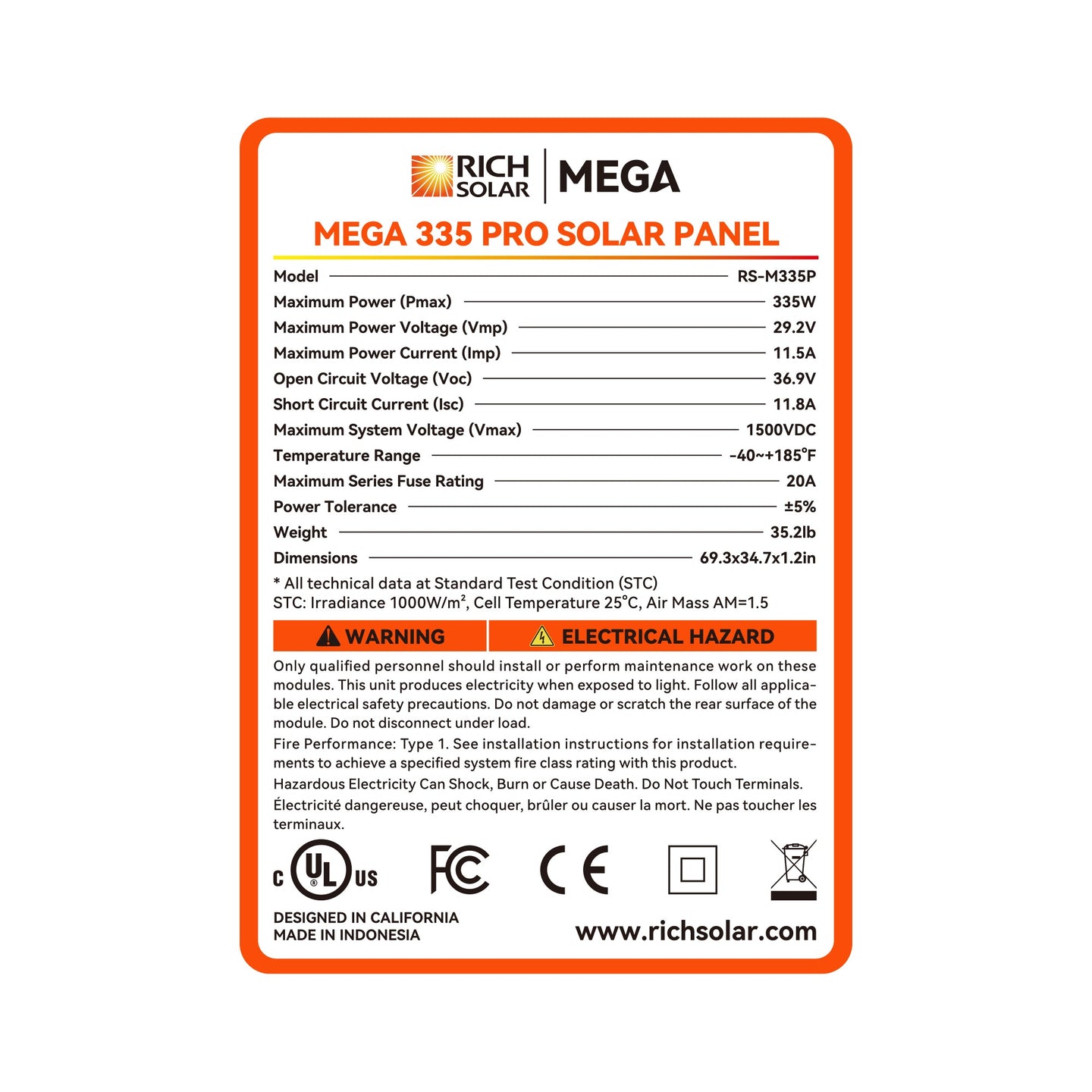

Specifications

  • Maximum Power(Pmax): 335W
  • Maximum Power Voltage(Vmp): 29.2V
  • Maximum Power Current(Imp): 11.5A
  • Open Circuit Voltage(Voc): 36.9V
  • Short Circuit Current(Isc): 11.8A
  • Maximum System Voltage(Vmax): 1500VDC
  • Temperature Range: -40°F ~ 185°F
  • Max Series Fuse Rating: 20A

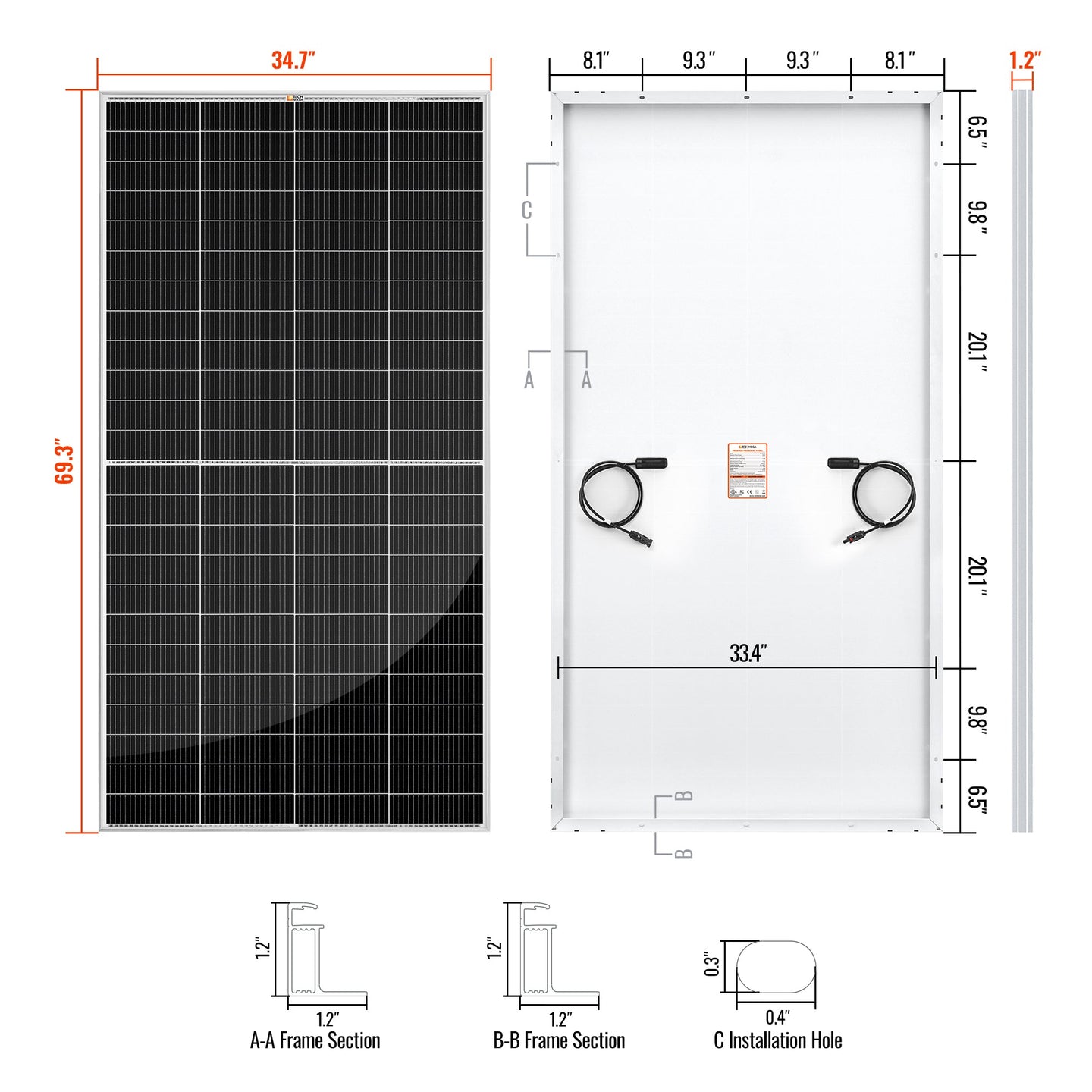

  • Dimensions: 69.3 x 34.7 x 1.2 in
  • Weight: 35.2 lb
