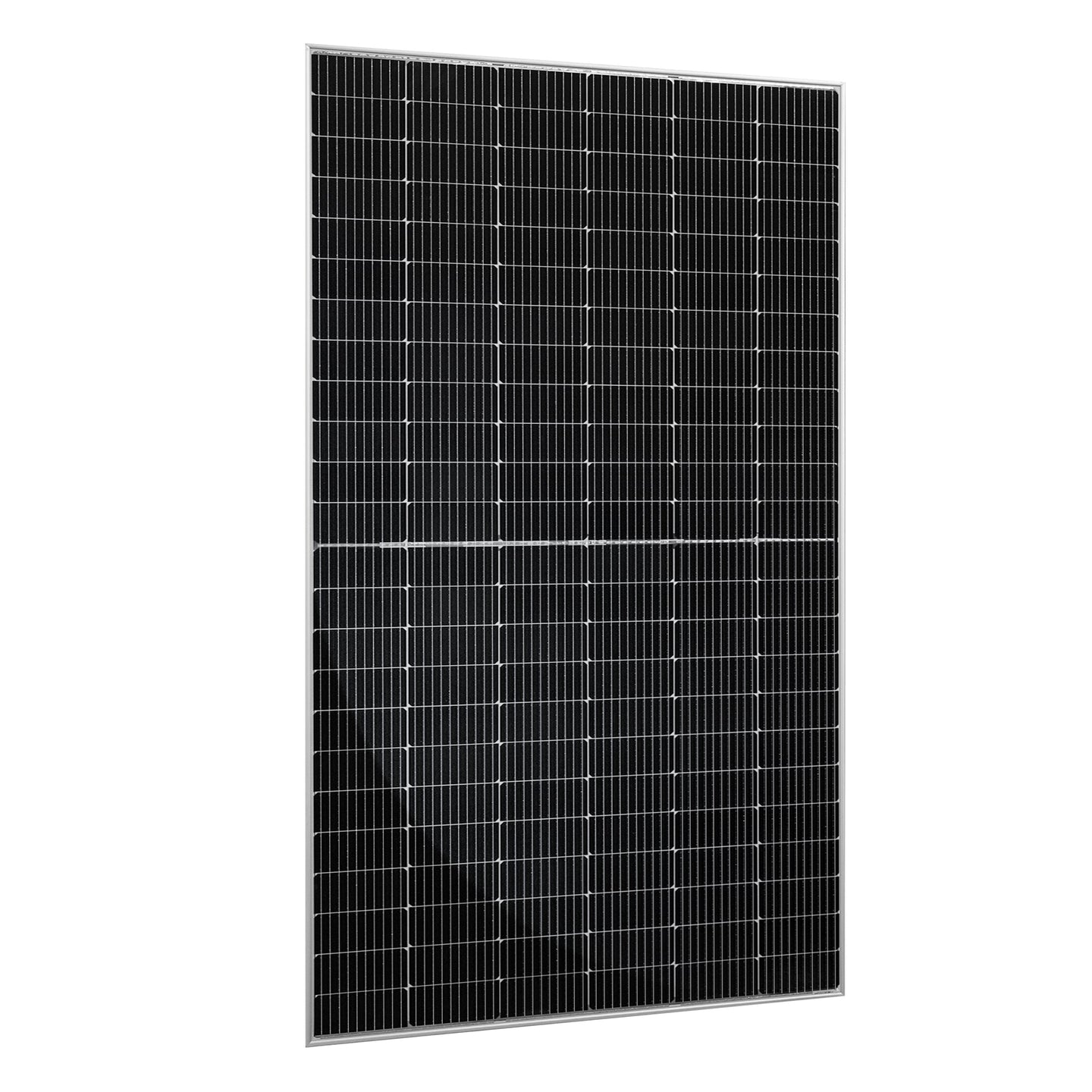

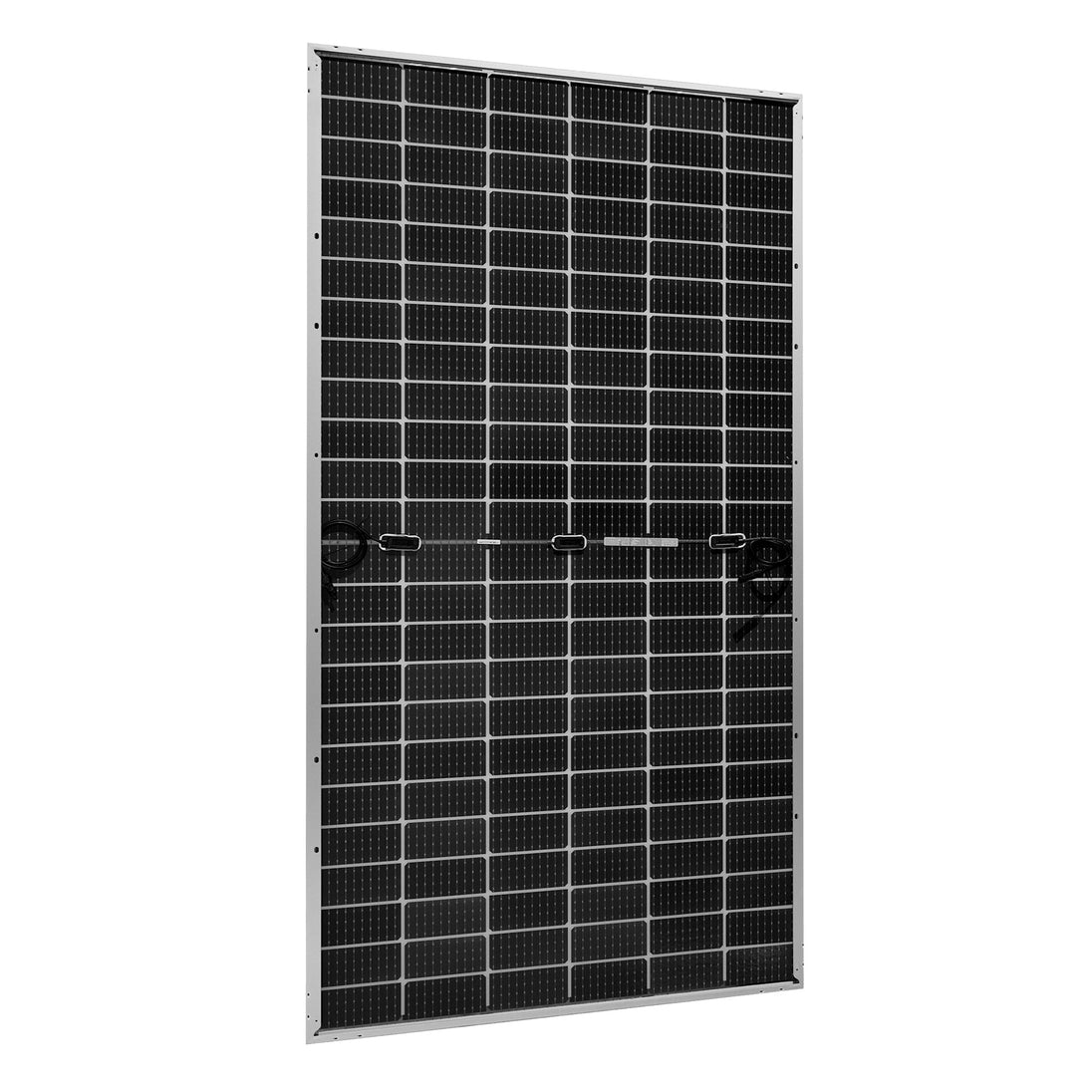

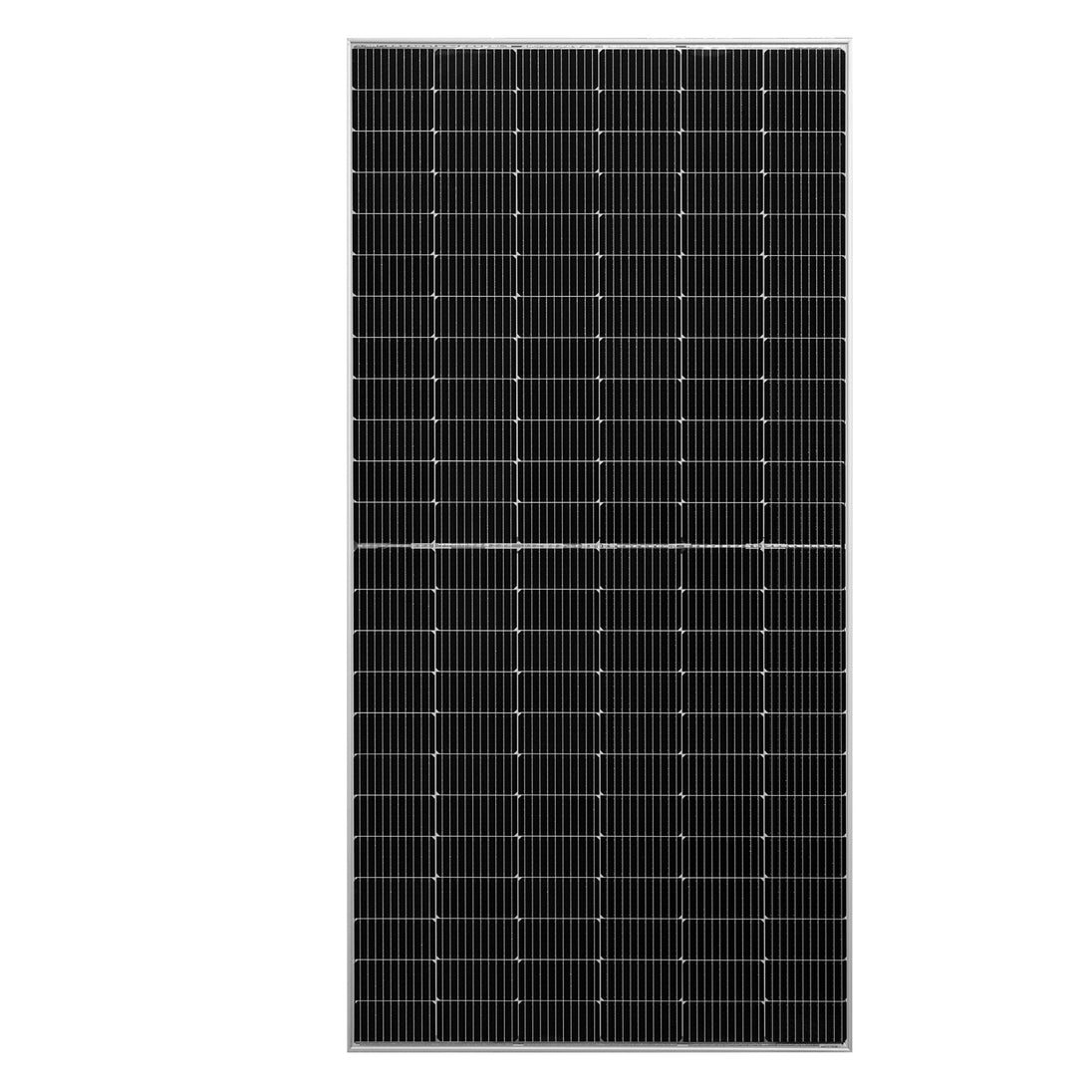

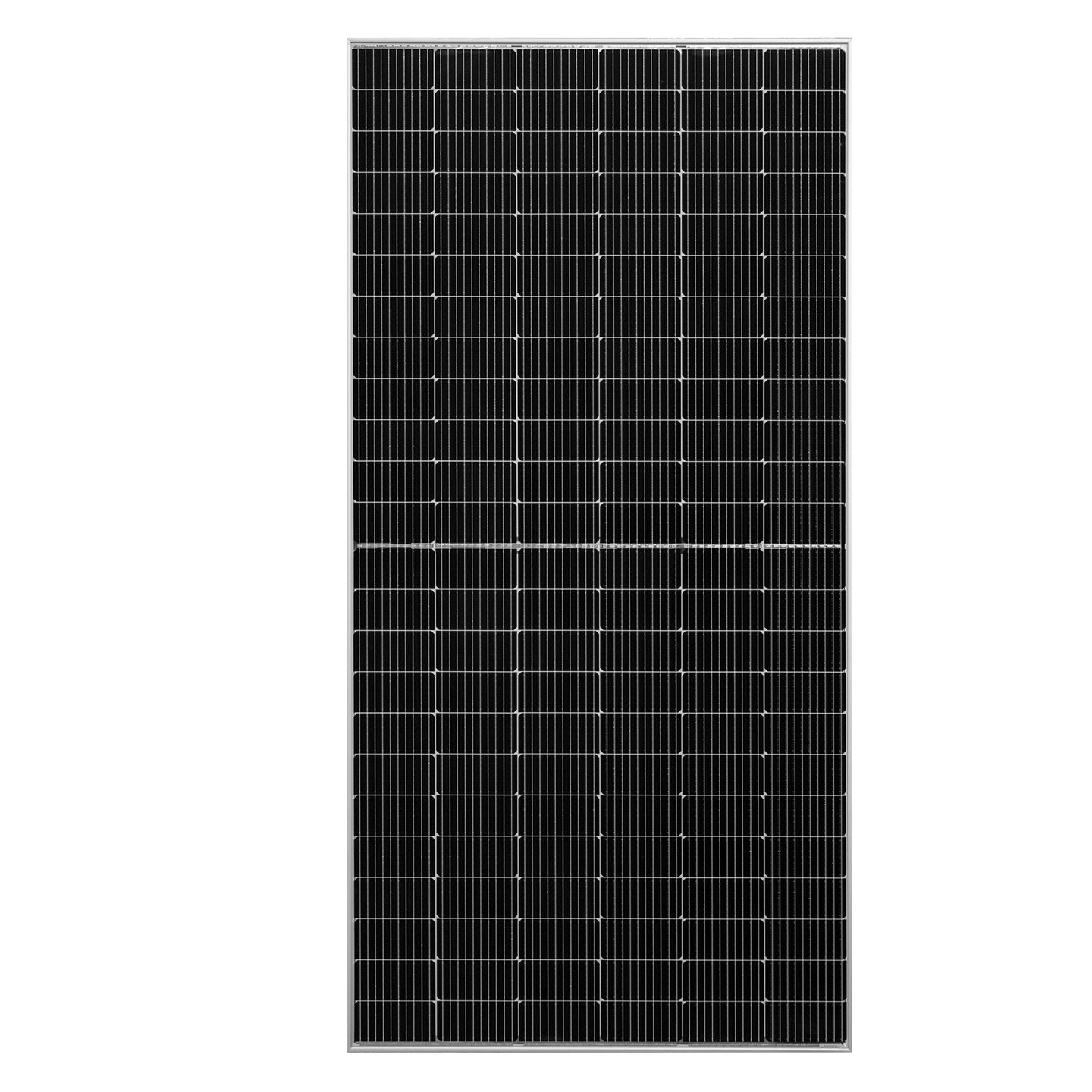

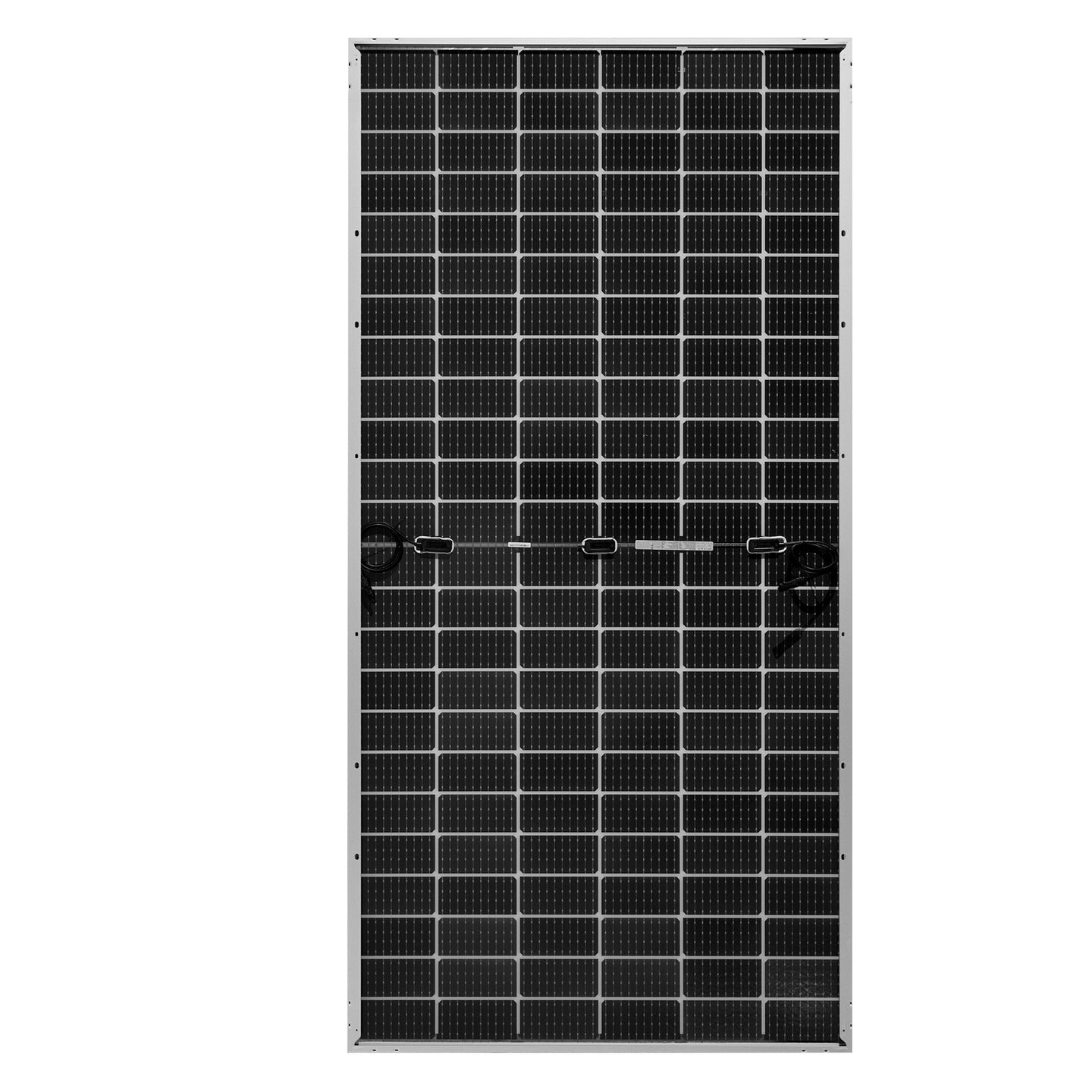

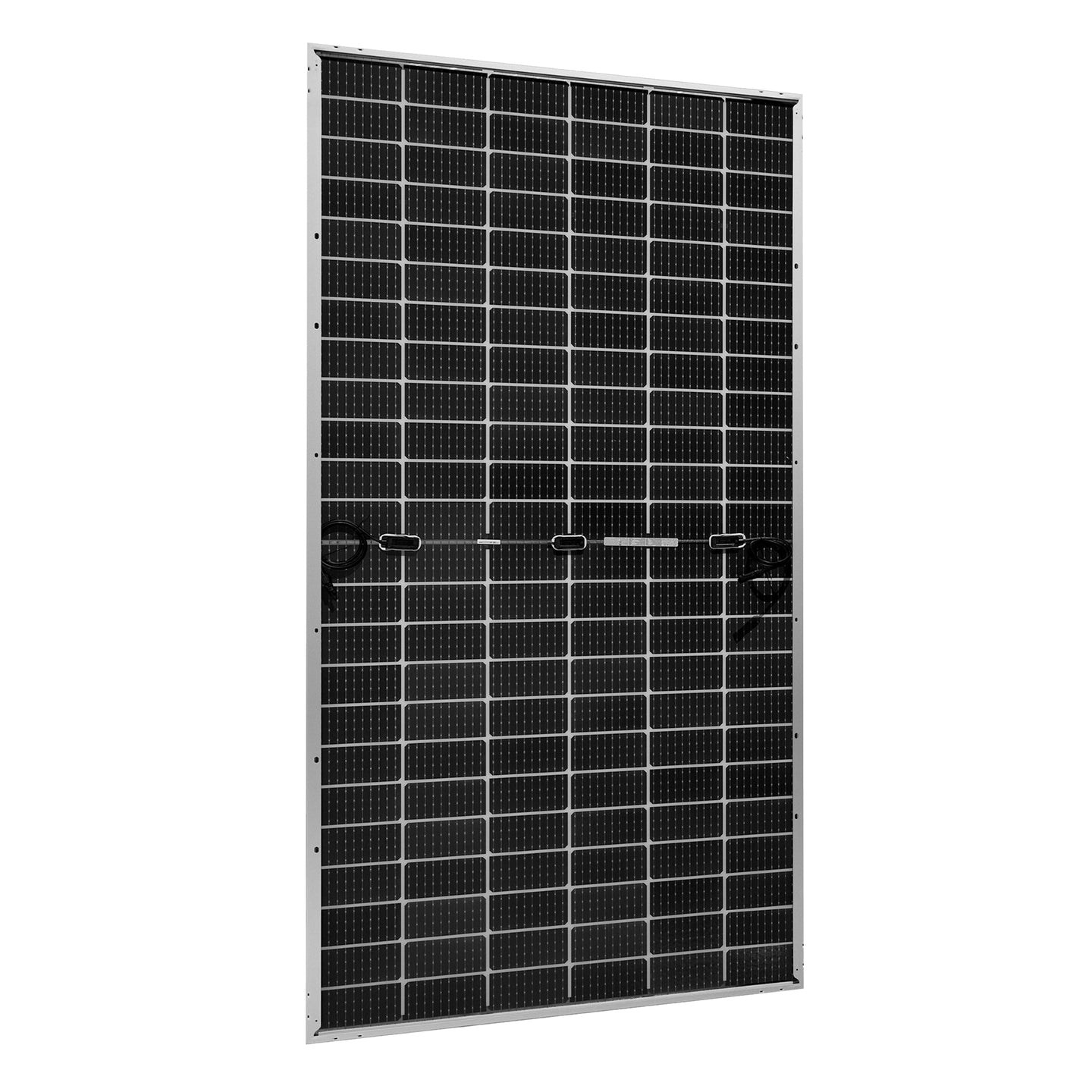

MEGA 550 Solar Panel

Overview

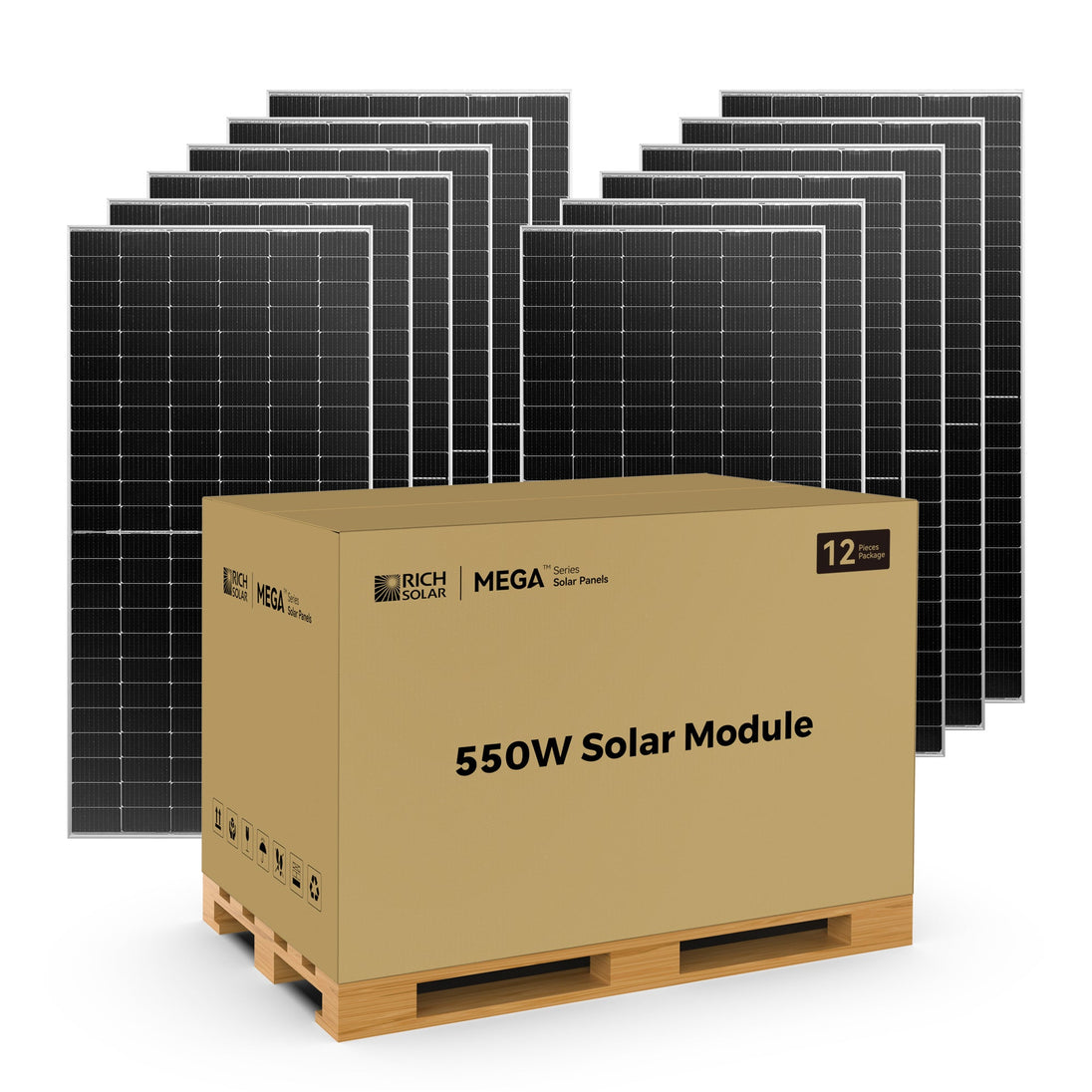

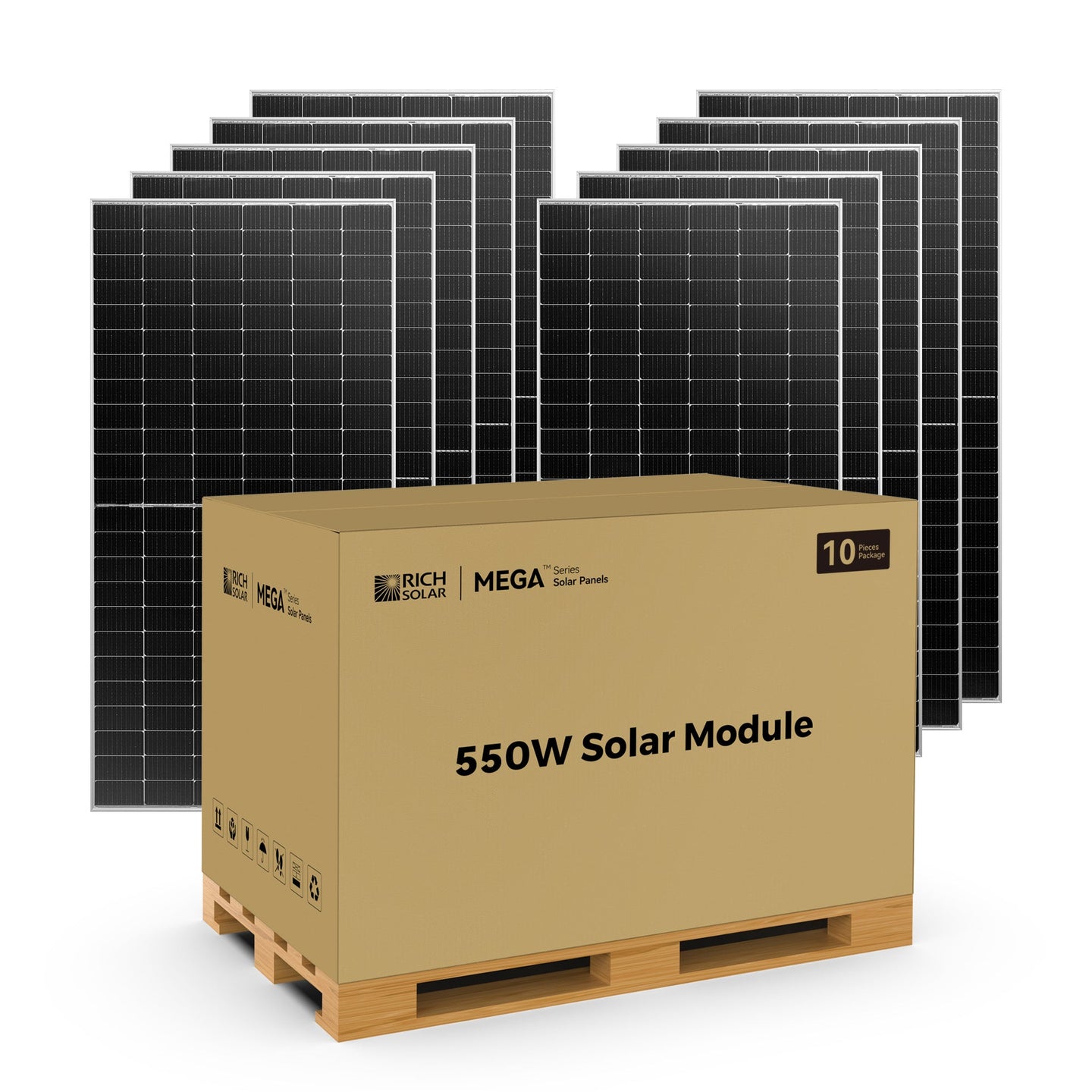

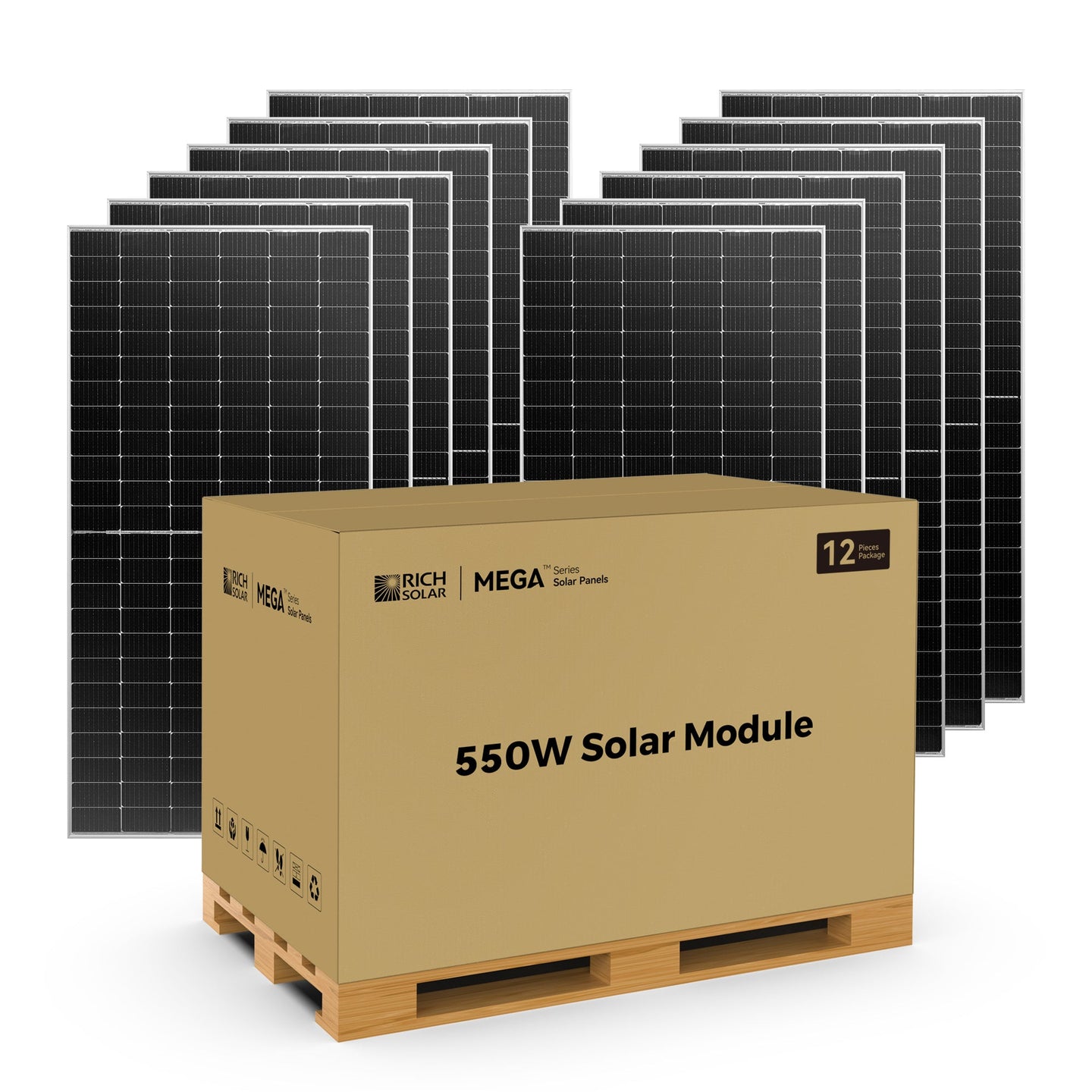

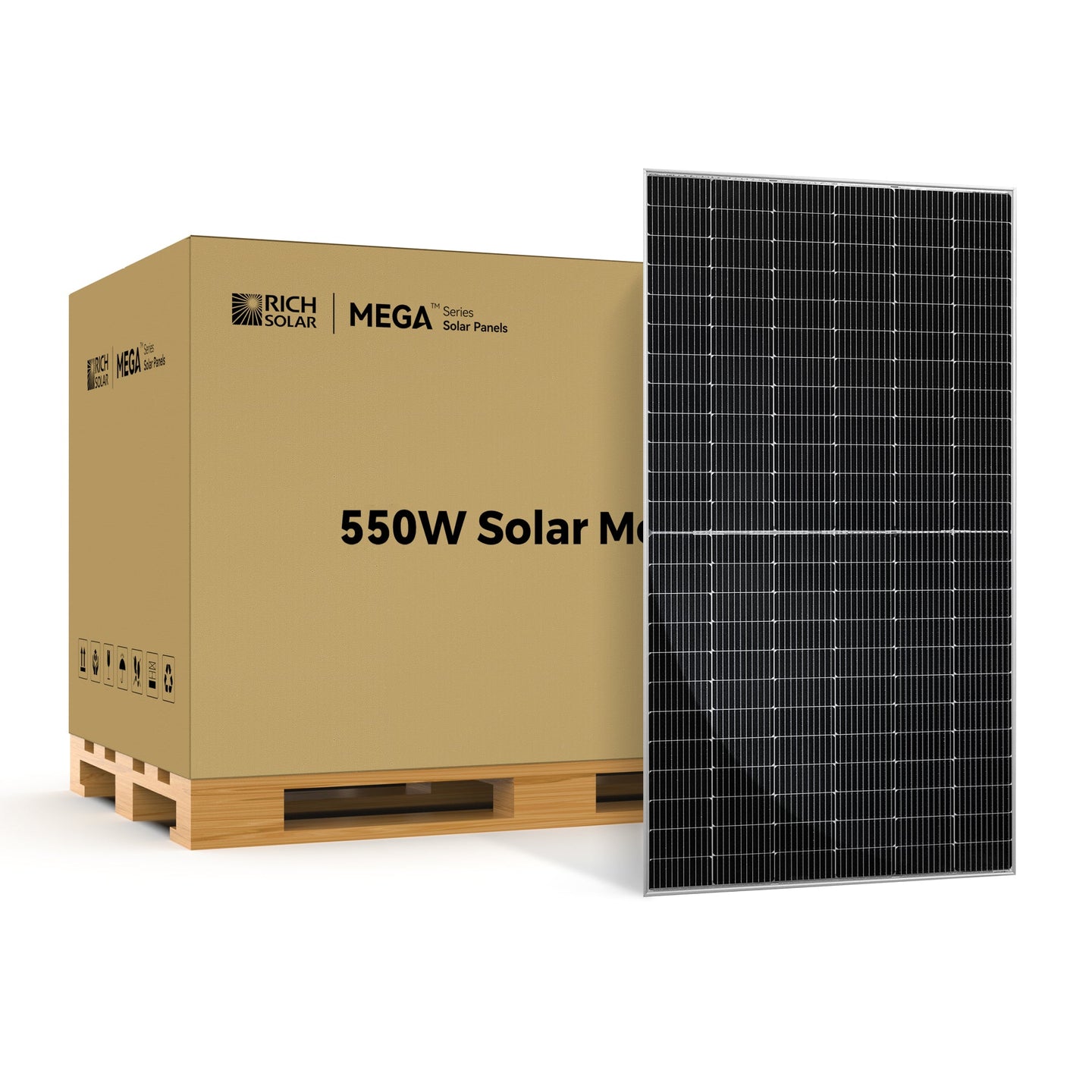

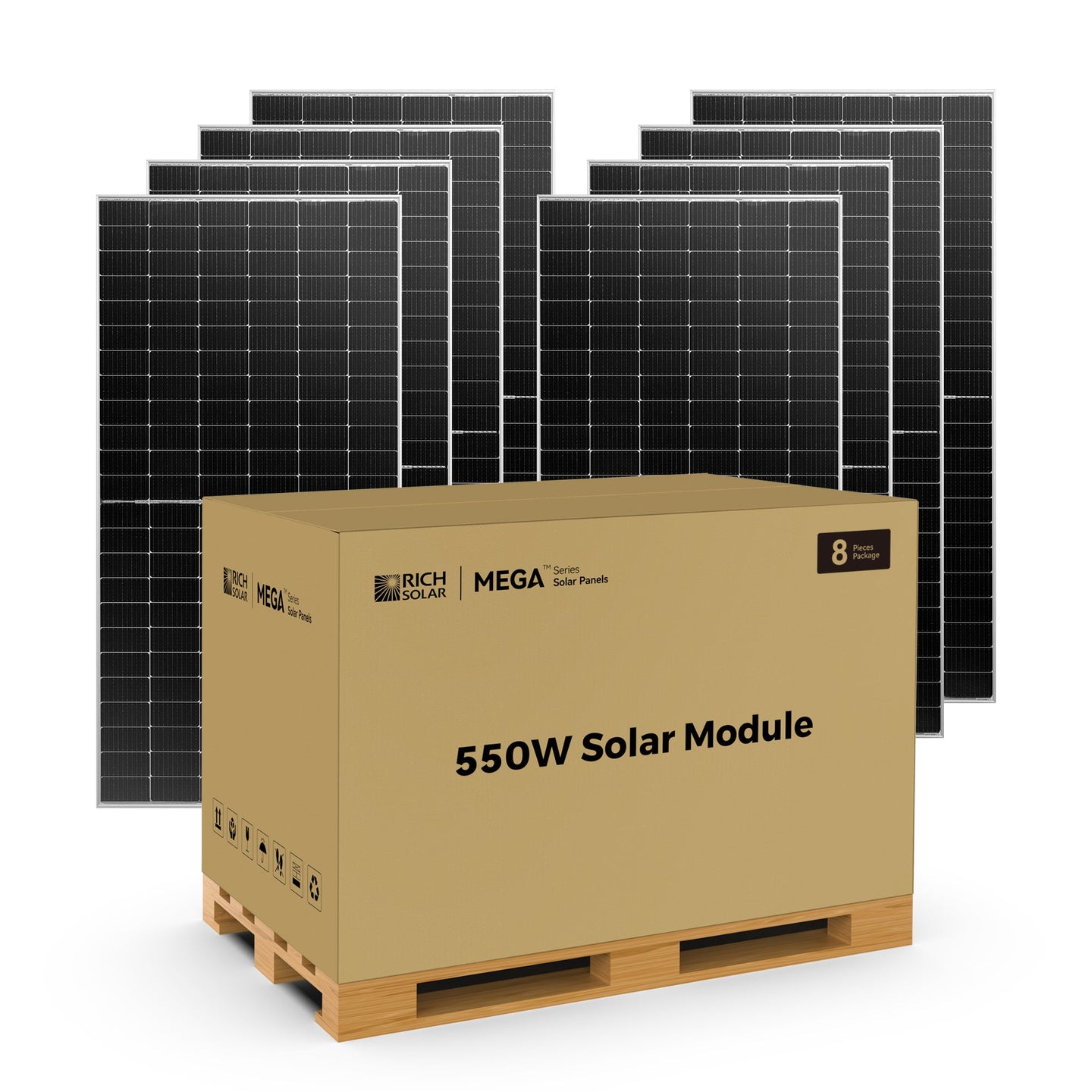

Pallet shipping only. For other quantities, call our sales team at 1-800-831-9889 or email sales@richsolar.com. The MEGA 550 solar panel maximizes power generation while saving space and reducing required equipment and cost for off-grid systems. With 550W of power and 24V energy generation, it can support residential, agricultural, or commercial solar setups. The anodized aluminum frame and tempered glass help it withstand tough environments.

Benefits

  • 550W output at 24V
  • Space-saving design for off-grid systems
  • Durable anodized aluminum frame and tempered glass
  • Excellent low-light performance
  • Plug-and-play junction box and standard quick-connect cables for series/parallel configurations
  • Reliability through extensive testing (over 30 in-house tests, PID resistant, 100% EL double inspection)
  • Certified for high wind, snow, and hail loads (2400 Pa wind, 5400 Pa snow, 35 mm hail at 97 km/h)
  • Warranty: 25-year limited power output, 10-year workmanship

Features

  • 10-busbar solar cell configuration
  • TOPCON technology
  • Lightweight anodized aluminum frame
  • High transmission, AR-coated tempered glass
  • Plug-and-play junction box
  • Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
  • IP68-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box
  • Excellent low-light performance on cloudy days, mornings, and evenings
  • Highly reliable due to stringent quality control (over 30 in-house tests including UV, TC, HF, and more; PID resistant; 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Specifications

  • Maximum Power (PMAX): 550W
  • Maximum Power Voltage (VMP): 41.96 V
  • Maximum Power Current (IMP): 13.11 A
  • Open Circuit Voltage (VOC): 49.90 V
  • Short Circuit Current (ISC): 14.00 A
  • Module Efficiency ?m: 21.3%
  • Max Series Fuse Rating: 30 A
  • Weight: 73.19 lb (33.2 kg)

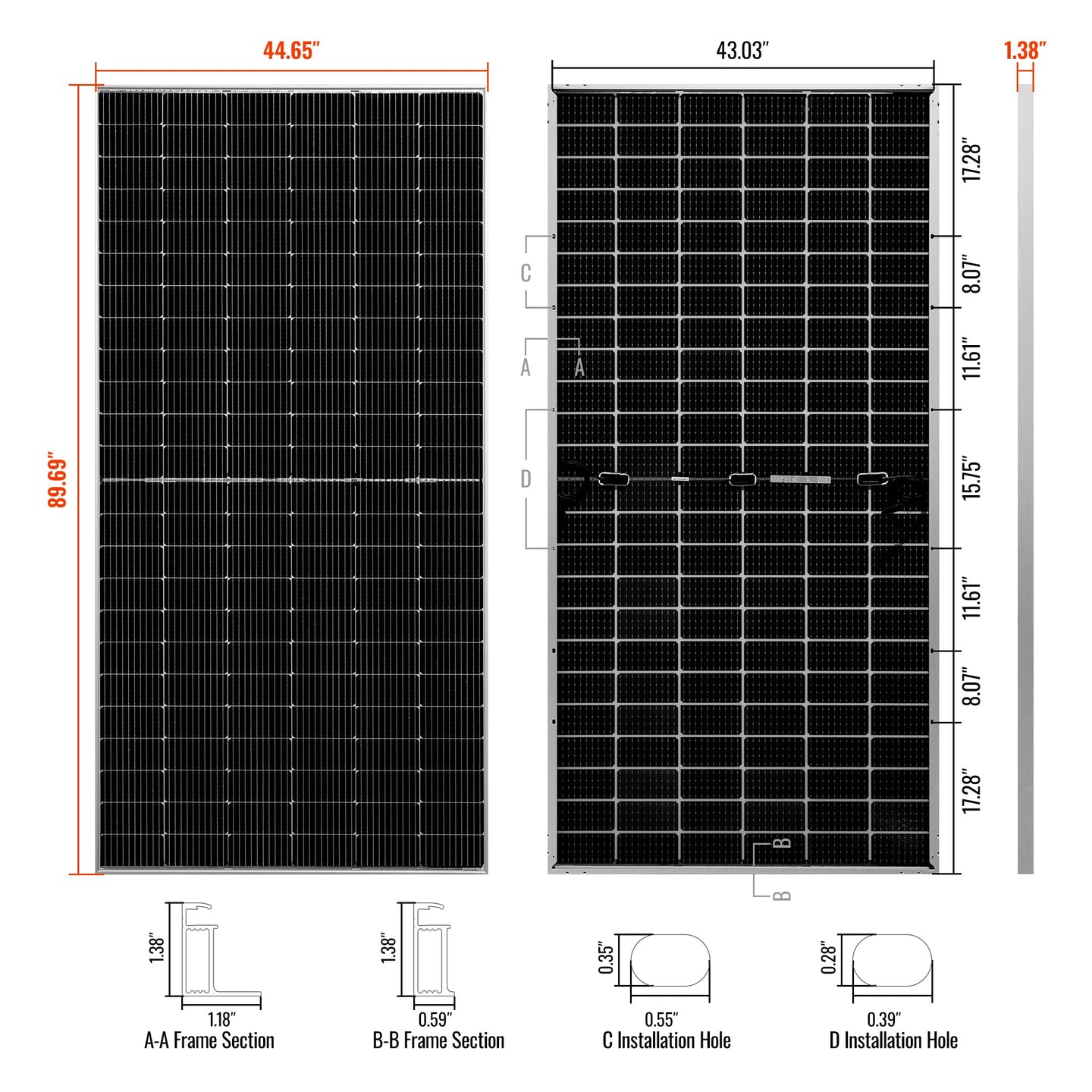

  • Dimensions: 89.69 × 44.65 × 1.38 in
