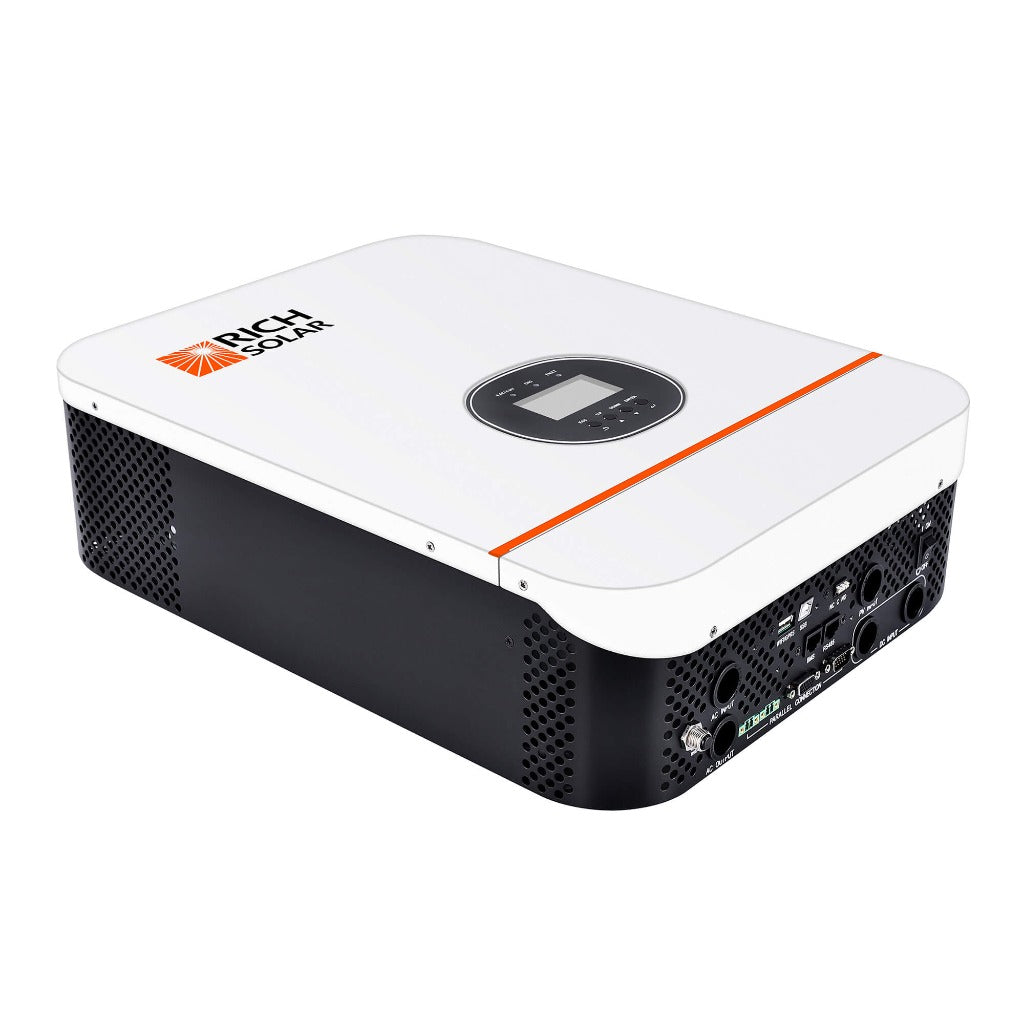

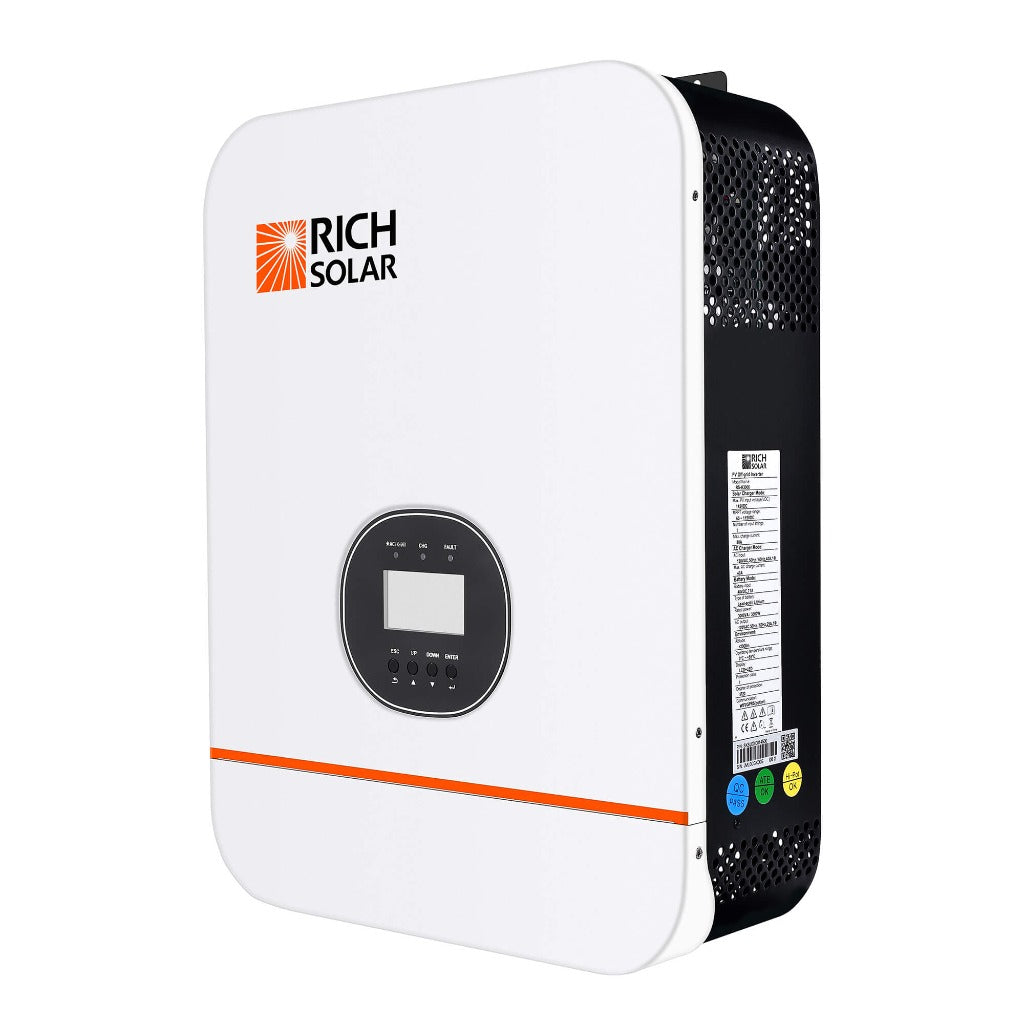

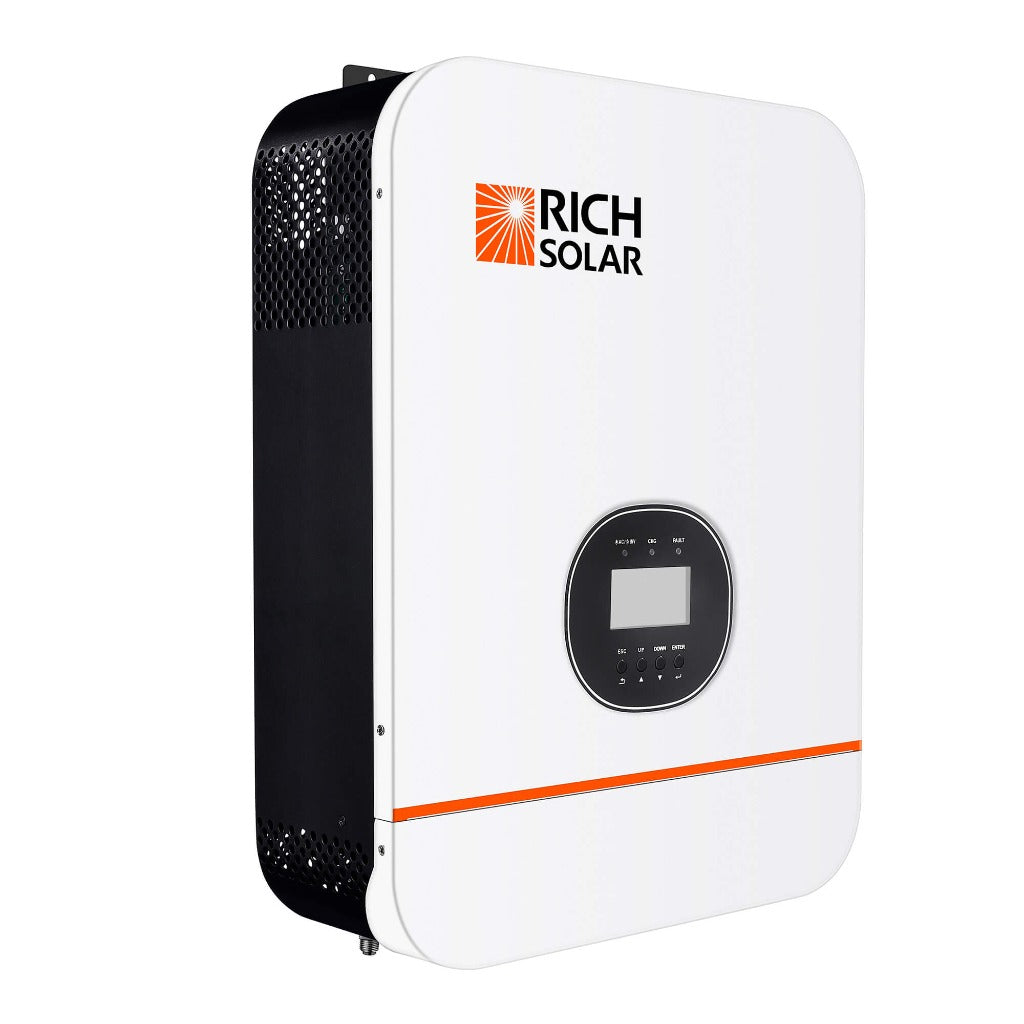

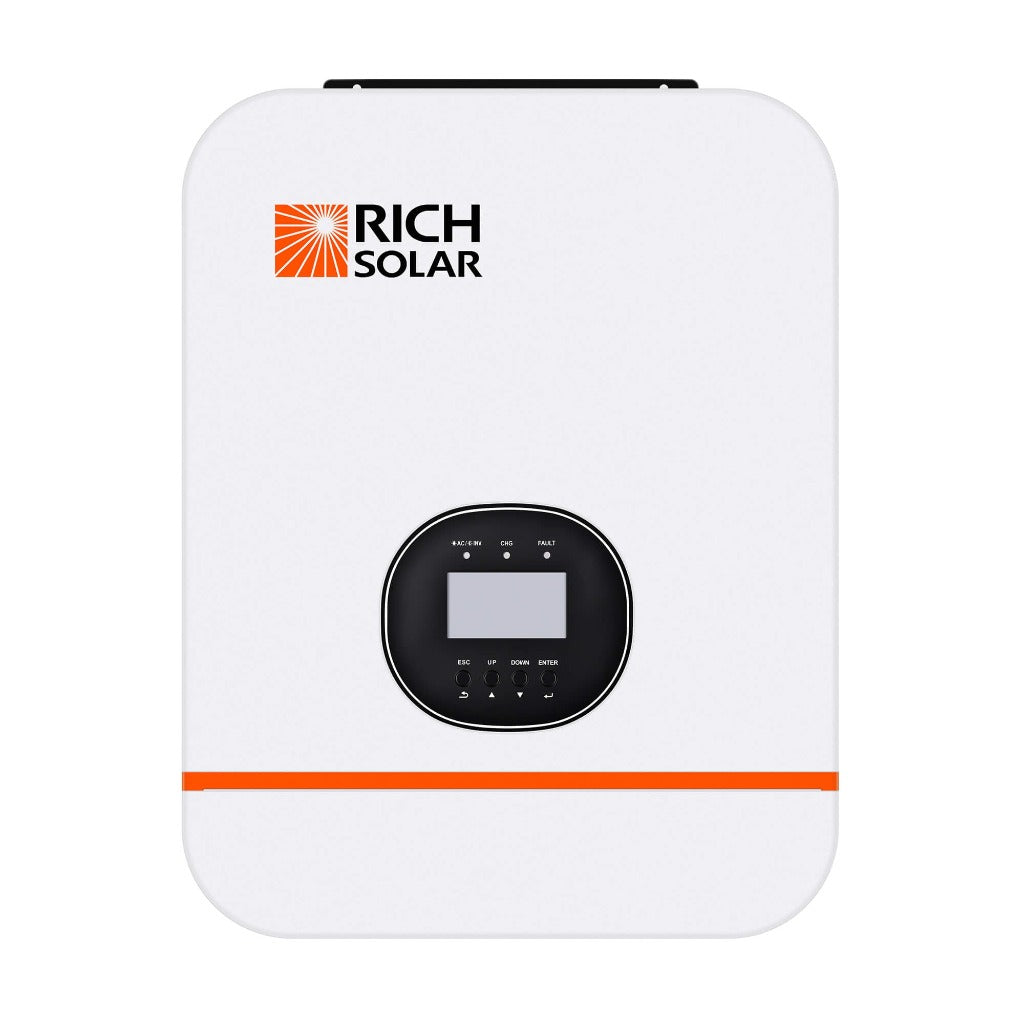

3000VA Pure Sine Wave Inverter System

Overview

A compact, high-efficiency inverter system for off-grid and backup power. It supports grid or solar input, parallel operation up to six units, and optional remote monitoring. Built for reliability in changing conditions.

Benefits

  • Delivers pure sine wave power for sensitive devices
  • Remote monitoring available (Wi?Fi/GPRS, optional)
  • Flexible input options: grid, solar, or generator
  • Easy to scale with parallel units (up to 6)
  • Integrated MPPT charge controller for efficient solar charging
  • 48V battery system and BMS communication via CAN/RS485
  • Configurable grid or solar input priority
  • Compact, lightweight high?frequency design
  • Protection against overload, short circuit and deep discharge
  • Compatible with mains voltage or generator power

Features

  • Pure Sine Wave Inverter

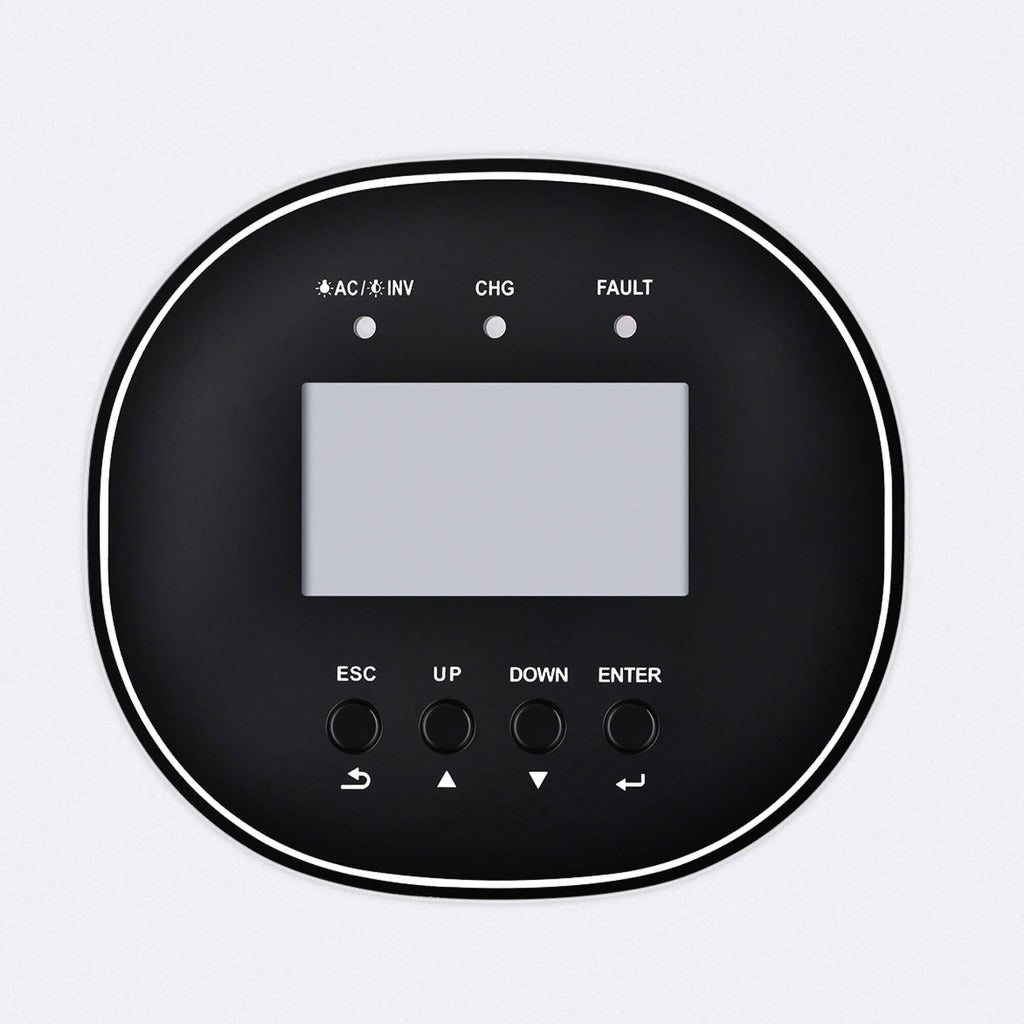

  • LED Display
  • Wi-Fi/GPRS Remote Monitoring (optional)
  • CAN/RS485 for BMS Communication
  • Integrated MPPT Charge Controller
  • Configurable Grid or Solar Input Priority
  • 48V Battery System
  • Compatible with Mains Voltage or Generator Power
  • High-Frequency Inverter with Small Size and Lightweight
  • Overload, Short Circuit and Deep Discharge Protection
  • Parallel Operation Up to 6 Units Off-grid Capabilities

Specifications

    • Rated Power: 3000VA/3000W
    • Parallel Capability: Yes
    • AC Voltage Regulation (Battery Mode): 120 VAC
    • Efficiency (Peak): 90%
    • Waveform: Pure Sine Wave
    • Transfer Time: 10ms Typical, 20ms Max @ Single <30ms @ Parallel
    • Weight: 25.4 Lb
    • Dimensions: 13.8" L x 5.1" W x 17.9" H
  • Solar Charger Input

    • PV Array MPPT Voltage Range: 60VDC ~ 115VDC
    • Maximum PV Array Open Circuit Voltage: 145VDC
    • Waveform: Pure Sine Wave
    • Max Solar Charge Current: 80A
    • Maximum Efficiency: 98%
    • Standby Power Consumption: <50W
  • AC Outlet Charger

    • Charge Current: Default: 30A, Max 40A
    • AC Input Voltage: 120VAC
    • Selectable Voltage Range: 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
    • Frequency Range: 50Hz/60Hz (Auto Sensing)
  • Operating Environment

    • Humidity: 5% to 95% Relative (Non-Condensing)
    • Operating Temperature: 0°C – 55°C
    • Storage Temperature: -15°C – 60°C
