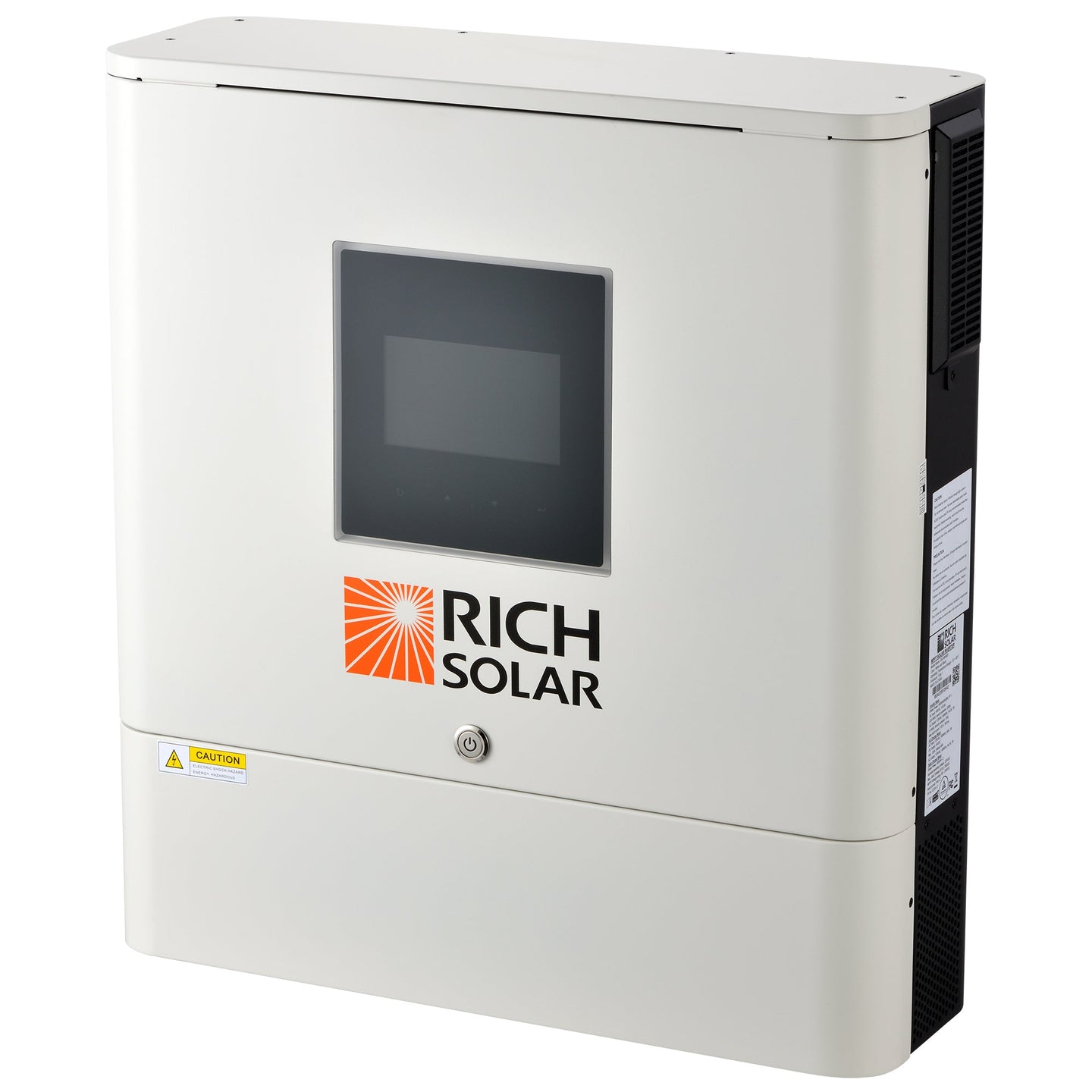

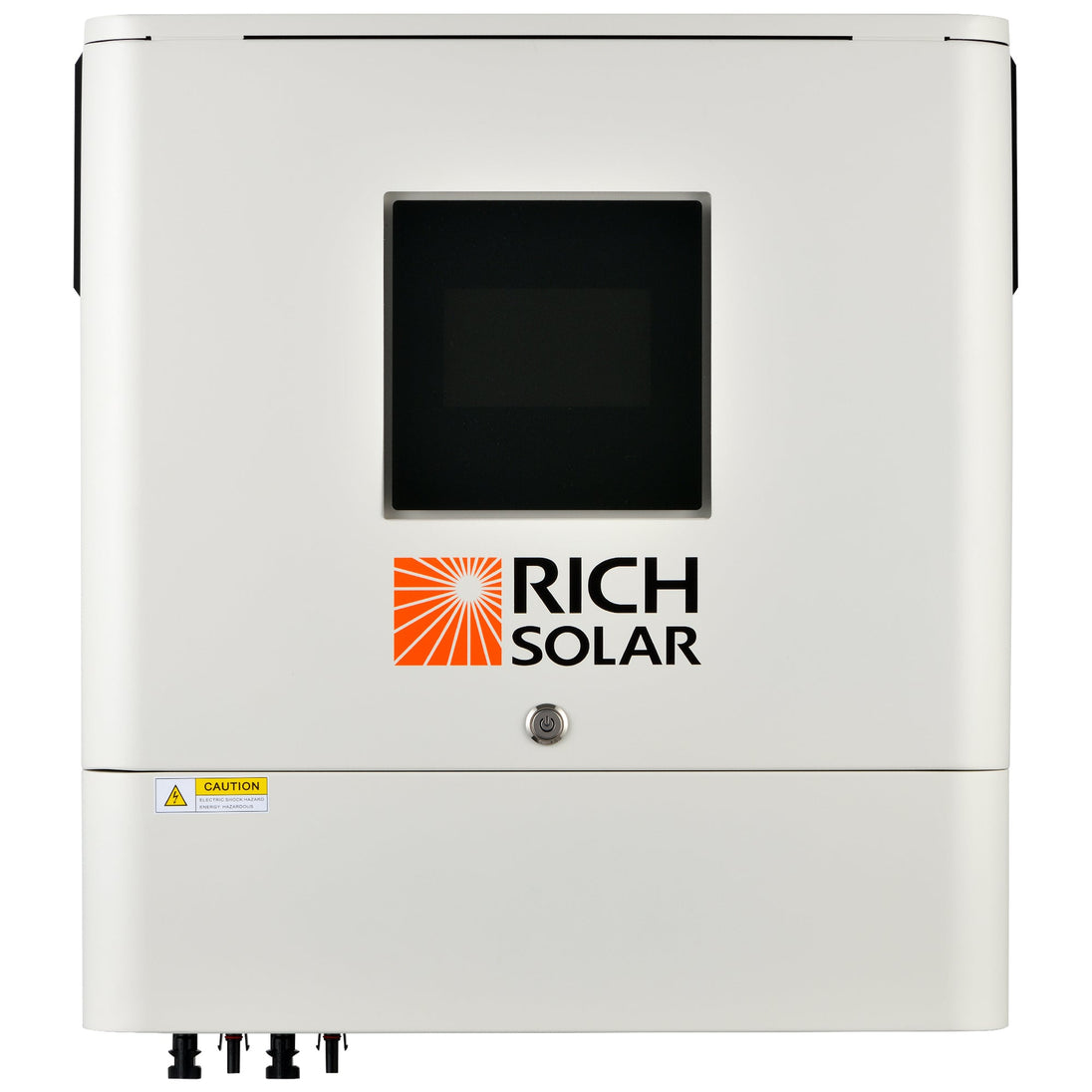

RICH SOLAR NOVA Series 6500S Inverter – Smart, Flexible & Powerful

Smarter Energy, Zero Compromise

The RICH SOLAR NOVA Series 6500S isn’t just an inverter—it’s your all-in-one power management solution. With Wi-Fi monitoring, parallel operation for serious loads, and a battery-optional design, this powerhouse delivers reliable energy for homes, businesses, or off-grid freedom seekers.

Benefits

• Smart Control, Anywhere – Monitor energy in real time with built-in Wi-Fi and the RICH SOLAR app (Android/iOS). Yes, your inverter is officially smarter than your coffee machine.

• Built for Heavy Loads – Push through 6500W continuous and up to 13kW surge—expandable to 39kW with parallel units. Translation: this thing laughs at heavy appliances.

• Battery Optional, Freedom Guaranteed – Run with or without batteries. Whether you’re light on loads or future-proofing with lithium, flexibility is built in.

• Peak Efficiency, Peak Performance – With MPPT control and 91% efficiency, your solar harvest gets a serious upgrade while protecting batteries for the long run.

• Pure Power, Pure Peace – Pure sine wave output ensures sensitive devices stay safe, quiet, and long-lasting.

• Safe & Secure – Overload, short-circuit, and over-temp protection keep everything running smoothly.

Features

• UL Certified for safety

• RGB status indication lights

• Built-in Wi-Fi for mobile monitoring

• USB On-the-Go data upload/download

• Event data logging inside inverter

• Reserved BMS communication port (RS485, CAN-BUS, RS232)

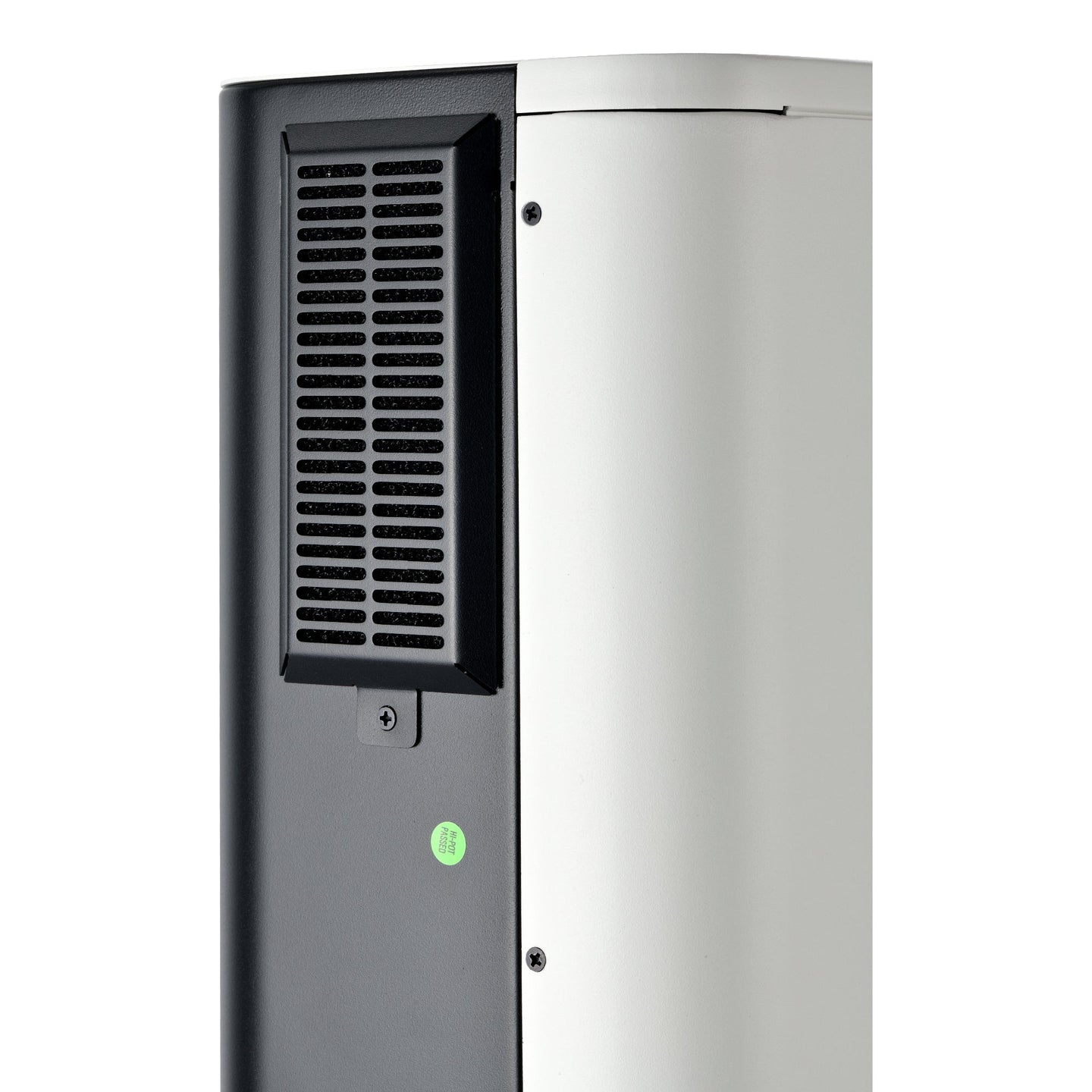

• Replaceable fan design for easy maintenance

• Battery-independent operation

• Configurable AC/PV output usage timer & prioritization

• Adjustable high-power charging current

• Adjustable input voltage range for appliances or computers

• Compatible with utility mains & generator input

• Built-in anti-dust kit

• Optional DC output for fans, LEDs, routers, etc.

• Parallel operation of up to 6 units

Specifications

Model: RS-H6548S
Rated Inverter Power: 6500VA / 6500W
Parallel Capability: Up to 6 units

Input

• Voltage: 120 VAC

• Selectable Voltage Range: 90–140 VAC (computers), 80–140 VAC (appliances)

• Frequency Range: 50/60 Hz (auto sensing)

Output

• AC Voltage Regulation: 120 VAC ±5%

• Surge Power: 13,000VA

• Peak Efficiency: 91%

• Transfer Time: 10 ms (computers), 20 ms (appliances)

• Waveform: Pure Sine Wave

• No Load Consumption: <75W

• DC Voltage: 12 VDC ±5%, 100W

Battery

• Battery Voltage: 48 VDC

• Float Charging Voltage: 54 VDC

• Overcharge Protection: 66 VDC

Solar Charger & AC Charger

• Charger Type: MPPT

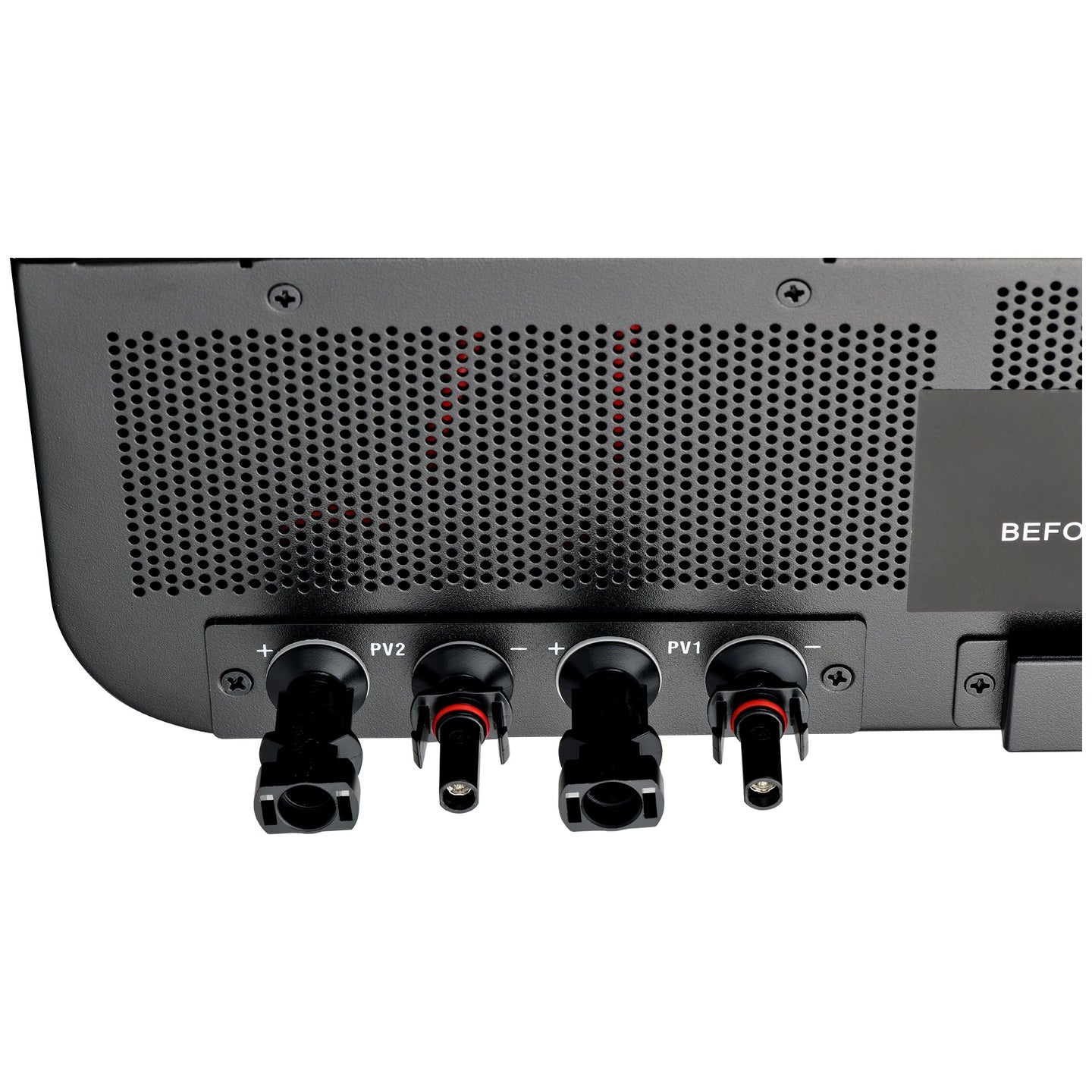

• Max PV Array Power: 8000W (2x 4000W)

• MPPT Operating Range: 90–230 VDC

• Max PV Open Circuit Voltage: 250 VDC

• Max Solar Charge Current: 120A

• Max AC Charge Current: 120A

Physical

• Dimensions (D x W x H): 6.2" x 19.8" x 20.9"

• Net Weight: 44 lbs

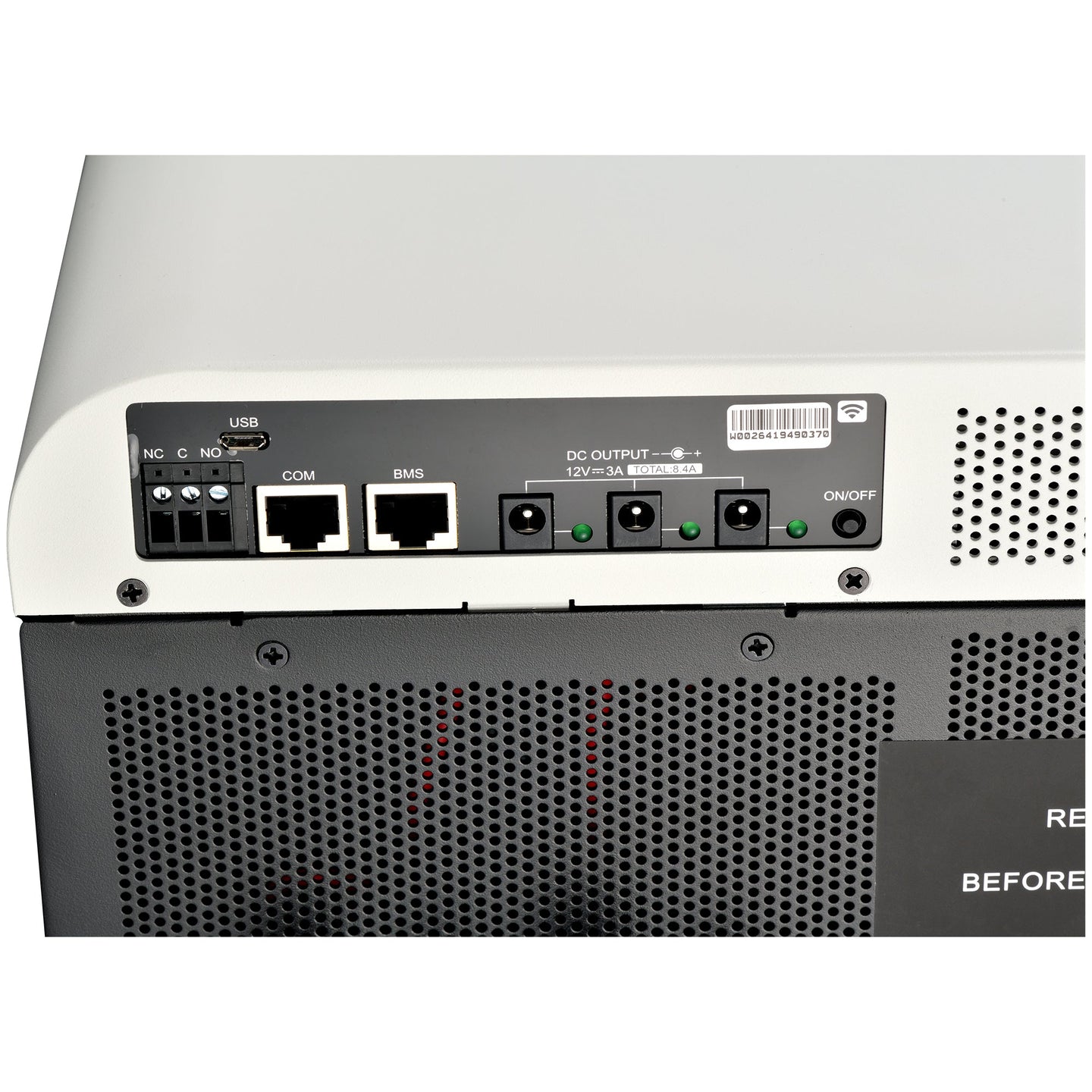

• Communication: USB / RS232 / RS485 / Wi-Fi / Dry-contact

Operating Environment

• Humidity: 5%–95% (non-condensing)

• Temperature: 14°F–104°F (operation), 5°F–140°F (storage)

Standard

• Compliance: UL Certified
