20 Watt Mono Solar Panel Black by Rich Solar

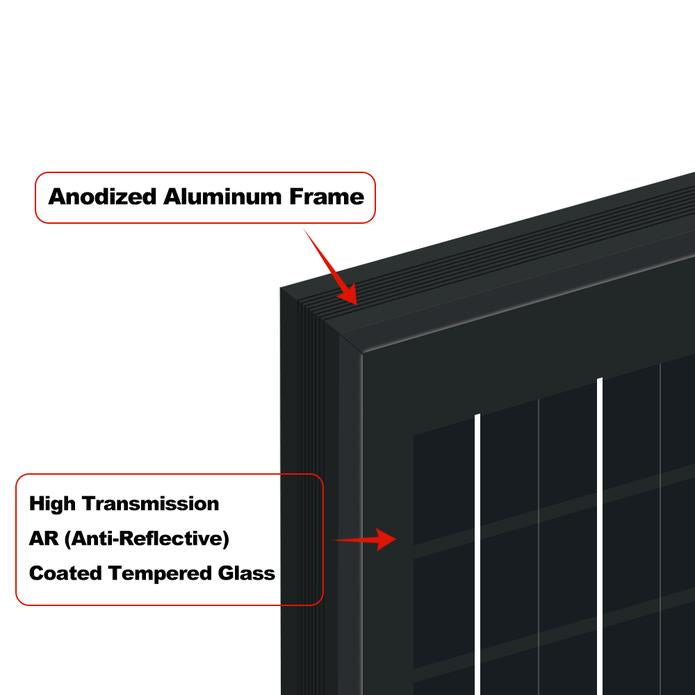

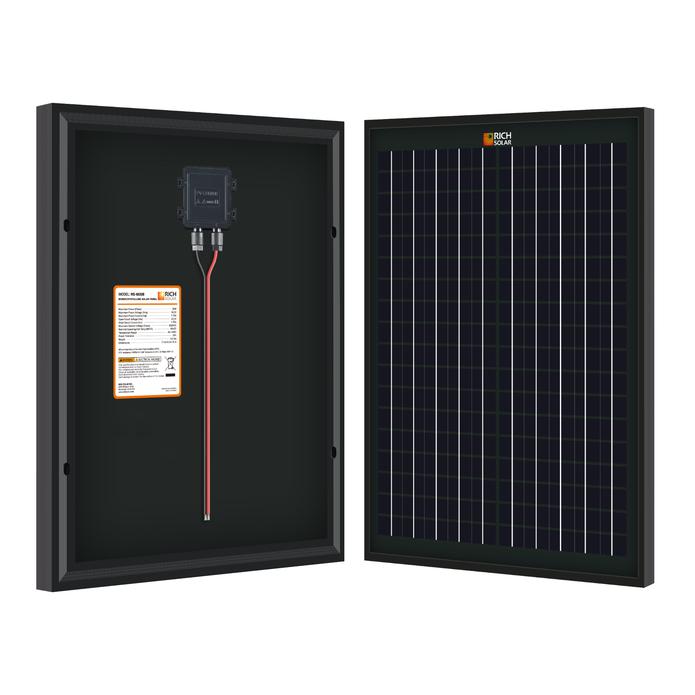

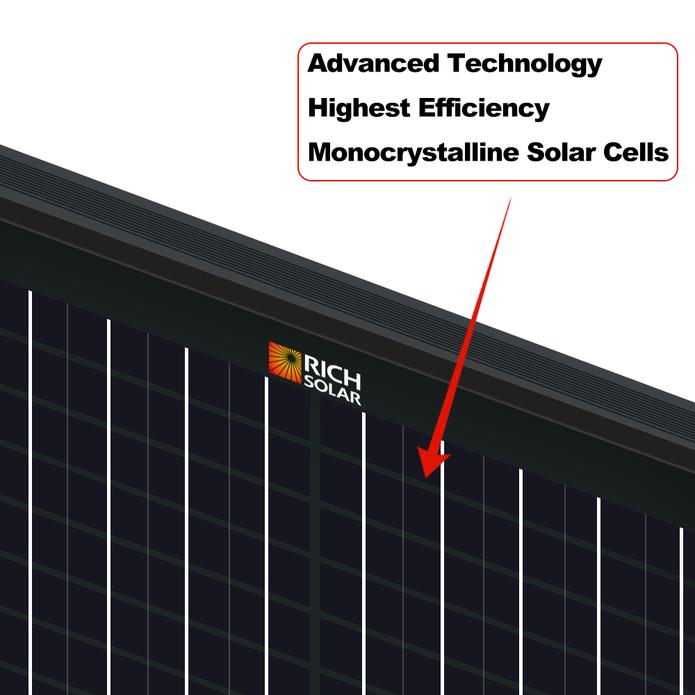

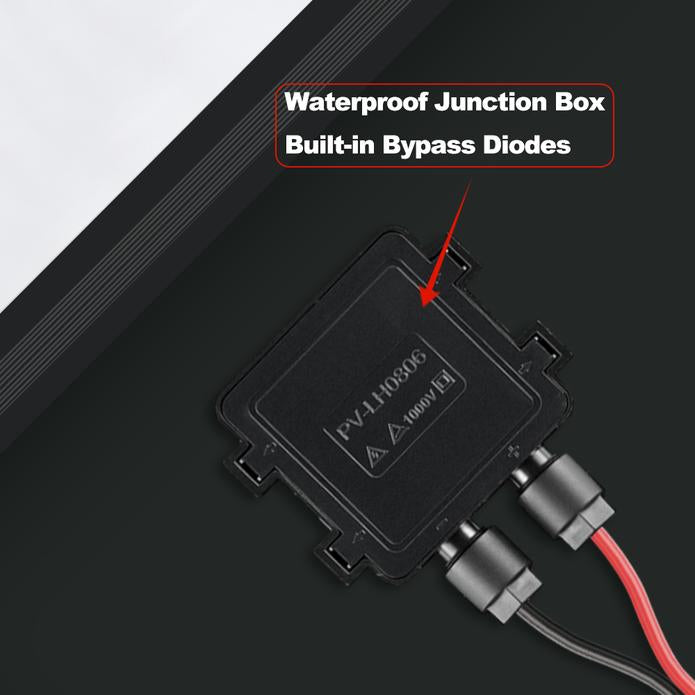

The 20-watt Mono Solar Panel Black by Rich Solar is now available! Waterproof! works in Series or in Parallel. Compatible with Rich Solar Parallel Connectors, Rich Solar Cable from Solar Panel to charge Controller and any Model of Rich Solar panels. With 4 Pre-drilled Mounting holes for easier installation and high Transmission AR (Anti-Reflective) Coated Tempered Glass and Ionized Aluminum Frame. Has a waterproof Junction Box with built-in Bypass Diodes with advanced technology and the highest efficiency Monocrystalline Solar Cells.

PRODUCT OVERVIEW

Features

  • 12V off-grid solar panel.
  • 0~+5W guaranteed positive power output.
  • IP 65 or IP 67 rated.
  • Built with strong tempered glass and aluminum frame.
  • Certified to withstand challenging environmental conditions.
  • Excellent low light performance on cloudy days, mornings, and evenings.

Installation

  • Easy installation and handling of various applications.

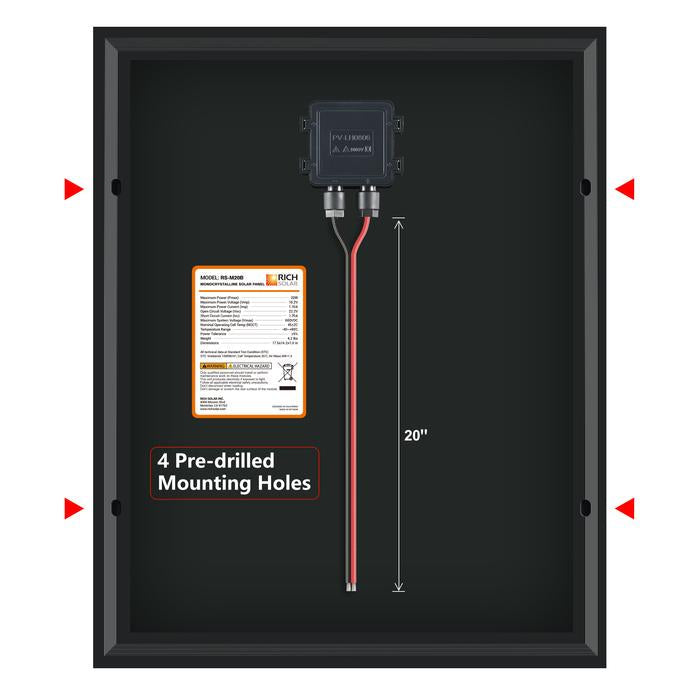

  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
Warranty
  • 25 years 80% output power.
  • 5 years of materials and workmanship.
  • 1-year materials for accessories.
Built-in Components
  • RICH SOLAR 20 Watt Monocrystalline Solar Panel
  • Panel Lead: 12AWG
  • IP65 Rated waterproof junction box
  • IP67 Rated waterproof solar connectors

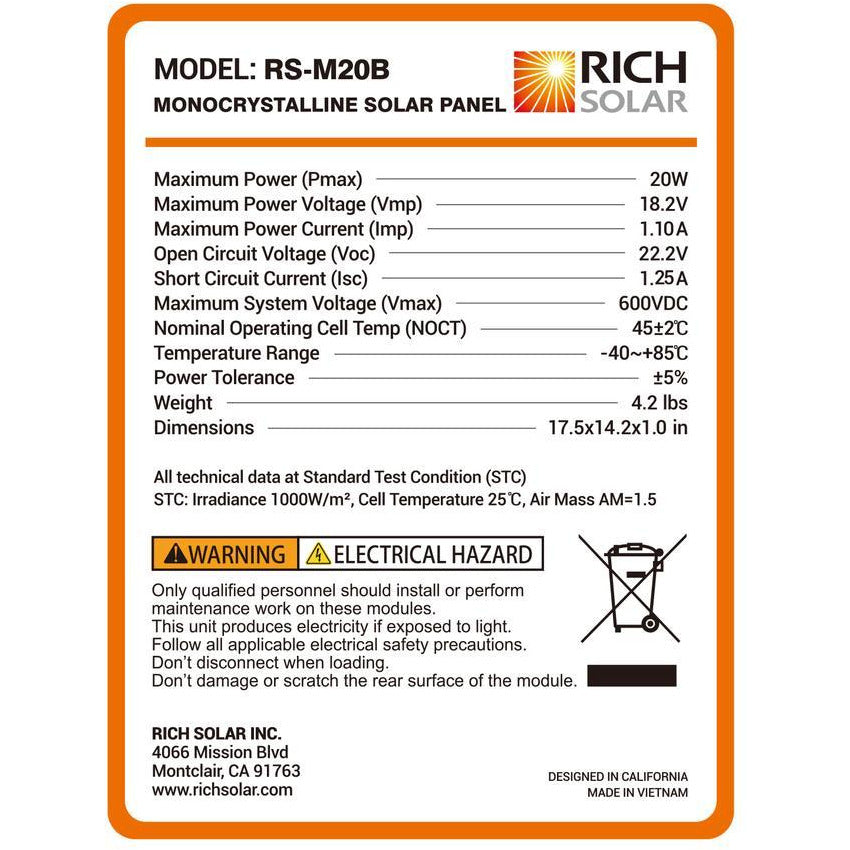

Specifications
  • Maximum Power(Pmax): 20W
  • Maximum Power Voltage(Vmp): 18.2V
  • Maximum Power Current(Imp): 1.10A
  • Open Circuit Voltage(Voc): 22.2V
  • Short Circuit Current(Isc): 1.25A
  • Maximum System Voltage(Vmax): 600VDC
  • Weight: 4.2 lbs

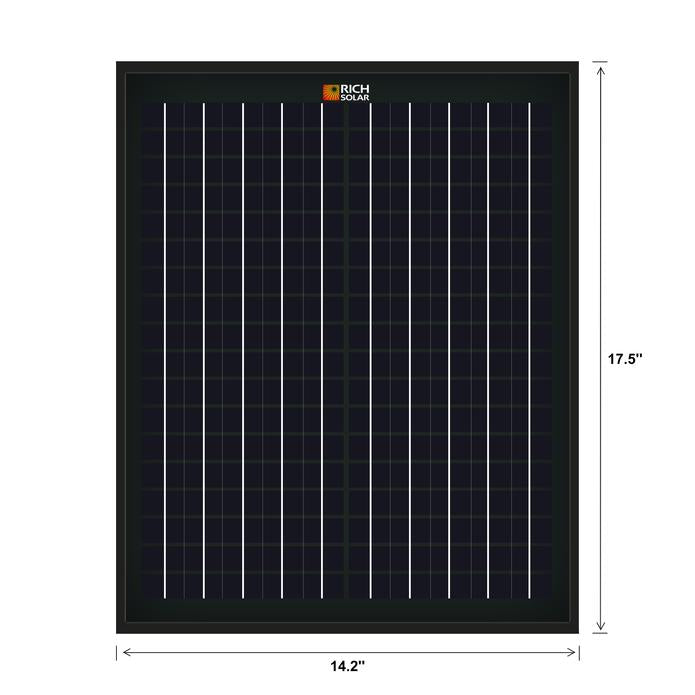

  • Dimensions: 17.5 x 14.2 x 1.0 in
